Brand: DESTACO

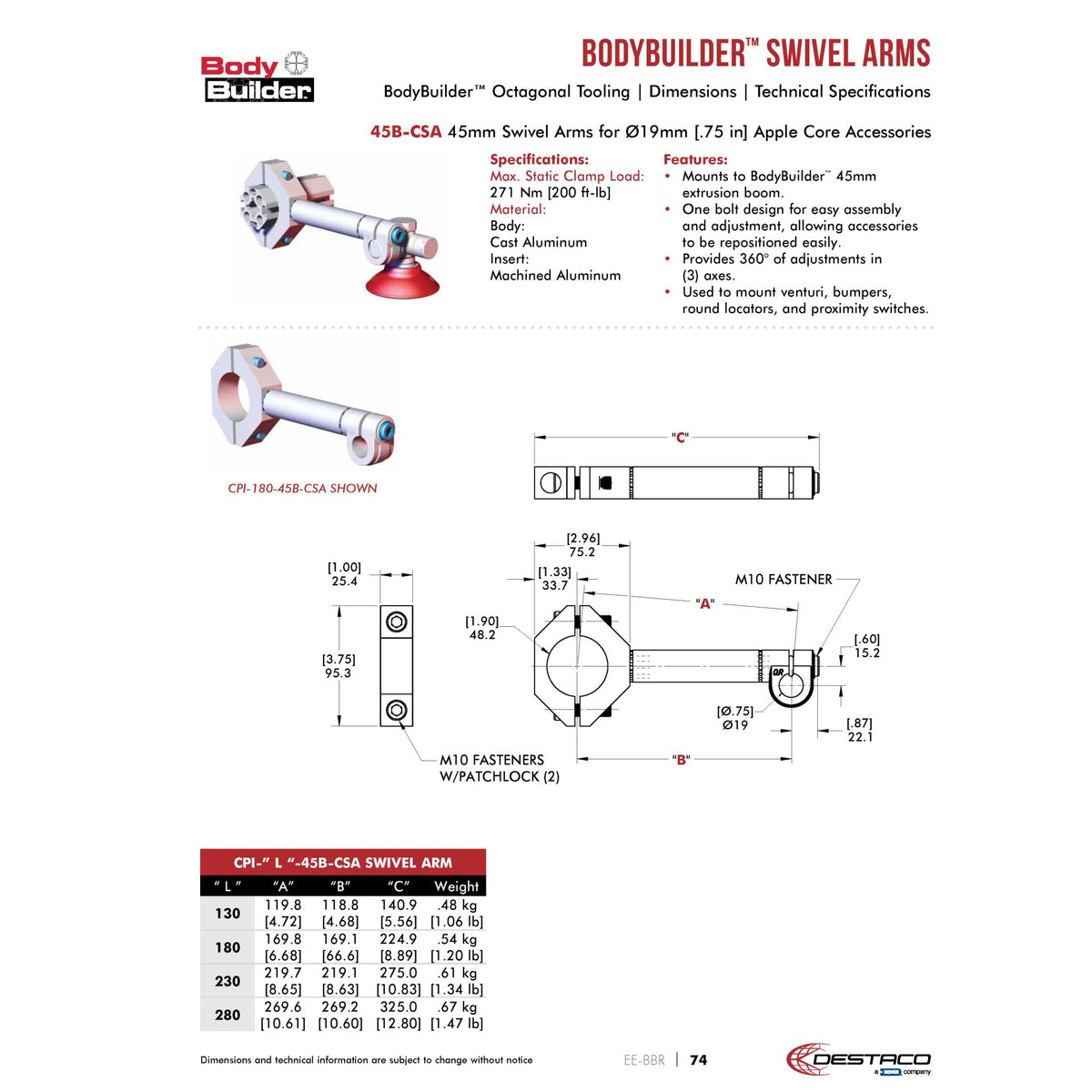

DESTACO CPI-280-45B-CSA 45B CLAMP SWIVEL ARM

SKU: DE-STA-CO-CPI-280-45B-CSA
MPN: CPI-280-45B-CSA

$489.51
Unit price per
Save $56.58

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO CPI-280-45B-CSA is a 45B clamp swivel arm designed for mounting venturi, bumpers, round locators, and proximity switches in high-performance automation systems. It connects 19.1 mm (0.75") apple core accessories to a 45 mm (1.77") extrusion boom. Featuring a one-bolt design for easy assembly and repositioning, it allows for 360° adjustments across three axes. The aluminum construction ensures durability, supporting a maximum static clamp load of 271 Nm (200 ft-lb). With a length of 269.6 mm (10.610") and compatibility with 45B tubes, this swivel arm provides precision and versatility for a variety of industrial applications.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-280-45B-CSA 45B CLAMP SWIVEL ARM

Use the swivel arm to mount venturi, bumpers, round locators, and proximity switches. One bolt design for easy assembly and adjustment, allowing accessories to be repositioned easily. Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Mounts 19mm (0.75") apple core to BodyBuilder 45 mm extrusion boom
One bolt design for easy assembly and adjustment, allowing accessories to be repositioned easily
Provides 360° of adjustments in (3) axes
Used to mount venturi, bumpers, round locators, and proximity switches

Apple Core (mm)	19.1
Apple Core (in)	0.750
Tube Diameter (mm)	45
Tube Diameter (in)	1.77
Length (mm)	269.6
Length (in)	10.610
Material	Aluminum
Maximum Static Clamp Load (Nm)	271
Maximum Static Clamp Load (ft lb)	200
Product Type	Swivel Arm
Tube Size	45B
Weight (kg)	0.67
Weight (lb)	1.50
Product Series Description	Swivel Arm
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	bodybuilder end effector
Apple Core Size	19
