Brand: DESTACO

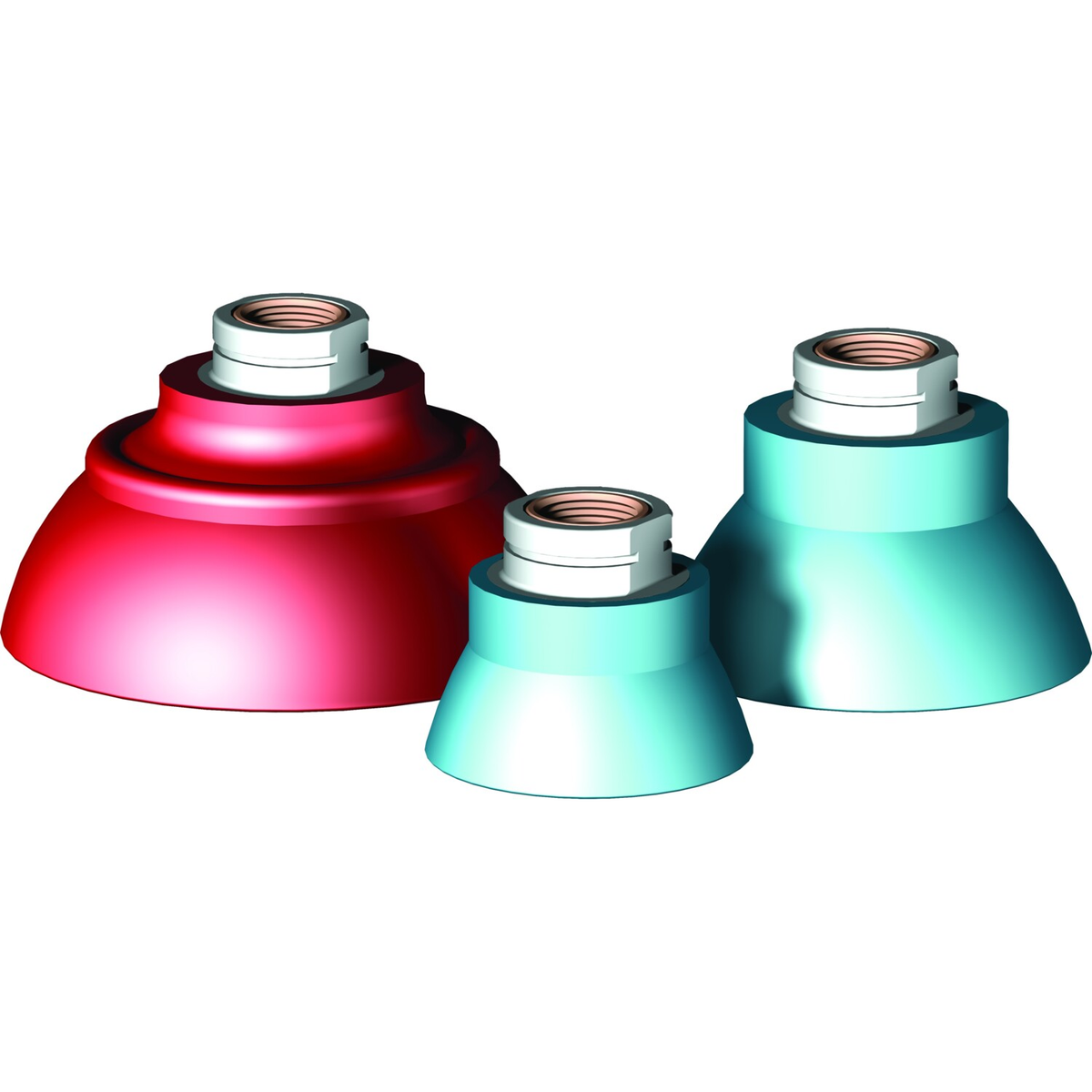

DESTACO CPI-20DD-B-45 Round Deepdish Vacuum Cups, 2 in. B-Mt Red
SKU: DE-STA-CO-CPI-20DD-B-45
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order.**
The DESTACO CPI-20DD-B-45 Round Deepdish Vacuum Cups, 2 in. B-Mt Red provides the contact surface between a vacuum handling system and the workpiece. It is made from nitrile. Key specifications include diameter (in): 2, shape: Round, durometer: 45 (Red). This model belongs to DESTACO’s Vacuum Handling family and Vacuum Products Vacuum Cups product group. Review the specifications below when selecting components for your tooling layout.
Product Specifications
| Brand | DESTACO |
|---|---|
| Part Number | CPI-20DD-B-45 |
| Product Family | Vacuum Handling |
| Product Group | Vacuum Products Vacuum Cups |
| Product Type | Deepdish Cup |
| Product Application | HANDLING |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Weight (oz) | 1.4 |
| Weight (g) | 40 |
| Durometer | 45 (Red) |
| Shape | Round |
| Diameter (in) | 2 |
| Holding Capacity - Horizontal Dry (lbf) | 9 |
| Holding Capacity - Horizontal Wet (lbf) | 7 |
| Holding Capacity - Vertical Lift (lbf) | 12 |
| Cup Size | 2.00 in |
| Holding Capacity - Horizontal Dry (kg) | 4.1 |
| Holding Capacity - Horizontal Wet (kg) | 3.2 |
| Material | Nitrile |
| Weight (lb) | 0.0875 |
