Brand: DESTACO

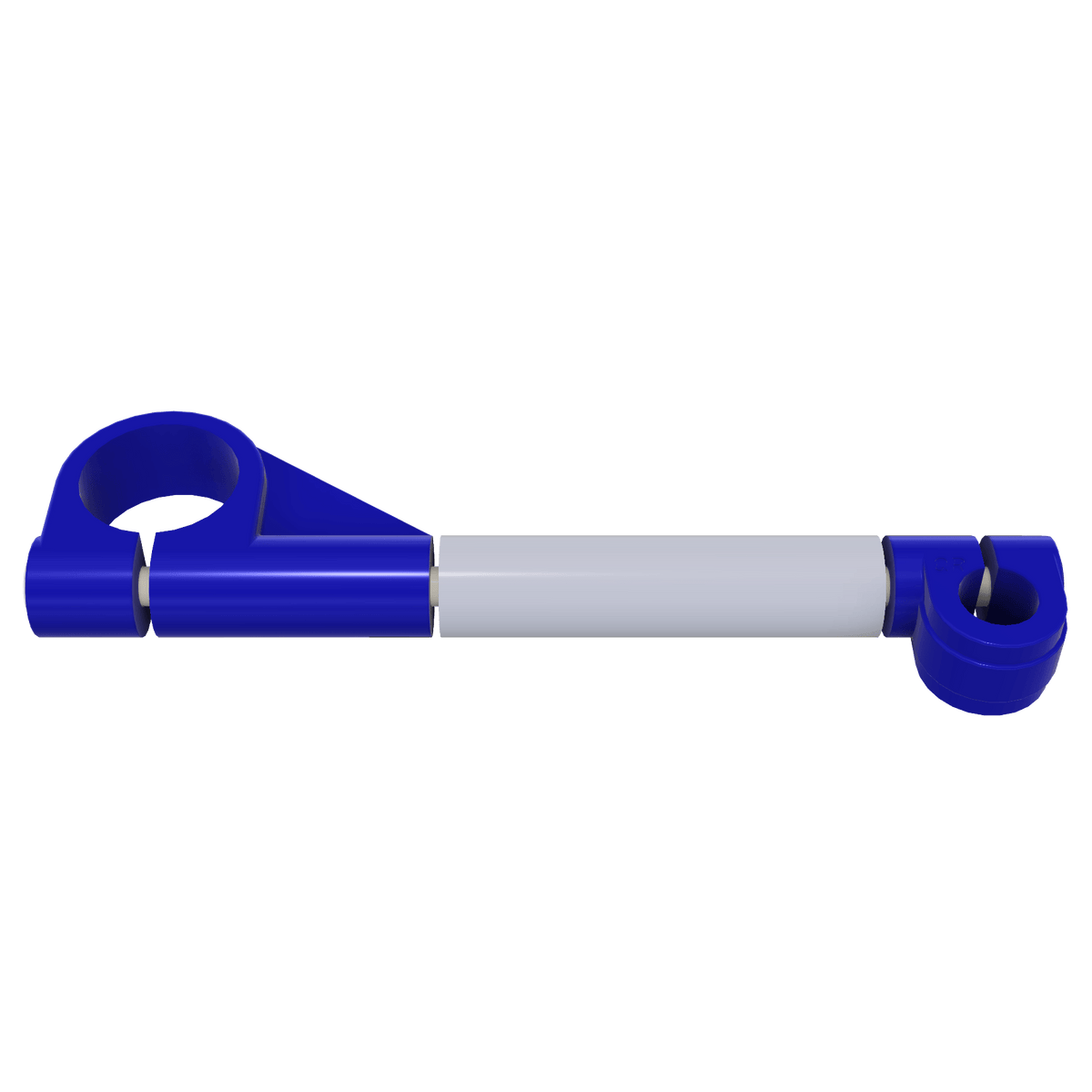

DESTACO CPI-200-40-SA SWIVEL ARM 40MM - BLUE
SKU: DE-STA-CO-CPI-200-40-SA
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CPI-200-40-SA Swivel Arm offers 360° rotational adjustments along three axes, enabling precise positioning for venturi, bumpers, round locators, and proximity switches. It mounts 19.1 mm (0.75") apple core accessories onto a 40 mm (1.57") round tube for seamless integration with various systems. Constructed from durable aluminum with a sleek blue finish, it supports up to 271 Nm (200 ft-lbs) of static load. With a length of 209.8 mm (8.260 inches), this swivel arm delivers robustness and versatility, making it an excellent choice for automation, containment, and workholding applications in demanding industrial settings.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-200-40-SA SWIVEL ARM 40MM - BLUE
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts 19.1 mm (0.75") apple core accessories to 40 mm round tube
- Provides 360° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
Apple Core (mm) | 19.0 |
Apple Core (in) | 0.750 |
Tube Diameter (mm) | 40 |
Tube Diameter (in) | 1.57 |
Length (mm) | 209.8 |
Length (in) | 8.260 |
Material | Aluminum |
Finish | Blue |
Maximum Static Clamp Load (Nm) | 271 |
Maximum Static Clamp Load (ft lb) | 200 |
Product Type | Swivel Arm |
Tube Size | 40 mm |
Weight (kg) | 0.55 |
Weight (lb) | 1.20 |
Product Series Description | Swivel Arm |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | round tooling |
Apple Core Size | 19 |
