DESTACO CPI-200-30B50-MSA MICROTOOLING SWIVEL ARM - 30BB TP 1/2

Brand: DESTACO

DESTACO CPI-200-30B50-MSA MICROTOOLING SWIVEL ARM - 30BB TP 1/2"

SKU: DE-STA-CO-CPI-200-30B50-MSA
MPN: CPI-200-30B50-MSA

  • $253.25
    Unit price per
  • Save $29.27
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO CPI-200-30B50-MSA Microtooling Swivel Arm provides 360° rotational adjustments along three axes, ensuring precise positioning for venturi, bumpers, round locators, and proximity switches. It mounts 12.7 mm (0.50") apple core accessories onto a 30 mm (1.18") BodyBuilder extrusion boom. Featuring a one-bolt design, it allows for quick assembly and easy repositioning of accessories. Made from durable aluminum, it supports up to 102 Nm (75 ft-lbs) of static load. With a compact length of 59.8 mm (2.350 inches), this swivel arm is ideal for automation, workholding, and containment applications, delivering reliable performance and flexibility in demanding environments.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

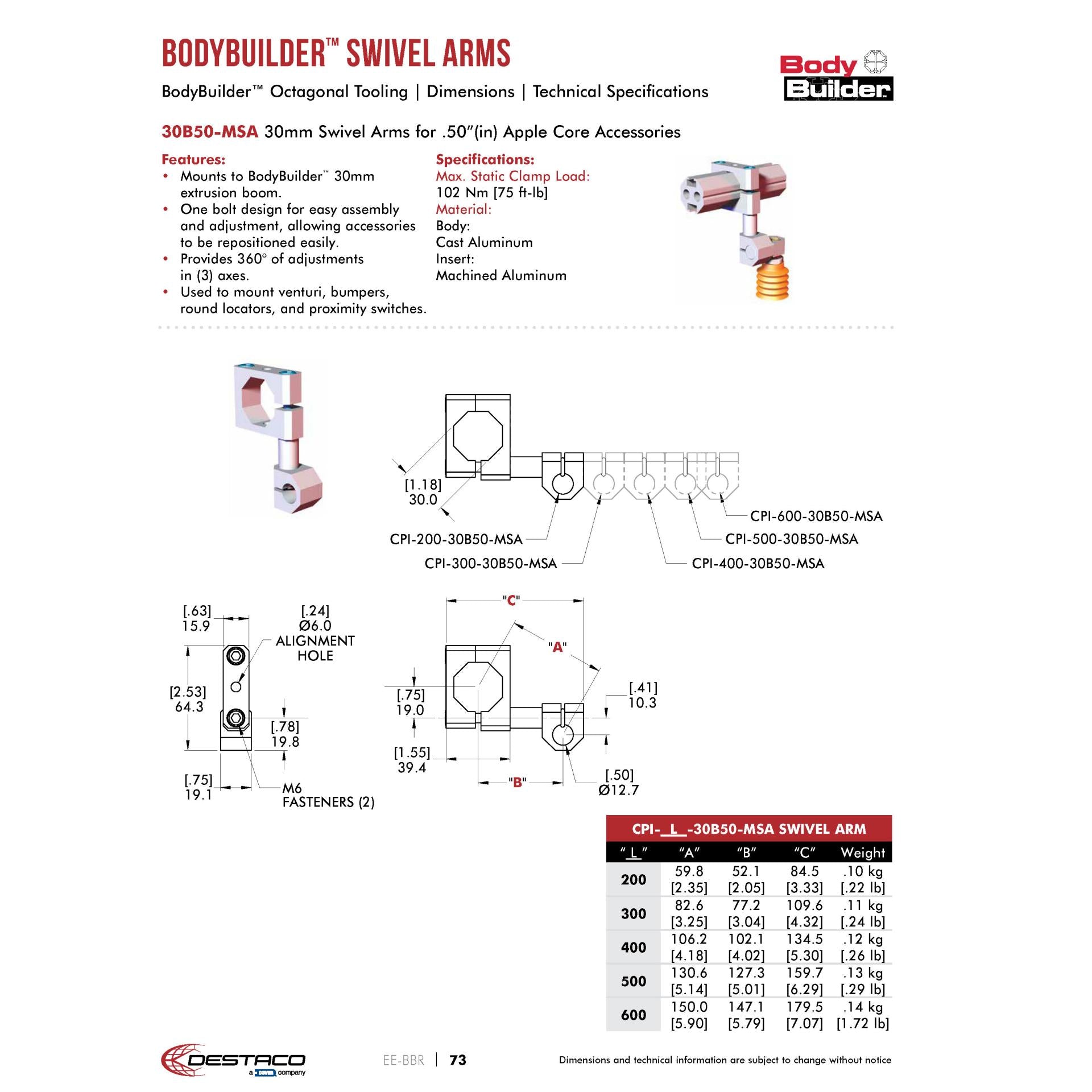

Full Description

DESTACO CPI-200-30B50-MSA MICROTOOLING SWIVEL ARM - 30BB TP 1/2"

Use the swivel arm to mount venturi, bumpers, round locators, and proximity switches. One bolt design for easy assembly and adjustment, allowing accessories to be repositioned easily. Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

  • Mounts 0.50" apple core to BodyBuilder 30mm extrusion boom
  • One bolt design for easy assembly and adjustment, allowing accessories to be repositioned easily
  • Provides 360° of adjustments in (3) axes
  • Used to mount venturi, bumpers, round locators, and proximity switches
Apple Core (mm) 12.7
Apple Core (in) 0.500
Tube Diameter (mm) 30
Tube Diameter (in) 1.18
Length (mm) 59.8
Length (in) 2.350
Material Aluminum
Maximum Static Clamp Load (Nm) 102
Maximum Static Clamp Load (ft lb) 75
Product Type Swivel Arm
Tube Size 30B
Weight (kg) 0.10
Weight (lb) 0.20
Product Series Description Swivel Arm
Product Function Robotic Tooling
Product Family End Effectors
Product Group bodybuilder end effector
Apple Core Size 12.7
