Brand: DESTACO

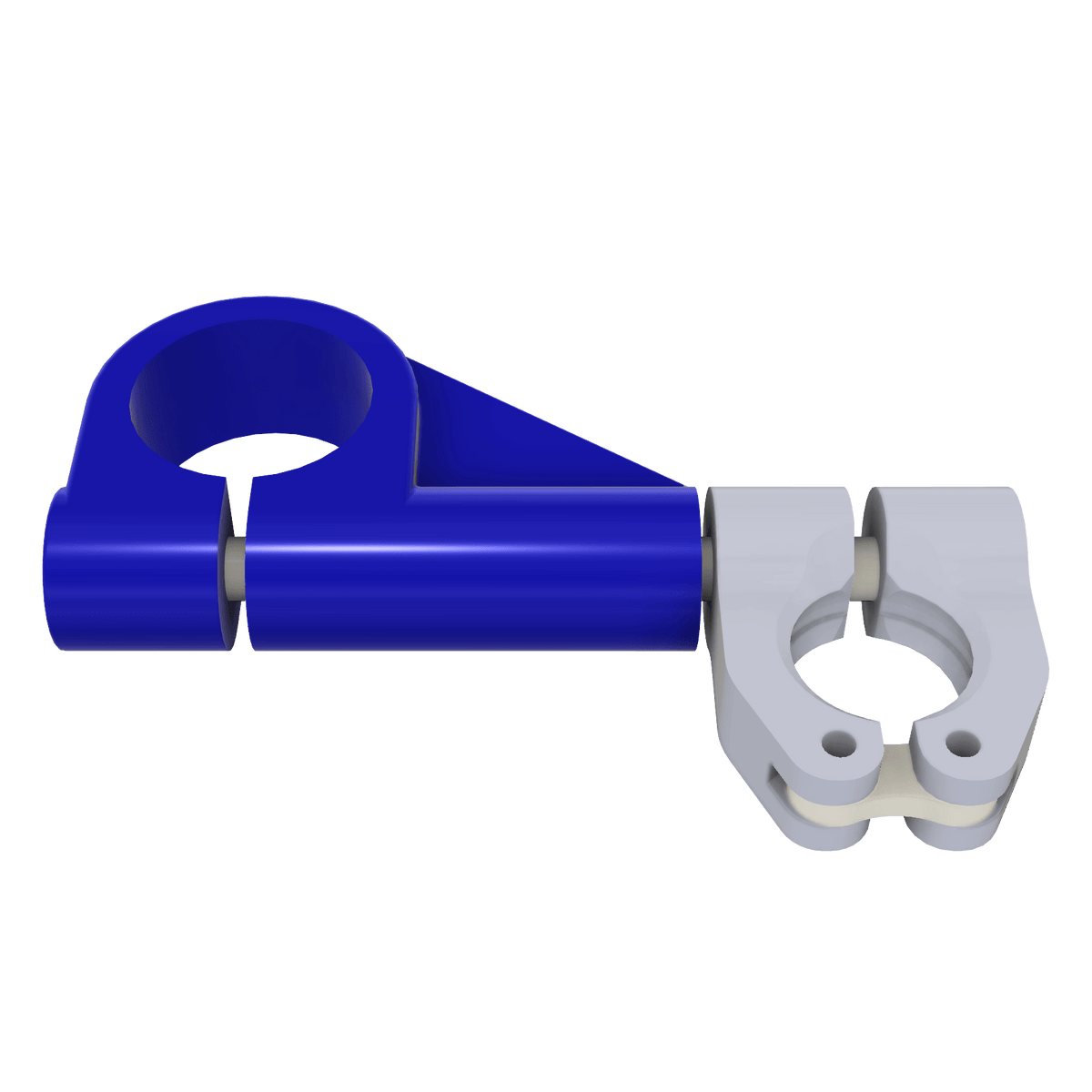

DESTACO CPI-200-25-SA-B112 BALL END SWIVEL ARM 25MM SERIES

SKU: DE-STA-CO-CPI-200-25-SA-B112
MPN: CPI-200-25-SA-B112

$96.80
Unit price per
Save $11.19

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO CPI-200-25-SA-B112 Ball End Swivel Arm offers 360° rotational adjustments along three axes, allowing for precise positioning of venturi, bumpers, round locators, and proximity switches. It mounts 28.6 mm (1.125") swivel ball accessories onto a 25 mm (0.98") round tube, providing compatibility with a wide range of systems. Made from durable aluminum with a blue finish, it supports up to 271 Nm (200 ft-lbs) of static load. With a length of 213.5 mm (8.400 inches), this swivel arm is both compact and robust, ideal for high-performance automation, containment, and workholding applications. It ensures reliable, flexible operation in demanding industrial environments.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-200-25-SA-B112 BALL END SWIVEL ARM 25MM SERIES

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Mounts 28.6 mm (1.125") swivel ball accessories to 25 mm round tube
Provides 360° of rotational adjustments along (3) axes
Used to mount venturi, bumpers, round locators, and proximity switches

Tube Diameter (mm)	25
Tube Diameter (in)	0.98
Length (mm)	213.5
Length (in)	8.400
Material	Aluminum
Finish	Blue
Maximum Static Clamp Load (Nm)	271
Maximum Static Clamp Load (ft lb)	200
Product Type	Swivel Arm
Tube Size	25 mm
Weight (kg)	0.53
Weight (lb)	1.17
Product Series Description	Swivel Arm
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	round tooling
