Brand: DESTACO
DESTACO CPI-140-40-SA SWIVEL ARM 40MM - BLUE
SKU: DE-STA-CO-CPI-140-40-SA
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the ultimate in high-performance automation, workholding, and containment solutions with the DESTACO CPI-140-40-SA SWIVEL ARM 40MM - BLUE. This innovative product allows for seamless mounting of 19.1mm (0.75") apple core accessories to 40mm round tubes, providing 360 degrees of rotational adjustments along 3 axes. Perfect for mounting venturi, bumpers, round locators, and proximity switches, this product is a must-have for any industrial setting. Don't settle for less - choose DESTACO for all your automation needs!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description

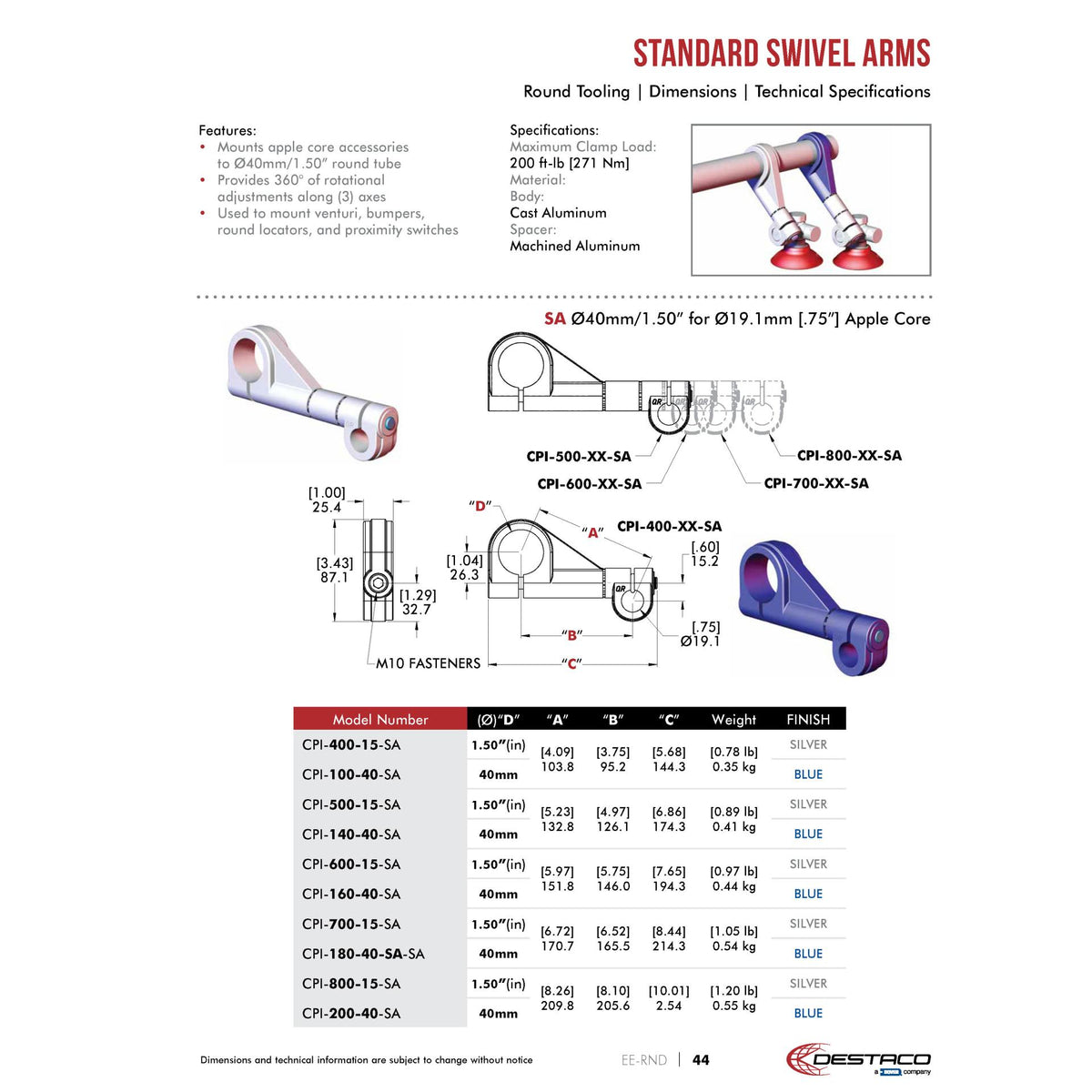

DESTACO CPI-140-40-SA SWIVEL ARM 40MM - BLUE
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts 19.1 mm (0.75") apple core accessories to 40 mm round tube
- Provides 360° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
| Apple Core (mm) | 19.0 |
| Apple Core (in) | 0.750 |
| Tube Diameter (mm) | 40 |
| Tube Diameter (in) | 1.57 |
| Length (mm) | 132.8 |
| Length (in) | 5.230 |
| Material | Aluminum |
| Finish | Blue |
| Maximum Static Clamp Load (Nm) | 271 |
| Maximum Static Clamp Load (ft lb) | 200 |
| Product Type | Swivel Arm |
| Tube Size | 40 mm |
| Weight (kg) | 0.41 |
| Weight (lb) | 0.89 |
| Product Series Description | Swivel Arm |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
| Apple Core Size | 19 |
