Brand: DESTACO

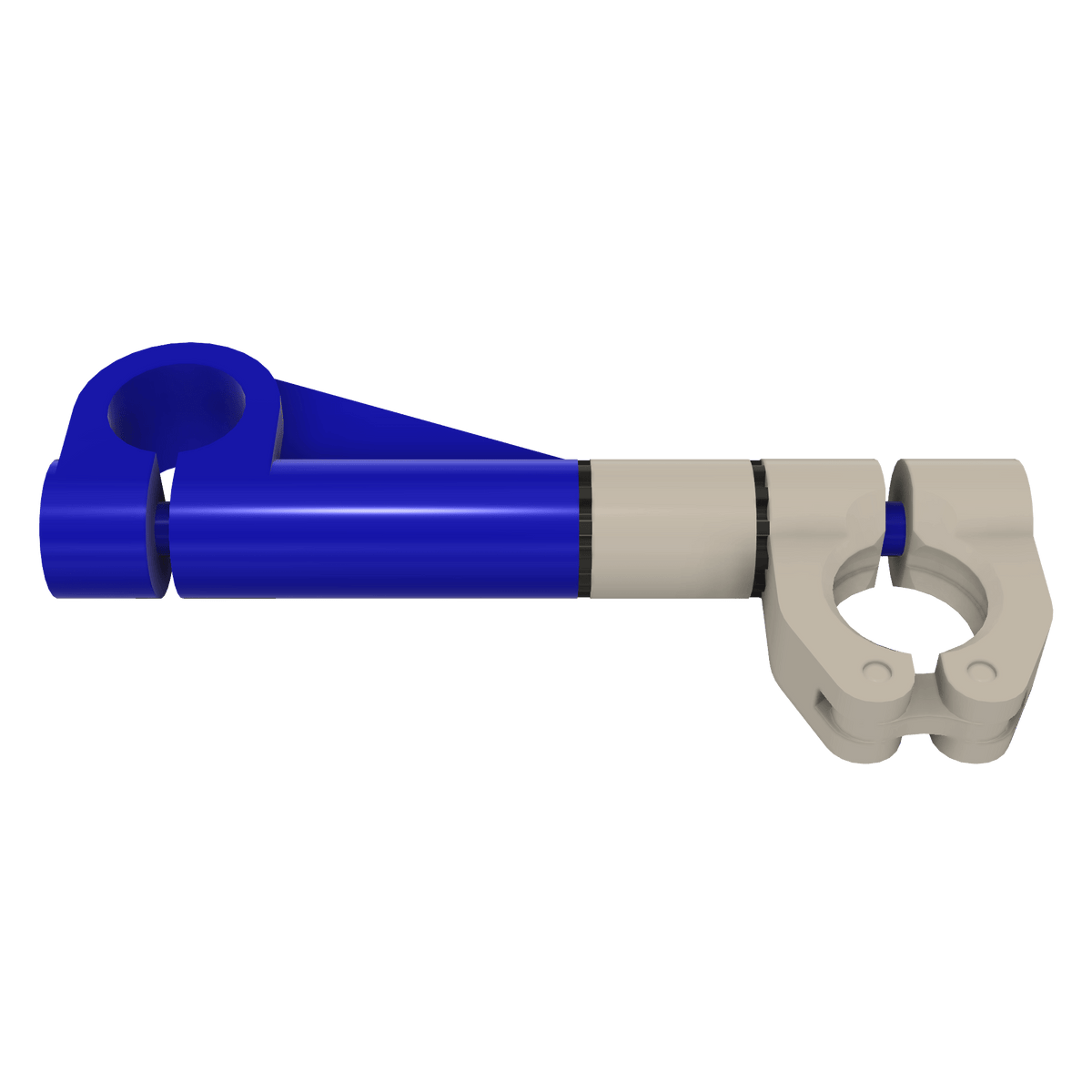

DESTACO CPI-140-25-SA-B112 BALL END SWIVEL ARM 25MM SERIES
SKU: DE-STA-CO-CPI-140-25-SA-B112
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO CPI-140-25-SA-B112 BALL END SWIVEL ARM 25MM SERIES - the ultimate solution for high-performance automation, workholding, and containment needs! Unleash the power of this premium product from Destaco and elevate your production to new heights!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-140-25-SA-B112 BALL END SWIVEL ARM 25MM SERIES
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts 28.6 mm (1.125") swivel ball accessories to 25 mm round tube
- Provides 360° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
| Tube Diameter (mm) | 25 |
| Tube Diameter (in) | 0.98 |
| Length (mm) | 136.3 |
| Length (in) | 5.370 |
| Material | Aluminum |
| Finish | Blue |
| Maximum Static Clamp Load (Nm) | 271 |
| Maximum Static Clamp Load (ft lb) | 200 |
| Product Type | Swivel Arm |
| Tube Size | 25 mm |
| Weight (kg) | 0.39 |
| Weight (lb) | 0.86 |
| Product Series Description | Swivel Arm |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
