Brand: DESTACO

DESTACO CPI-130-45B-CSA 45B CLAMP SWIVEL ARM

SKU: DE-STA-CO-CPI-130-45B-CSA
MPN: CPI-130-45B-CSA

$433.92
Unit price per
Save $50.16

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Enhance your automation, workholding, and containment solutions with DESTACO CPI-130-45B-CSA 45B CLAMP SWIVEL ARM. Use the swivel arm to easily mount venturi, bumpers, round locators, and proximity switches for optimized performance. With a simple one bolt design, you can effortlessly assemble and adjust the arm, allowing for quick repositioning of accessories. Experience 360 degrees of adjustment in (3) axes for versatile applications. Take advantage of this useful tool to securely mount venturi, bumpers, round locators, and proximity switches for a seamless and efficient workflow.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

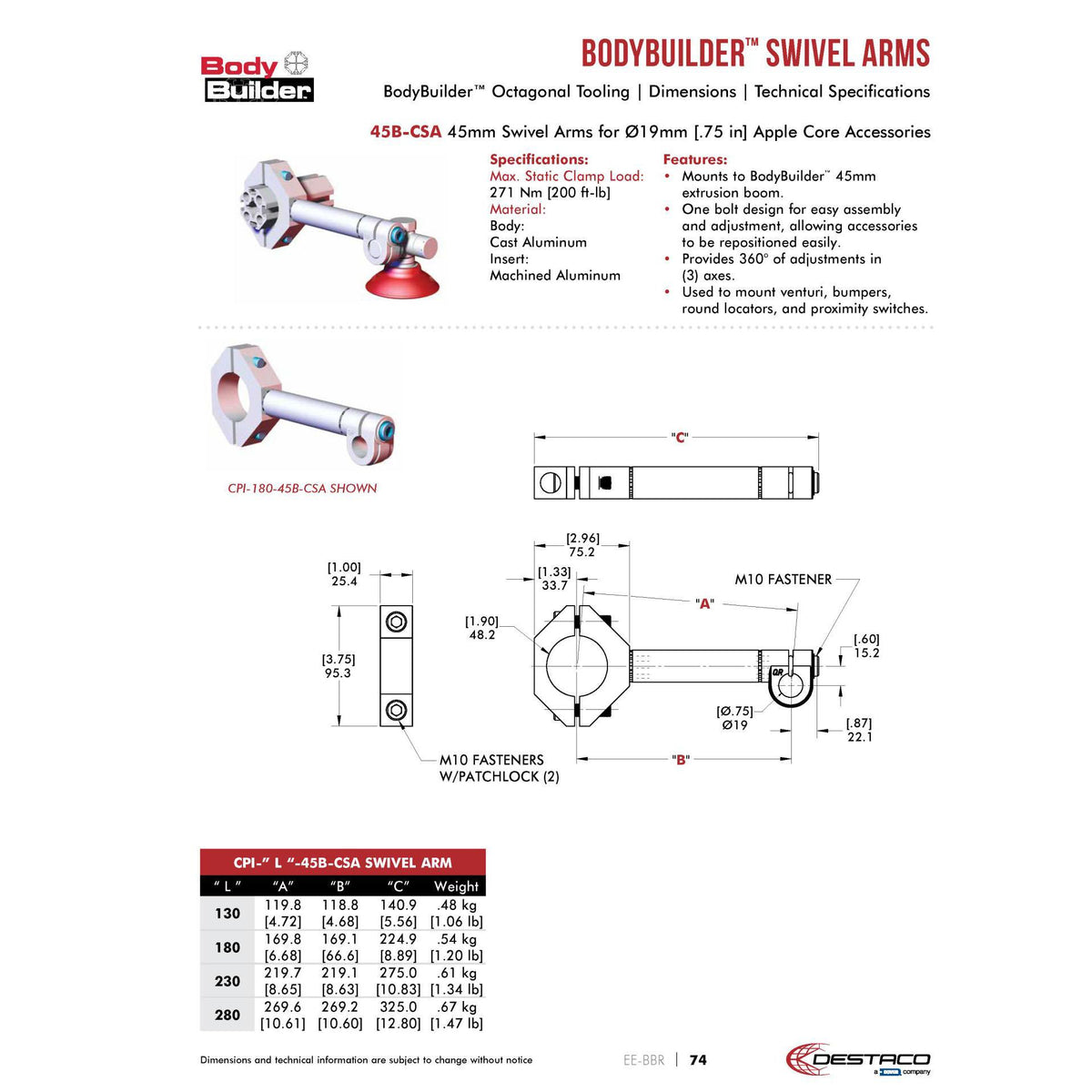

DESTACO CPI-130-45B-CSA 45B CLAMP SWIVEL ARM

Use the swivel arm to mount venturi, bumpers, round locators, and proximity switches. One bolt design for easy assembly and adjustment, allowing accessories to be repositioned easily. Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Mounts 19mm (0.75") apple core to BodyBuilder 45 mm extrusion boom
One bolt design for easy assembly and adjustment, allowing accessories to be repositioned easily
Provides 360° of adjustments in (3) axes
Used to mount venturi, bumpers, round locators, and proximity switches

Apple Core (mm)	19.1
Apple Core (in)	0.750
Tube Diameter (mm)	45
Tube Diameter (in)	1.77
Length (mm)	119.8
Length (in)	4.720
Material	Aluminum
Maximum Static Clamp Load (Nm)	271
Maximum Static Clamp Load (ft lb)	200
Product Type	Swivel Arm
Tube Size	45B
Weight (kg)	0.48
Weight (lb)	1.10
Product Series Description	Swivel Arm
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	bodybuilder end effector
Apple Core Size	19
