Brand: DESTACO

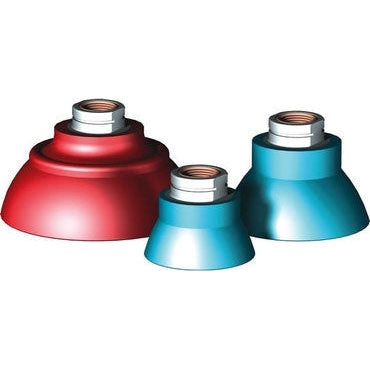

DESTACO CPI-100DM-B-45 CUP DD 4in. 100MM G3/8 MT RED

SKU: DE-STA-CO-CPI-100DM-B-45
MPN: CPI-100DM-B-45

  • $39.82
    Unit price per
  • Save $4.59
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Introducing the DESTACO CPI-100DM-B-45 CUP DD 4in. 100MM G3/8 MT RED Deep Dish Cups - the perfect solution for highly contoured parts! Crafted with thin, flexible side walls, these cups offer exceptional holding capacity and vertical lift capabilities, with a maximum of 16kg (35 lbf). Made with durable nitrile material and featuring a vibrant red color, these cups exude confidence and power in any workholding or containment situation. Weighing only 96 grams (3.4 ounces), with a 101.6mm (4 inch) diameter, these cups are built for high-performance automation. Upgrade your workholding arsenal with the CPI-100DM-B-45 CUP DD 4in. 100MM G3/8 MT RED today!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO CPI-100DM-B-45 CUP DD 4in. 100MM G3/8 MT RED

Deep Dish Cups have thin, deep side walls that are very flexible for highly contoured parts Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Holding Capacity - Vertical Lift (kg) 16
Holding Capacity - Vertical Lift (lbf) 35
Weight (g) 96.0
Weight (oz) 3.4
Diameter (mm) 101.6
Diameter (in) 4.000
Material Nitrile
Durometer 45 (Red)
Mount 3/8 G
Temperature Range 15-59 Sec: -20° to 250°F (-29° to 121°C)
1-5 Min: 15° to 180°C (-9° to 82°C)
Chemical Resistance Oil, water, grease, hydraulic fluid, alcohol
Shape Round
Product Type Deepdish
Cup Size 100 mm
Cup Size 3.94 in
Product Series Description Nitrile Rubber
Product Function Robotic Tooling
Product Family End Effectors
Product Group vacuum cups
