Brand: DESTACO

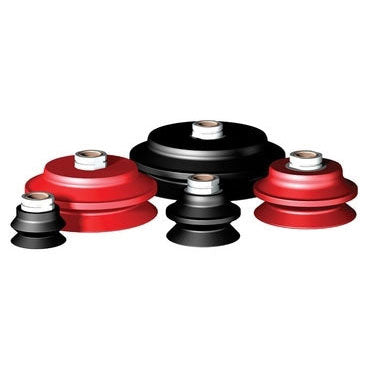

DESTACO CPI-100BT-B-60 CUP BEL 100MM G 3/8 MT BLACK
SKU: DE-STA-CO-CPI-100BT-B-60
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the power of DESTACO CPI-100BT-B-60 CUP BEL 100MM G 3/8 MT BLACK, the ultimate solution for achieving maximum productivity and efficiency. Perfect for moderately flat, dry surfaces, these single bellows vacuum cups are a must-have for any high-performance automation, workholding, and containment needs. With an impressive holding capacity of up to 40kg in vertical lift and 15kg in horizontal dry conditions, these vacuum cups are designed to handle even the most demanding tasks. Upgrade your equipment today with DESTACO and see the difference for yourself!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-100BT-B-60 CUP BEL 100MM G 3/8 MT BLACK
General purpose single bellows vacuum cups best used on moderatly flat, dry surfaces Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Moderate compression distance allows for minor misalignments
| Holding Capacity - Horizontal Dry (kg) | 15.0 |
| Holding Capacity - Horizontal Dry (lbf) | 33.0 |
| Holding Capacity - Horizontal Wet (kg) | 3.6 |
| Holding Capacity - Horizontal Wet (lbf) | 8.0 |
| Holding Capacity - Vertical Lift (kg) | 40 |
| Holding Capacity - Vertical Lift (lbf) | 89 |
| Weight (g) | 159.0 |
| Weight (oz) | 5.6 |
| Diameter (mm) | 102.4 |
| Diameter (in) | 4.030 |
| Material | Nitrile |
| Durometer | 60 (Black) |
| Mount | 3/8 G |
| Temperature Range | 15-59 Sec: -20‚° to 250‚°F (-29‚° to 121‚°C) 1-5 Min: 15‚° to 180‚°C (-9‚° to 82‚°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Bellows |
| Cup Size | 100 mm |
| Cup Size | 3.94 in |
| Product Series Description | Nitrile Rubber |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | vacuum cups |
