Brand: DESTACO

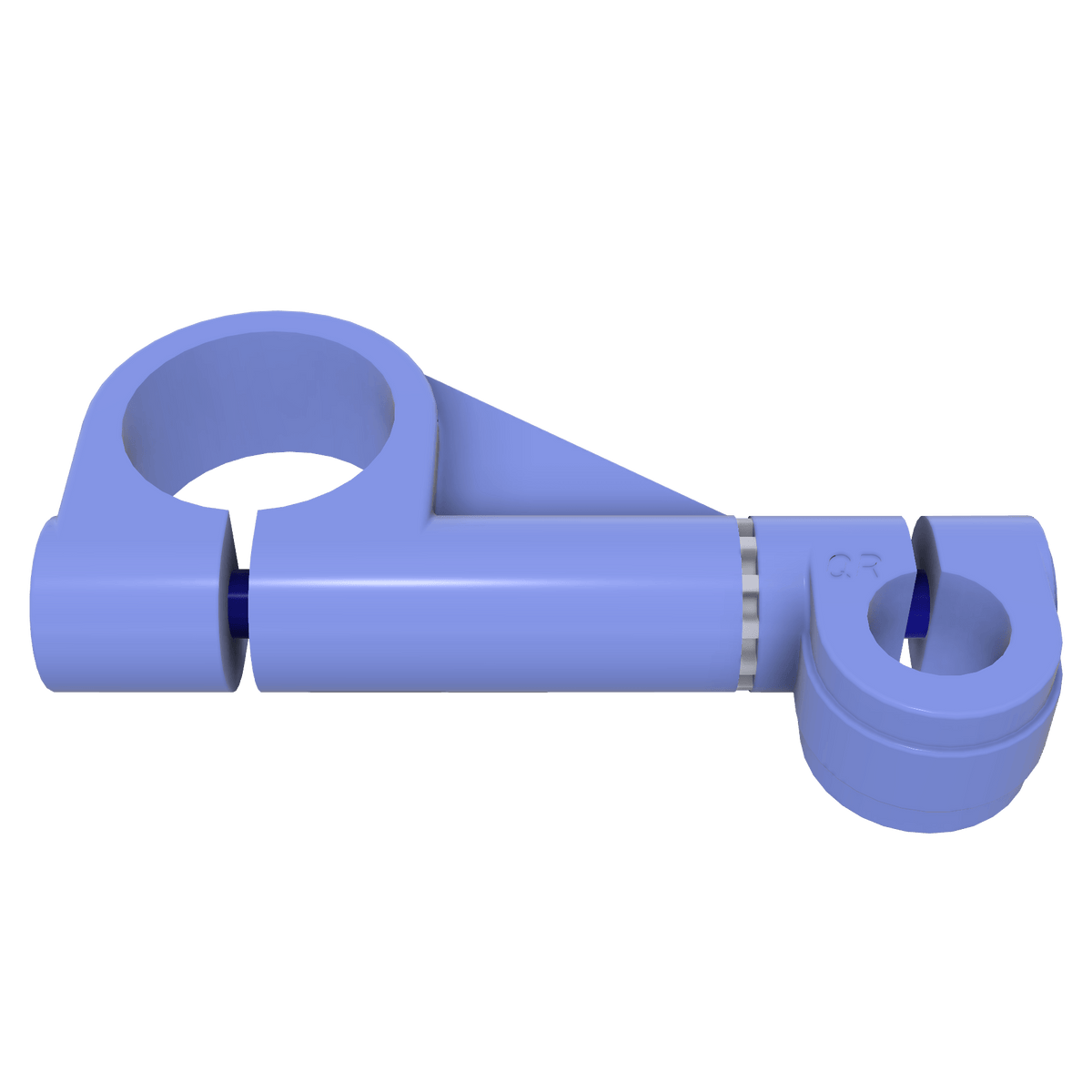

DESTACO CPI-100-40-SA SWIVEL ARM 40MM - BLUE
SKU: DE-STA-CO-CPI-100-40-SA
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO CPI-100-40-SA SWIVEL ARM - the perfect solution for high-performance automation, workholding, and containment! This innovative arm is designed to easily mount various accessories, such as venturi, bumpers, locators, and switches, providing 360-degree rotational adjustments and a stable, secure hold. With a sturdy aluminum construction and a sleek blue finish, this swivel arm is sure to impress and streamline your operations. Don't wait any longer - upgrade to the best swivel arm on the market today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-100-40-SA SWIVEL ARM 40MM - BLUE
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts 19.1 mm (0.75") apple core accessories to 40 mm round tube
- Provides 360° of rotational adjustments along (3) axes
- Used to mount venturi, bumpers, round locators, and proximity switches
| Apple Core (mm) | 19.0 |
| Apple Core (in) | 0.750 |
| Tube Diameter (mm) | 40 |
| Tube Diameter (in) | 1.57 |
| Length (mm) | 103.8 |
| Length (in) | 4.090 |
| Material | Aluminum |
| Finish | Blue |
| Maximum Static Clamp Load (Nm) | 271 |
| Maximum Static Clamp Load (ft lb) | 200 |
| Product Type | Swivel Arm |
| Tube Size | 40 mm |
| Weight (kg) | 0.35 |
| Weight (lb) | 0.78 |
| Product Series Description | Swivel Arm |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | round tooling |
| Apple Core Size | 19 |
