Brand: DESTACO
DESTACO CL-40M-40M-A LWT Cross Clamp 40mm x 40mm
SKU: DE-STA-CO-CL-40M-40M-A
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO CL-40M-40M-A LWT Cross Clamp - the ideal solution for securing two tubes perpendicular to each other. Made from high strength aluminum and featuring a sleek black anodized finish, these cross-clamps are designed for lightweight tooling while still being able to handle a maximum static clamp load of 300 Nm (221 ft lb). Experience the ease and reliability of our CL Clamp Blocks for tube sizes 40 mm x 40 mm.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description

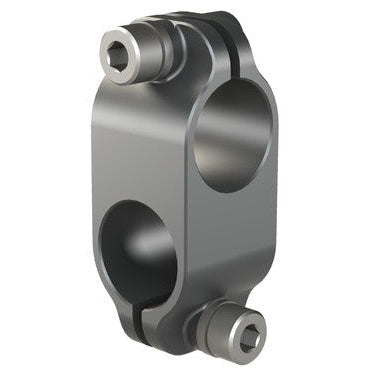

DESTACO CL-40M-40M-A LWT Cross Clamp 40mm x 40mm
Cross-Clamps for Lightweight Tooling
CL Clamp Blocks cross two tubes perpendicular to each other in multiple size options
- Lightweight cross clamp design
- Black anodized finish
- Multiple size combinations available
| Tube Diameter (mm) | 40 |
| Tube Diameter (in) | 1.57 |
| Material | High Strength Aluminum |
| Maximum Static Clamp Load (Nm) | 300 |
| Maximum Static Clamp Load (ft lb) | 221 |
| Product Type | Clamp Block |
| Tube Size | 40 mm / 40 mm |
| Weight (kg) | 0.23 |
| Weight (lb) | 0.51 |
| Product Series Description | Single End Extension |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | lightweight tooling |
| Tube Combinations (mm) | 40 / 40 |
| Tube Combinations (in) | 1.57 / 1.57 |
