Brand: DESTACO

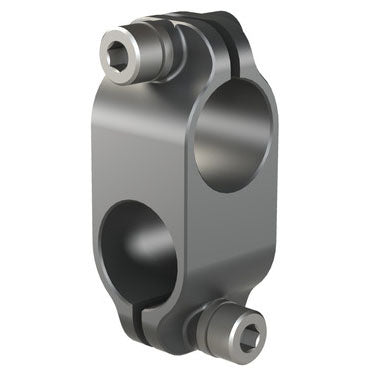

DESTACO CL-40M-25M-A LWT Cross Clamp 40mm x 25mm
SKU: DE-STA-CO-CL-40M-25M-A
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO CL-40M-25M-A cross clamp is designed to securely hold two tubes at 90 degrees with its lightweight design made from high strength aluminum. Its black anodized finish adds to its durability, and it can handle a maximum static clamp load of 300 Nm or 221 ft lb. This versatile clamp block is perfect for tube sizes of 40 mm and 25 mm.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CL-40M-25M-A LWT Cross Clamp 40mm x 25mm
Cross-Clamps for Lightweight Tooling
CL Clamp Blocks cross two tubes perpendicular to each other in multiple size options
- Lightweight cross clamp design
- Black anodized finish
- Multiple size combinations available
| Tube Diameter (mm) | 40, 25 |
| Tube Diameter (in) | 1.57, .98 |
| Material | High Strength Aluminum |
| Maximum Static Clamp Load (Nm) | 300 |
| Maximum Static Clamp Load (ft lb) | 221 |
| Product Type | Clamp Block |
| Tube Size | 40 mm / 25 mm |
| Weight (kg) | 0.21 |
| Weight (lb) | 0.47 |
| Product Series Description | Single End Extension |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | lightweight tooling |
| Tube Combinations (mm) | 40 / 20 |
| Tube Combinations (in) | 1.57 / 0.98 |
