Brand: DESTACO

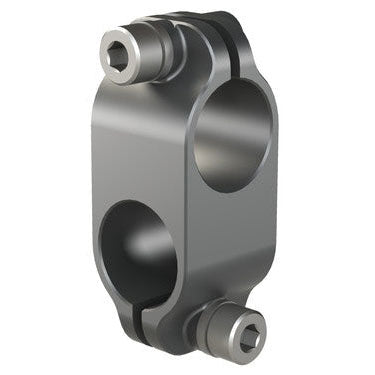

DESTACO CL-25M-25M-A LWT Cross Clamp 25mm x 25mm
SKU: DE-STA-CO-CL-25M-25M-A
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the versatility and strength of DESTACO CL-25M-25M-A LWT Cross Clamp! This revolutionary cross-clamp design allows for easy and secure connection of two tubes, creating an intersecting angle and providing multiple size options. Made with high strength aluminum and a sleek black anodized finish, these cross clamps can handle a maximum static clamp load of up to 150 Nm (or 111 ft lbs). With tube diameter of two 25mm, this clamp block is the perfect addition to your lightweight tooling collection. Get your hands on the tomorrow of clamps today with DESTACO!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CL-25M-25M-A LWT Cross Clamp 25mm x 25mm
Cross-Clamps for Lightweight Tooling
CL Clamp Blocks cross two tubes perpendicular to each other in multiple size options
- Lightweight cross clamp design
- Black anodized finish
- Multiple size combinations available
| Tube Diameter (mm) | 25 |
| Tube Diameter (in) | 0.98 |
| Material | High Strength Aluminum |
| Maximum Static Clamp Load (Nm) | 150 |
| Maximum Static Clamp Load (ft lb) | 111 |
| Product Type | Clamp Block |
| Tube Size | 25 mm / 25 mm |
| Weight (kg) | 0.10 |
| Weight (lb) | 0.22 |
| Product Series Description | Single End Extension |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | lightweight tooling |
| Tube Combinations (mm) | 25 / 25 |
| Tube Combinations (in) | 0.98 / 0.98 |
