Brand: DESTACO

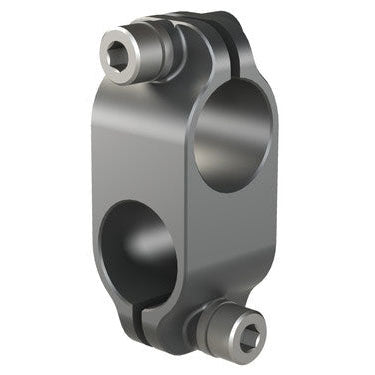

DESTACO CL-20M-20M-A LWT Cross Clamp 20mm x 20mm

SKU: DE-STA-CO-CL-20M-20M-A
MPN: CL-20M-20M-A

$81.74
Unit price per
Save $9.44

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Experience the high-quality performance and versatility of the DESTACO CL-20M-20M-A LWT Cross Clamp 20mm x 20mm. This lightweight cross clamp design, featuring a sleek black anodized finish, is ideal for effortlessly securing two tubes perpendicular to each other. Made with high strength aluminum, this clamp block ensures maximum static clamp load of 150 Nm (111 ft lb). Order now and enhance your lightweight tooling capabilities with the DESTACO Cross Clamp!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CL-20M-20M-A LWT Cross Clamp 20mm x 20mm

Cross-Clamps for Lightweight Tooling

CL Clamp Blocks cross two tubes perpendicular to each other in multiple size options

Lightweight cross clamp design
Black anodized finish
Multiple size combinations available

Tube Diameter (mm)	20
Tube Diameter (in)	0.79
Material	High Strength Aluminum
Maximum Static Clamp Load (Nm)	150
Maximum Static Clamp Load (ft lb)	111
Product Type	Clamp Block
Tube Size	20 mm / 20 mm
Weight (kg)	0.05
Weight (lb)	0.11
Product Series Description	Single End Extension
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	lightweight tooling
Tube Combinations (mm)	20 / 20
Tube Combinations (in)	0.79 / 0.79
