Brand: DESTACO

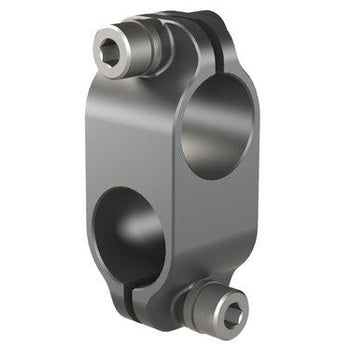

DESTACO CL-15E-15E-A LWT Cross Clamp, 1.5" x 1.5"
SKU: DE-STA-CO-CL-15E-15E-A
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO CL-15E-15E-A LWT Cross Clamp, 1.5" x 1.5"*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CL-15E-15E-A LWT Cross Clamp, 1.5" x 1.5"
Cross-Clamps for Lightweight Tooling
CL Clamp Blocks cross two tubes perpendicular to each other in multiple size options
- Lightweight cross clamp design
- Black anodized finish
- Multiple size combinations available
Tube Diameter (mm) | 38.1 |
Tube Diameter (in) | 1.50 |
Material | High Strength Aluminum |
Maximum Static Clamp Load (Nm) | 300 |
Maximum Static Clamp Load (ft lb) | 221 |
Product Type | Clamp Block |
Tube Size | 1.50 in / 1.50 in |
Weight (kg) | 0.28 |
Weight (lb) | 0.62 |
Product Series Description | Single End Extension |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | lightweight tooling |
Tube Combinations (mm) | 38.1 / 38.1 |
Tube Combinations (in) | 1.50 / 1.50 |
