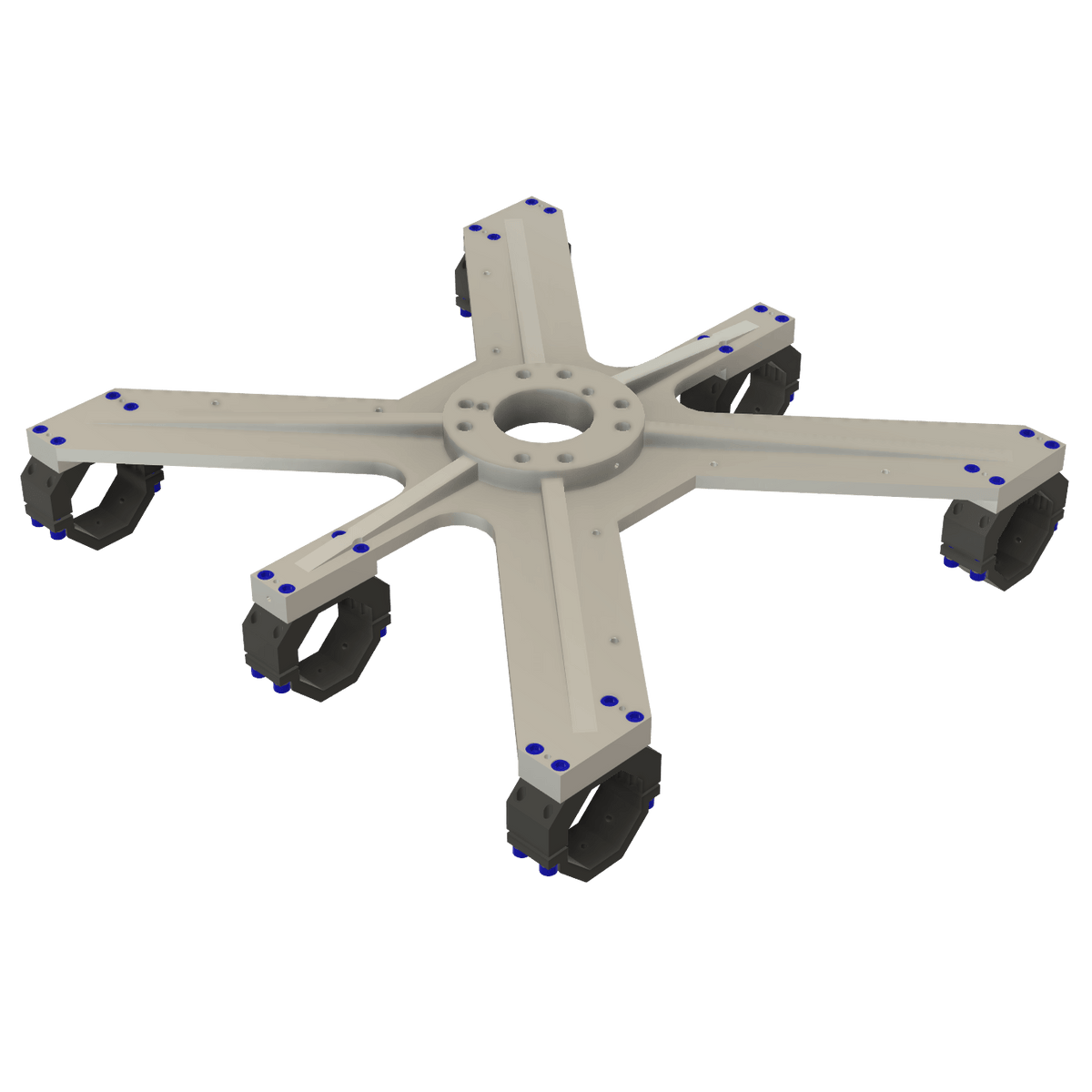

DESTACO BM3-90-R10 Mid Mount Assembly - R10
SKU: DE-STA-CO-BM3-90-R10
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO BM3-90-R10 Mid Mount Assembly provides sturdy clamping for extrusions, ensuring maximum stability for robotic end effectors. Designed as a direct robot interface, these BodyBuilder Heavy Duty Mid-Mounts feature a bolt pattern of R10: 200mm and a 90B tube size. With a maximum static product load of 589.7 kg (1,300 lbs), this assembly is made of durable aluminum and has a length of 750.0 mm (29.530 in) and a width of 738.0 mm (29.060 in). Its robot interface bolt pattern also includes 6 through holes (12.5 mm) and 2 dowel holes (12 mm).
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM3-90-R10 Mid Mount Assembly - R10
BodyBuilder Heavy Duty Mid-Mounts for Extrusion Clamping Robotic End Effectors
- Can be used as a direct robot interface
- Provide robust clamping of each extrusion for maximum stability
- Robot Interface Bolt Pattern R10: 200mm Bolt Circle
| Tube Diameter (mm) | 90 |
| Tube Diameter (in) | 3.54 |
| Length (mm) | 750.0 |
| Length (in) | 29.530 |
| Width (mm) | 738.0 |
| Width (in) | 29.060 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R10: 200mm Bolt Circle |
| Robot Interface Thru Holes (qty/size) (mm) | (6) 12.5 |
| Robot Interface Dowel Holes (qty/size) (mm) | (2) 12 |
| Maximum Static Product Load (kg) | 589.7 |
| Maximum Static Product Load (lb) | 1,300 |
| Product Type | Mid Mount |
| Tube Size | 90B |
| Weight (kg) | 24.10 |
| Weight (lb) | 53.10 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
