Brand: DESTACO

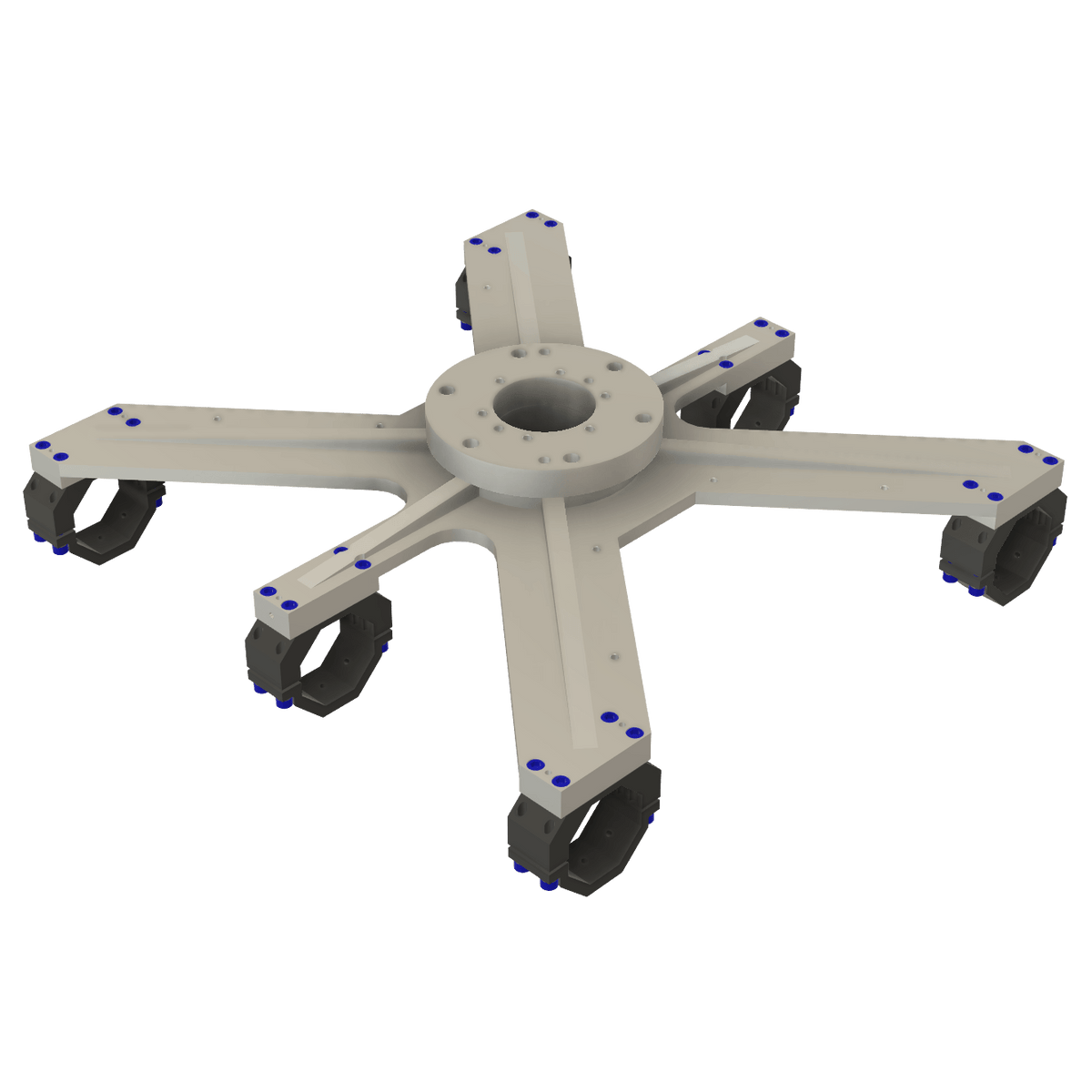

DESTACO BM3-90-R09 Mid Mount Assembly R09

SKU: DE-STA-CO-BM3-90-R09
MPN: BM3-90-R09

$2,906.69
Unit price per
Save $336.01

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO BM3-90-R09 Mid Mount Assembly R09 Catalog offers high-performance automation, workholding, and containment solutions that are both robust and reliable. With a 90mm tube diameter and maximum static load of 589.7kg, this product provides stable clamping of each extrusion, making it an ideal robot interface. Its sleek design and precise bolt pattern (200mm bolt circle) also include insulation and insulation tube diameter for added convenience and security. With a length of 750mm and a width of 738mm, this aluminum assembly is perfect for a variety of automation needs.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO BM3-90-R09 Mid Mount Assembly R09

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Can be used as a direct robot interface
Provide robust clamping of each extrusion for maximum stability
Robot Interface Bolt Pattern R09: 200mm Bolt Circle, Includes Insulation

Tube Diameter (mm)	90
Tube Diameter (in)	3.54
Length (mm)	750.0
Length (in)	29.530
Width (mm)	738.0
Width (in)	29.060
Material	Aluminum
Robot Interface Bolt Pattern	R09: 200mm Bolt Circle, Includes Insulation
Robot Interface Thru Holes (qty/size) (mm)	(6) 20
Robot Interface Dowel Holes (qty/size) (mm)	(2) 15
Maximum Static Product Load (kg)	589.7
Maximum Static Product Load (lb)	1,300
Product Type	Mid Mount
Tube Size	90B
Weight (kg)	24.10
Weight (lb)	53.10
Product Series Description	Automation Adapter
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	bodybuilder end effector
