Brand: DESTACO

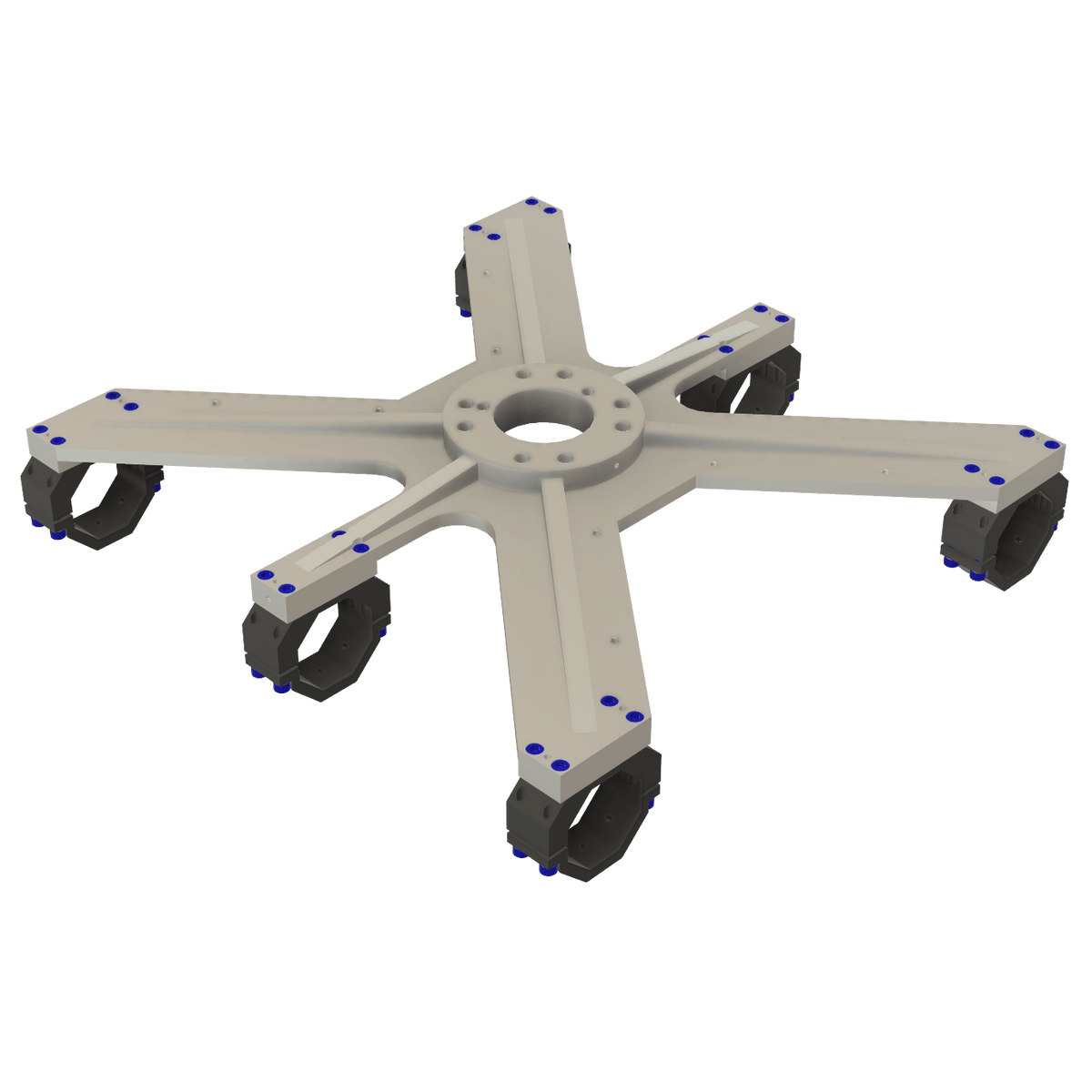

DESTACO BM3-90-R08 Mid Mount Assembly R08
SKU: DE-STA-CO-BM3-90-R08
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Enhance your automation, workholding, and containment needs with the DESTACO BM3-90-R08 Mid Mount Assembly R08. This robust assembly offers a secure clamp for each extrusion, providing maximum stability. Designed for use as a direct robot interface, it boasts a 160mm bolt circle and includes an insulation tube with a diameter of 90mm. With a length of 750mm and a width of 738mm, this aluminum assembly also features (8) 16mm robot interface thru holes on a 160mm bolt circle and (2) 13mm robot interface dowel holes on a 125mm bolt circle. Its maximum static product load capacity is an impressive 589.7kg (1,300lb) and it is specifically designed for use with a 90B tube size. Trust DESTACO to provide high-performance solutions to elevate your operations.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM3-90-R08 Mid Mount Assembly R08
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Can be used as a direct robot interface
- Provide robust clamping of each extrusion for maximum stability
- Robot Interface Bolt Pattern R08: 160mm Bolt Circle, Includes Insulation
Tube Diameter (mm) | 90 |
Tube Diameter (in) | 3.54 |
Length (mm) | 750.0 |
Length (in) | 29.530 |
Width (mm) | 738.0 |
Width (in) | 29.060 |
Material | Aluminum |
Robot Interface Bolt Pattern | R08: 160mm Bolt Circle, Includes Insulation |
Robot Interface Thru Holes (qty/size) (mm) | (8) 16 on 160mm BC |
Robot Interface Dowel Holes (qty/size) (mm) | (2) 13 on 125mm BC |
Maximum Static Product Load (kg) | 589.7 |
Maximum Static Product Load (lb) | 1,300 |
Product Type | Mid Mount |
Tube Size | 90B |
Weight (kg) | 24.10 |
Weight (lb) | 53.10 |
Product Series Description | Automation Adapter |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | bodybuilder end effector |
