Brand: DESTACO

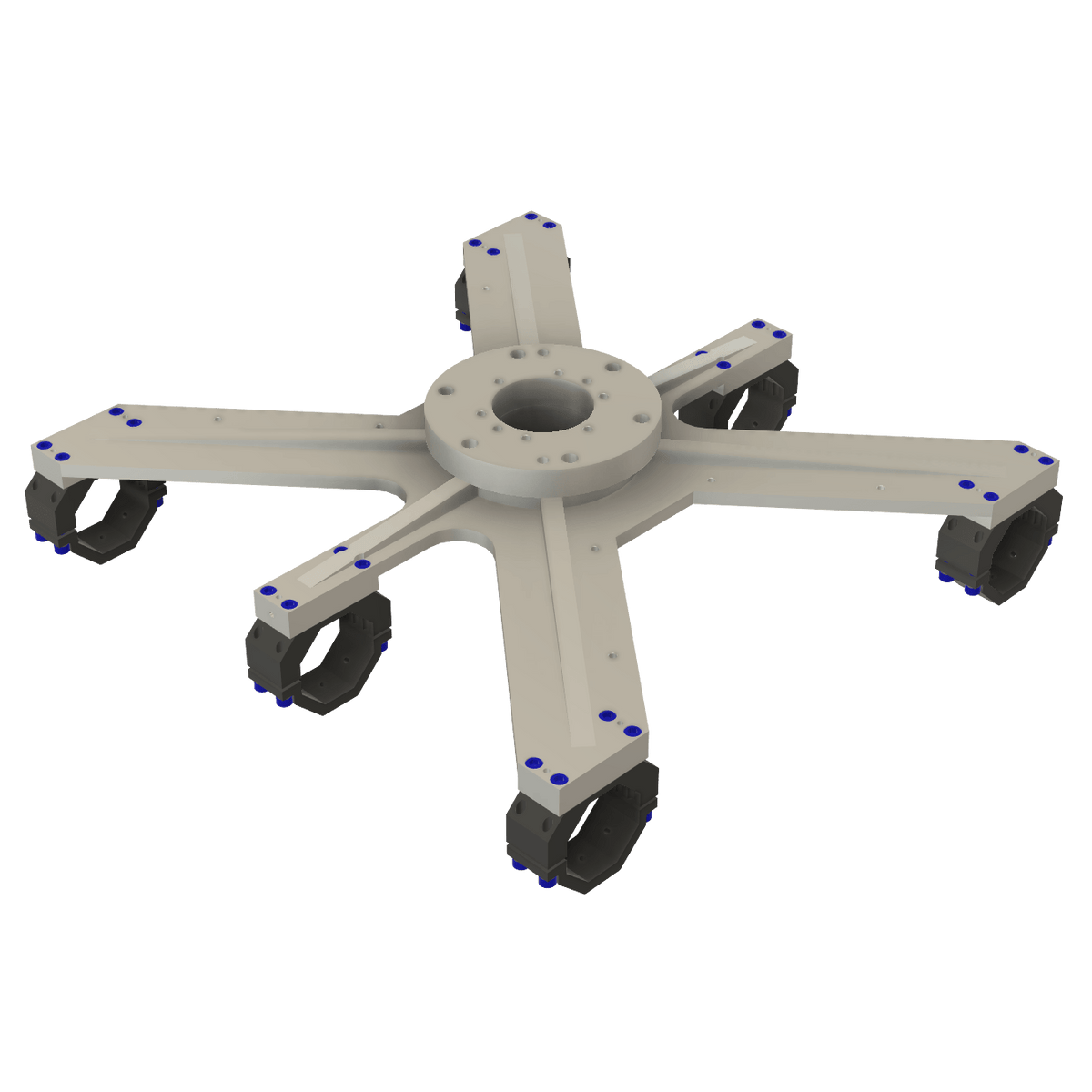

DESTACO BM3-90-R07 Mid Mount Assembly
SKU: DE-STA-CO-BM3-90-R07
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the ultimate in high-performance automation and containment solutions with the DESTACO BM3-90-R07 Mid Mount Assembly Catalog. This versatile assembly can be directly attached to robots for robust clamping of each extrusion, providing maximum stability and precision. With a 90mm tube diameter and a length of 29.530 inches, this assembly is perfect for a variety of industrial applications. The aluminum material and bolt pattern of 200mm in diameter make it durable and easy to use. With a maximum static product load of 1300 pounds, this mid mount assembly is the perfect solution for your automation needs.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM3-90-R07 Mid Mount Assembly
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Can be used as a direct robot interface
- Provide robust clamping of each extrusion for maximum stability
- Robot Interface Bolt Pattern R07: 200mm Bolt Circle
| Tube Diameter (mm) | 90 |
| Tube Diameter (in) | 3.54 |
| Length (mm) | 750.0 |
| Length (in) | 29.530 |
| Width (mm) | 738.0 |
| Width (in) | 29.060 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R07: 200mm Bolt Circle |
| Robot Interface Thru Holes (qty/size) (mm) | (6) 13 |
| Robot Interface Dowel Holes (qty/size) (mm) | (2) 12 |
| Maximum Static Product Load (kg) | 589.7 |
| Maximum Static Product Load (lb) | 1,300 |
| Product Type | Mid Mount |
| Tube Size | 90B |
| Weight (kg) | 24.10 |
| Weight (lb) | 53.10 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
