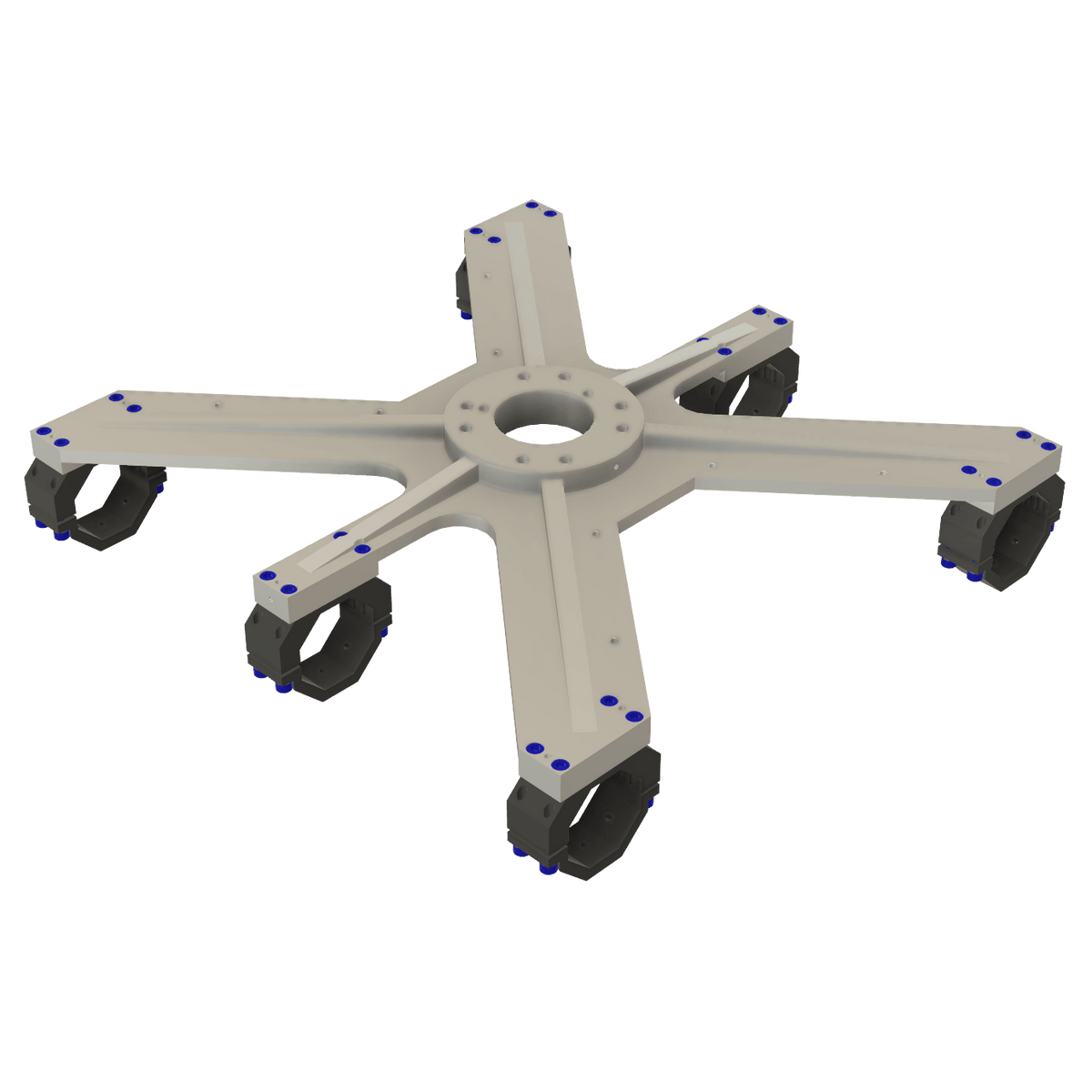

DESTACO BM3-90-R06 Mid Mount Assembly R06

Brand: DESTACO

DESTACO BM3-90-R06 Mid Mount Assembly R06

SKU: DE-STA-CO-BM3-90-R06
MPN: BM3-90-R06

  • $62.82
    Unit price per
  • Save $2,854.06
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Maximize Stability with the DESTACO BM3-90-R06 Mid Mount Assembly R06 - Ideal for High-Performance Automation, Workholding & Containment Solutions! Compatible with Robot Bolt Pattern R06 and features a 160mm Bolt Circle. Tube Diameter of 90mm (3.54 inches), Length of 750mm (29.530 inches), and Width of 738mm (29.060 inches). Crafted from Aluminum for durability and strength. Designed with (8) 12.5mm thru holes on 160mm Bolt Circle and (2) 10mm dowel holes on 125mm Bolt Circle for easy installation. Can support up to 589.7kg (1,300 lbs) of static product load. Perfect for Tube Size 90B and available for use as a direct robot interface. Upgrade your automation today with the DESTACO BM3-90-R06 Mid Mount Assembly R06!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO BM3-90-R06 Mid Mount Assembly R06

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

  • Can be used as a direct robot interface
  • Provide robust clamping of each extrusion for maximum stability
  • Robot Interface Bolt Pattern R06: 160mm Bolt Circle
Tube Diameter (mm) 90
Tube Diameter (in) 3.54
Length (mm) 750.0
Length (in) 29.530
Width (mm) 738.0
Width (in) 29.060
Material Aluminum
Robot Interface Bolt Pattern R06: 160mm Bolt Circle
Robot Interface Thru Holes (qty/size) (mm) (8) 12.5 on 160mm BC
Robot Interface Dowel Holes (qty/size) (mm) (2) 10 on 125mm BC
Maximum Static Product Load (kg) 589.7
Maximum Static Product Load (lb) 1,300
Product Type Mid Mount
Tube Size 90B
Weight (kg) 24.10
Weight (lb) 53.10
Product Series Description Automation Adapter
Product Function Robotic Tooling
Product Family End Effectors
Product Group bodybuilder end effector
