Brand: DESTACO

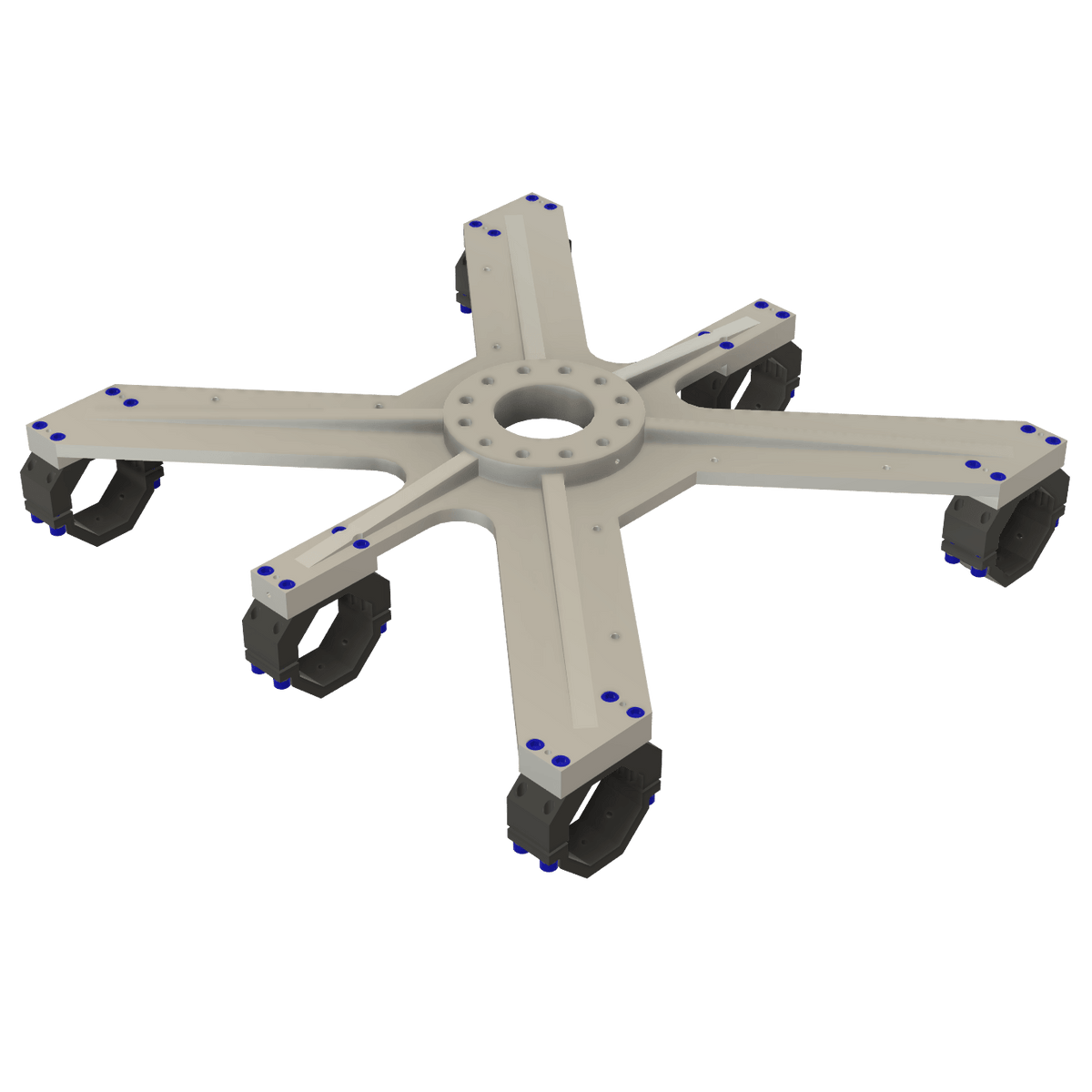

DESTACO BM3-90-R03 Mid Mount Assembly R03
SKU: DE-STA-CO-BM3-90-R03
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience high-performance automation, workholding, and containment with DESTACO's BM3-90-R03 Mid Mount Assembly R03. This versatile assembly can be used as a direct robot interface and provides robust clamping for maximum stability. With a 160mm bolt circle and insulation tube included, you can easily secure each extrusion with ease. Its aluminum material and 90mm tube size make it a durable and reliable choice. Plus, with a maximum static product load of 589.7kg (1,300lbs), you can trust in its strength and reliability. Elevate your automation process with DESTACO's Mid Mount Assembly R03.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM3-90-R03 Mid Mount Assembly R03
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Can be used as a direct robot interface
- Provide robust clamping of each extrusion for maximum stability
- Robot Interface Bolt Pattern R03: 160mm Bolt Circle, Includes Insulation
Tube Diameter (mm) | 90 |
Tube Diameter (in) | 3.54 |
Length (mm) | 750.0 |
Length (in) | 29.530 |
Width (mm) | 738.0 |
Width (in) | 29.060 |
Material | Aluminum |
Robot Interface Bolt Pattern | R03: 160mm Bolt Circle, Includes Insulation |
Robot Interface Thru Holes (qty/size) (mm) | (8) 14 |
Robot Interface Dowel Holes (qty/size) (mm) | (4) 13 |
Maximum Static Product Load (kg) | 589.7 |
Maximum Static Product Load (lb) | 1,300 |
Product Type | Mid Mount |
Tube Size | 90B |
Weight (kg) | 24.10 |
Weight (lb) | 53.10 |
Product Series Description | Automation Adapter |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | bodybuilder end effector |
