Brand: DESTACO

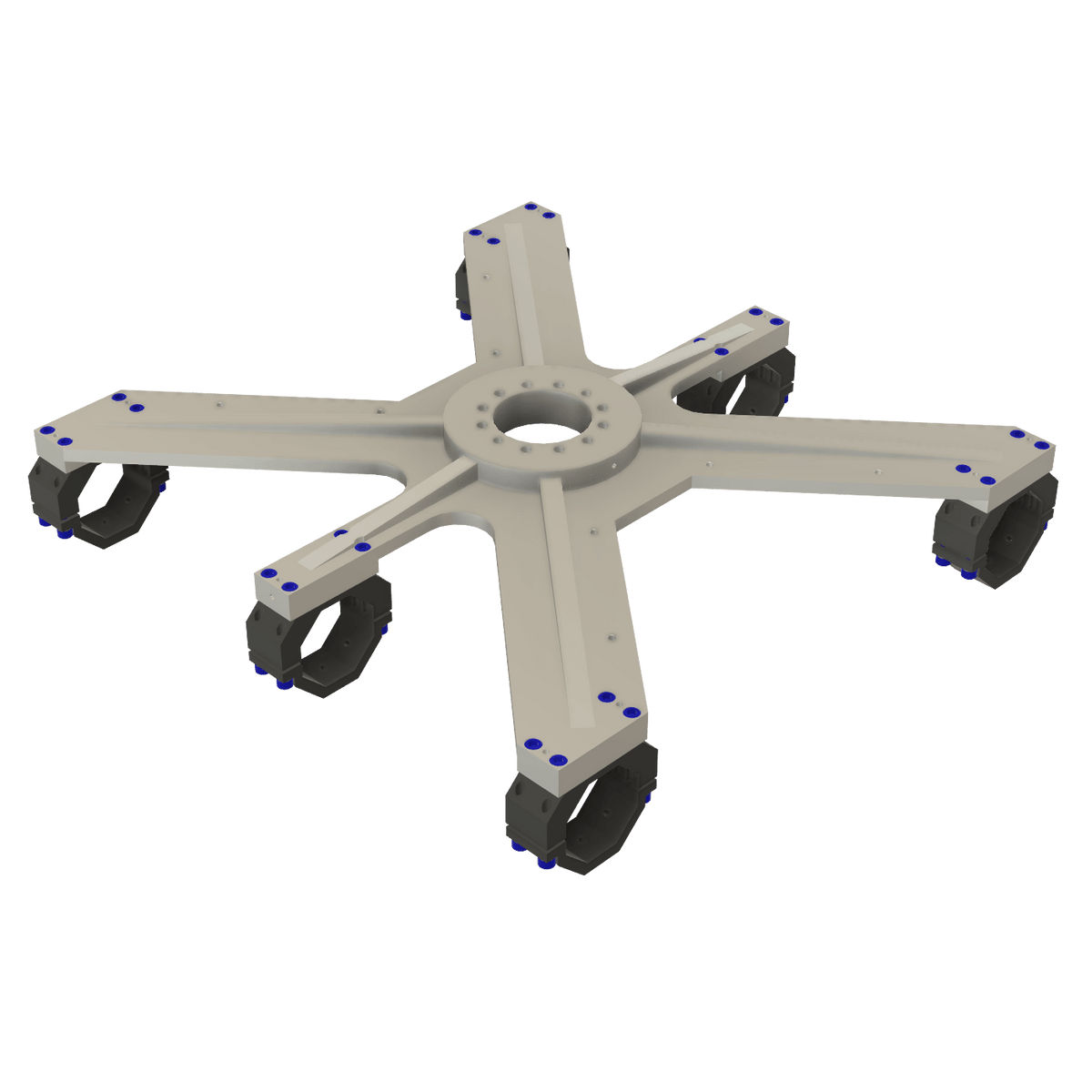

DESTACO BM3-90-R02 Mid Mount Assembly R02
SKU: DE-STA-CO-BM3-90-R02
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO BM3-90-R02 Mid Mount Assembly R02 - designed for peak performance in automation, workholding, and containment. It boasts a seamless integration with robots and provides secure clamping for each extrusion, ensuring maximum stability. With a strong, lightweight aluminum build and a bolt pattern of 125mm, this assembly is engineered for precision. Its generous dimensions of 750mm in length and 738mm in width make it a versatile choice for a variety of tube sizes, including the popular 90B. Don't miss out on this essential addition to your automation toolkit!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM3-90-R02 Mid Mount Assembly R02
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Can be used as a direct robot interface
- Provide robust clamping of each extrusion for maximum stability
- Robot Interface Bolt Pattern R02: 125mm Bolt Circle
Tube Diameter (mm) | 90 |
Tube Diameter (in) | 3.54 |
Length (mm) | 750.0 |
Length (in) | 29.530 |
Width (mm) | 738.0 |
Width (in) | 29.060 |
Material | Aluminum |
Robot Interface Bolt Pattern | R02: 125mm Bolt Circle |
Robot Interface Thru Holes (qty/size) (mm) | (10) 11 |
Robot Interface Dowel Holes (qty/size) (mm) | (2) 10 |
Maximum Static Product Load (kg) | 589.7 |
Maximum Static Product Load (lb) | 1,300 |
Product Type | Mid Mount |
Tube Size | 90B |
Weight (kg) | 24.10 |
Weight (lb) | 53.10 |
Product Series Description | Automation Adapter |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | bodybuilder end effector |
