Brand: DESTACO

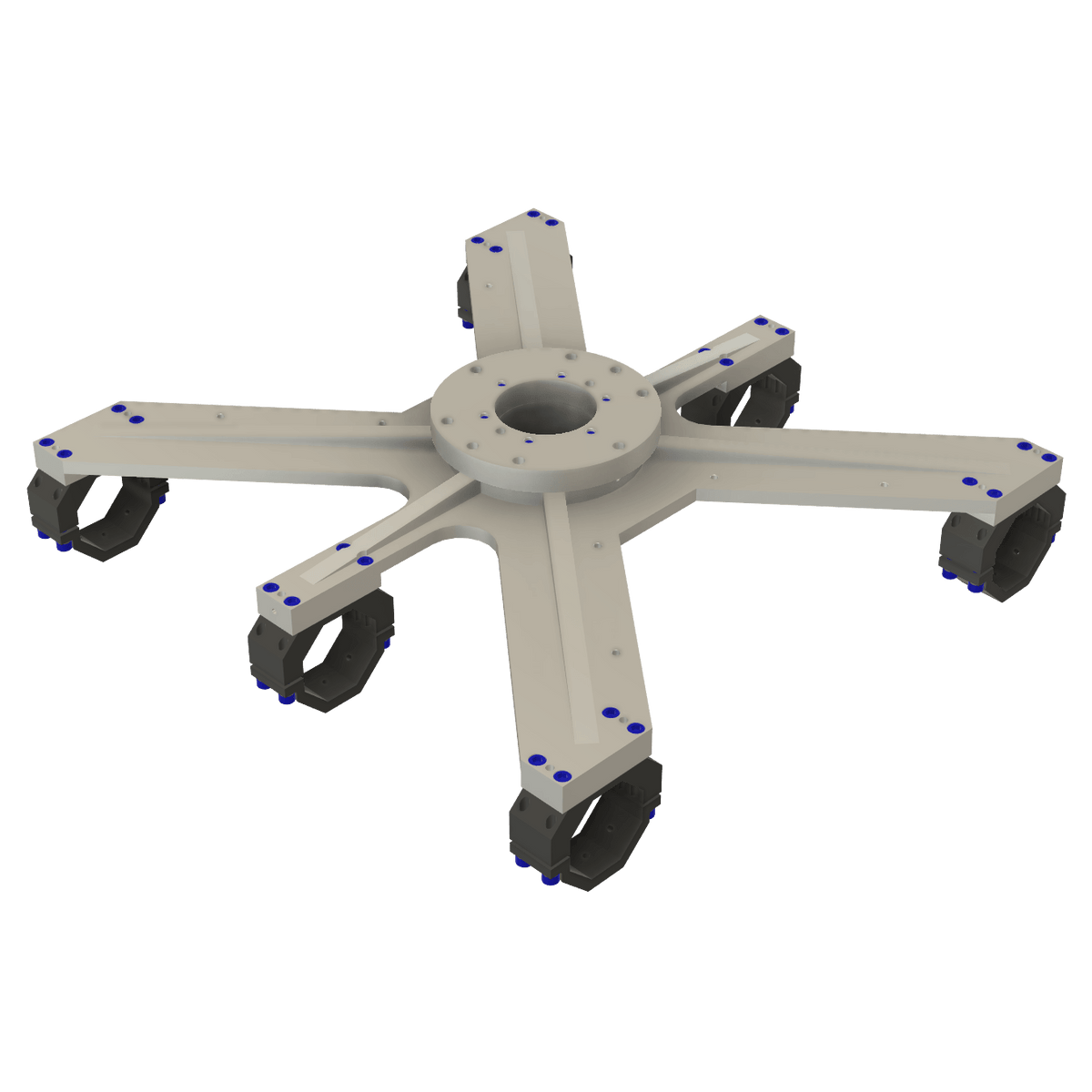

DESTACO BM3-90-R01 MID MOUNT ASSEMBLY
SKU: DE-STA-CO-BM3-90-R01
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO BM3-90-R01 MID MOUNT ASSEMBLY Catalog offers top-of-the-line solutions for automation, workholding, and containment. With a 200mm bolt circle and a sturdy aluminum construction, this assembly provides a strong and stable clamping system for each extrusion. The 90B tube size makes it easy to use as a direct robot interface, while the 589.7kg maximum static product load speaks to its durability and reliability. Enhance your production process and increase efficiency with the innovative DESTACO BM3-90-R01 MID MOUNT ASSEMBLY.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM3-90-R01 MID MOUNT ASSEMBLY
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Can be used as a direct robot interface
- Provide robust clamping of each extrusion for maximum stability
- Robot Interface Bolt Pattern R01: 200mm Bolt Circle
| Tube Diameter (mm) | 90 |
| Tube Diameter (in) | 3.54 |
| Length (mm) | 750.0 |
| Length (in) | 29.530 |
| Width (mm) | 738.0 |
| Width (in) | 29.060 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R01: 200mm Bolt Circle |
| Robot Interface Thru Holes (qty/size) (mm) | (6) 12.5 |
| Robot Interface Dowel Holes (qty/size) (mm) | (2) 12 |
| Maximum Static Product Load (kg) | 589.7 |
| Maximum Static Product Load (lb) | 1,300 |
| Product Type | Mid Mount |
| Tube Size | 90B |
| Weight (kg) | 24.10 |
| Weight (lb) | 53.10 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
