Brand: DESTACO

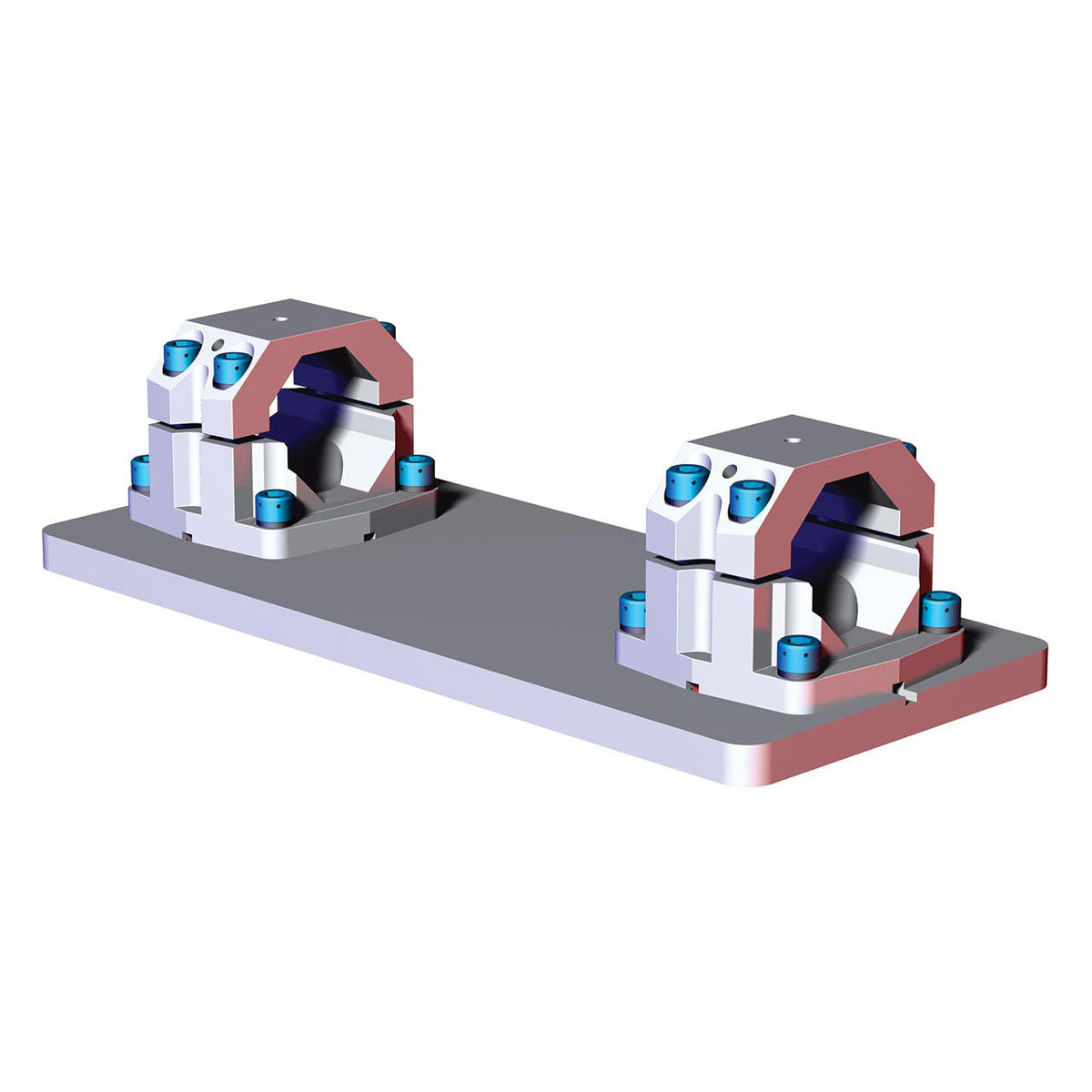

DESTACO BM1-60-SE-R17 60MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R17
SKU: DE-STA-CO-BM1-60-SE-R17
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO BM1-60-SE-R17 60MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R17, a high-performance solution for all your automation, workholding, and containment needs. This versatile mount easily attaches a single 60mm extrusion boom in line, with a 160mm bolt circle and 8 robot interface thru holes for stability. Made of durable aluminum, it can handle a maximum static load of 675 Nm or 500 ft lb, making it a perfect mid mount solution for 60B tube size. Don't miss out on this top-of-the-line product!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM1-60-SE-R17 60MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R17
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts a single 60mm extrusion boom inline with the two mounts.
- Robot Interface Bolt Pattern R17: 160mm Bolt Circle
Tube Diameter (mm) | 60 |
Tube Diameter (in) | 2.36 |
Length (mm) | 406.4 |
Length (in) | 16.000 |
Width (mm) | 177.8 |
Width (in) | 7.000 |
Material | Aluminum |
Robot Interface Bolt Pattern | R17: 160mm Bolt Circle |
Robot Interface Thru Holes (qty/size) (mm) | (8) 11 |
Robot Interface Dowel Holes (qty/size) (mm) | (4) 10 |
Maximum Static Product Load (Nm) | 675 |
Maximum Static Product Load (ft lb) | 500 |
Product Type | Mid Mount |
Tube Size | 60B |
Weight (kg) | 5.20 |
Weight (lb) | 11.50 |
Product Series Description | Automation Adapter |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | bodybuilder end effector |
