Brand: DESTACO

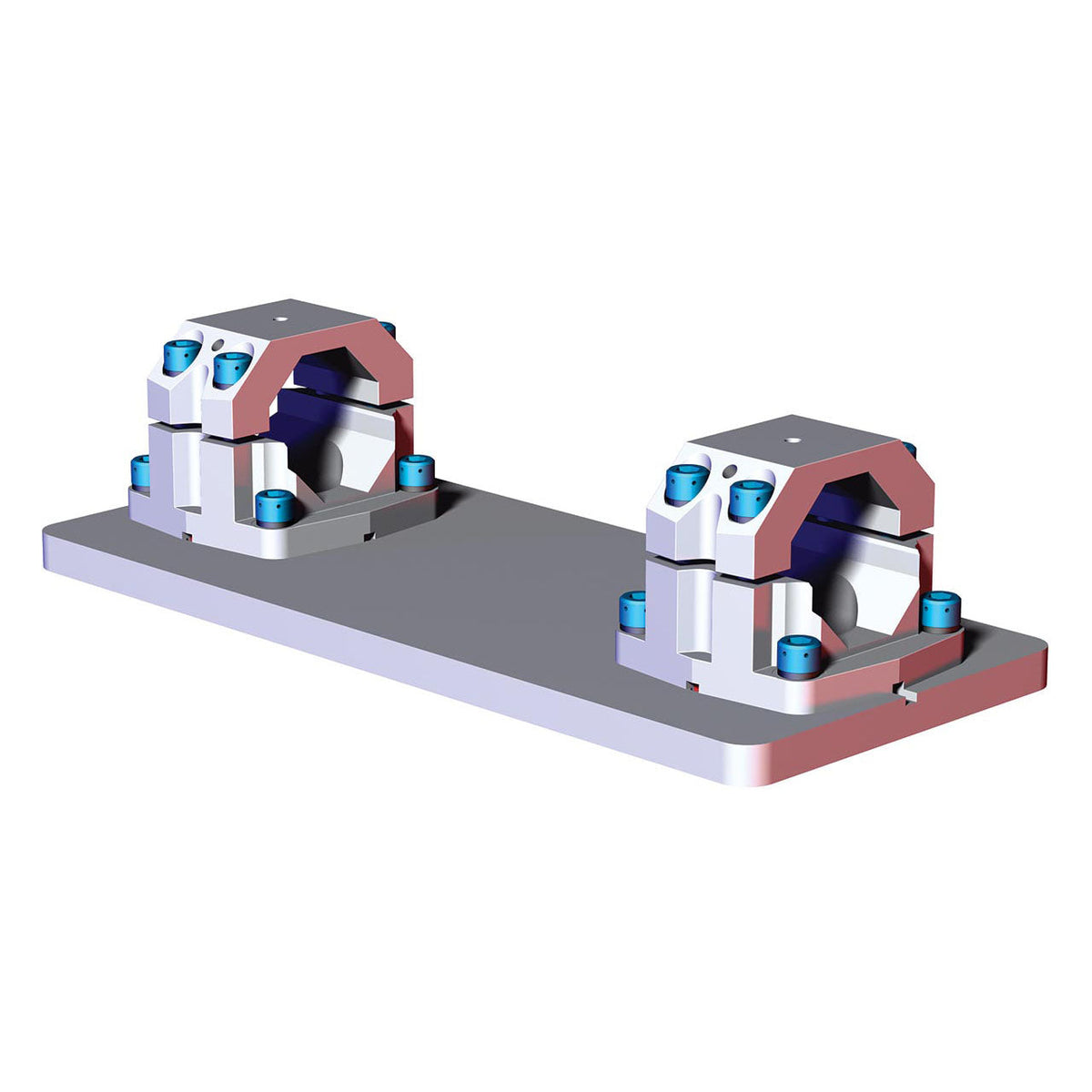

DESTACO BM1-60-SE-R06 60MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R06

SKU: DE-STA-CO-BM1-60-SE-R06
MPN: BM1-60-SE-R06

$1,093.55
Unit price per
Save $66.71

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

DESTACO BM1-60-SE-R06 60MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R06
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO BM1-60-SE-R06 60MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R06

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Mounts a single 60mm extrusion boom inline with the two mounts.
Robot Interface Bolt Pattern R06: 160mm Bolt Circle

Tube Diameter (mm)	60
Tube Diameter (in)	2.36
Length (mm)	406.4
Length (in)	16.000
Width (mm)	177.8
Width (in)	7.000
Material	Aluminum
Robot Interface Bolt Pattern	R06: 160mm Bolt Circle
Robot Interface Thru Holes (qty/size) (mm)	(8) 12.5 on 160mm BC
Robot Interface Dowel Holes (qty/size) (mm)	(2) 10 on 125mm BC
Maximum Static Product Load (Nm)	675
Maximum Static Product Load (ft lb)	500
Product Type	Mid Mount
Tube Size	60B
Weight (kg)	5.20
Weight (lb)	11.50
Product Series Description	Automation Adapter
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	bodybuilder end effector
