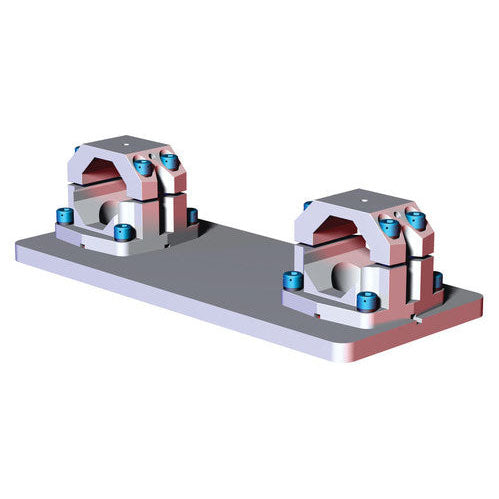

DESTACO BM1-60-SE-R01 60MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R01 - W/ ADAPTER PLATE

Brand: DESTACO

DESTACO BM1-60-SE-R01 60MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R01 - W/ ADAPTER PLATE

SKU: DE-STA-CO-BM1-60-SE-R01
MPN: BM1-60-SE-R01

  • $1,277.20
    Unit price per
  • Save $147.65
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Upgrade your automation, workholding, and containment solutions with the DESTACO BM1-60-SE-R01 60MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R01 - W/ ADAPTER PLATE. Mount a single 60mm extrusion boom with ease, thanks to its inline design and Robot Interface Bolt Pattern R01. Constructed with high-quality, lightweight aluminum, this mid mount is built for maximum performance and can handle a static product load of up to 675Nm (500ft lb). Trust in the durability and efficiency of this product, which is designed with a tube size of 60B for a perfect fit. Don't settle for less, upgrade to the DESTACO BM1-60-SE-R01 today!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO BM1-60-SE-R01 60MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R01 - W/ ADAPTER PLATE

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

  • Mounts a single 60mm extrusion boom inline with the two mounts.
  • Robot Interface Bolt Pattern R01: 200mm Bolt Circle
Tube Diameter (mm) 60
Tube Diameter (in) 2.36
Length (mm) 406.4
Length (in) 16.000
Width (mm) 177.8
Width (in) 7.000
Material Aluminum
Robot Interface Bolt Pattern R01: 200mm Bolt Circle
Robot Interface Thru Holes (qty/size) (mm) (6) 12.5
Robot Interface Dowel Holes (qty/size) (mm) (2) 12
Maximum Static Product Load (Nm) 675
Maximum Static Product Load (ft lb) 500
Product Type Mid Mount
Tube Size 60B
Weight (kg) 5.20
Weight (lb) 11.50
Product Series Description Automation Adapter
Product Function Robotic Tooling
Product Family End Effectors
Product Group bodybuilder end effector
