Brand: DESTACO

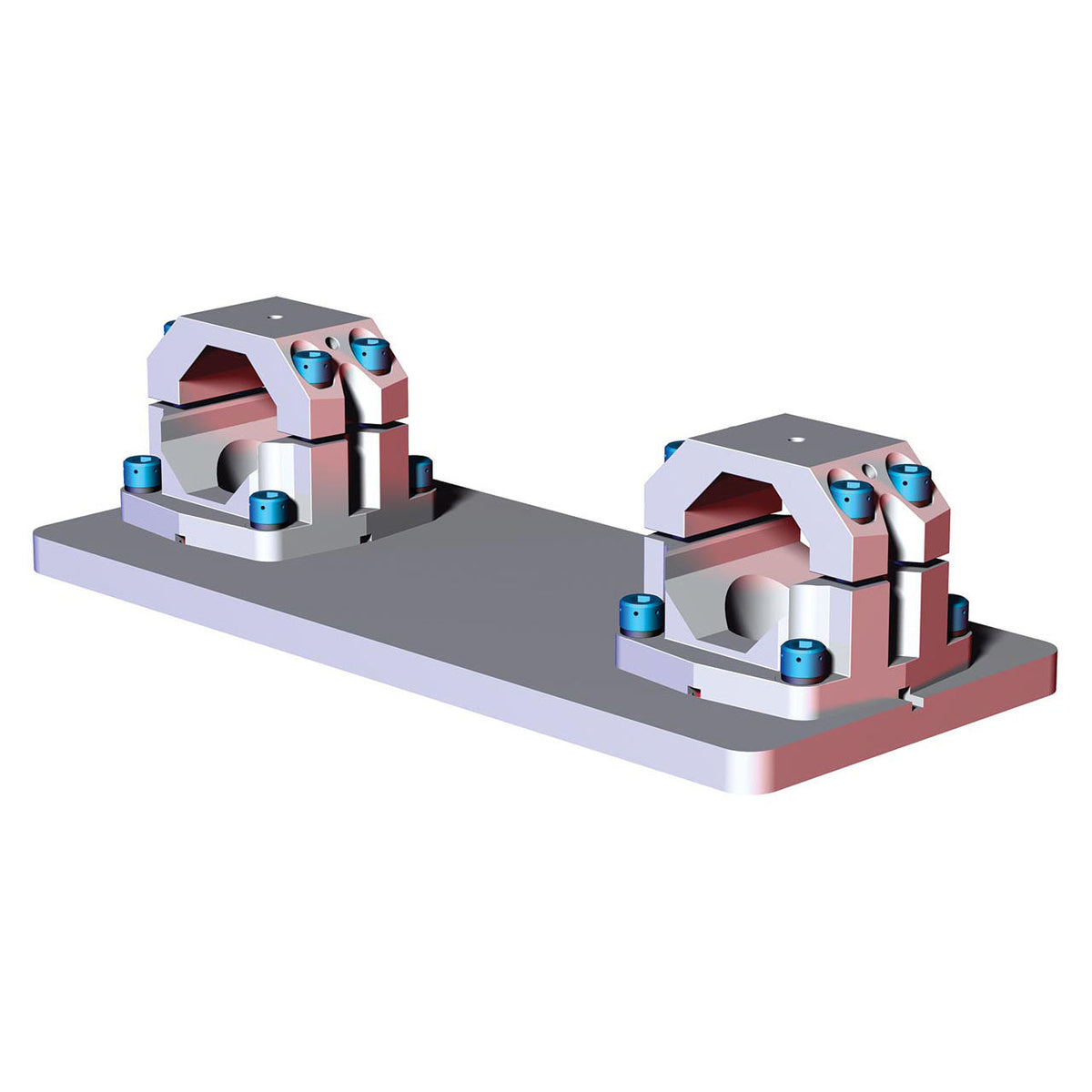

DESTACO BM1-60-DE-R14 60MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R14
SKU: DE-STA-CO-BM1-60-DE-R14
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the next level of automation, workholding, and containment with the DESTACO BM1-60-DE-R14 60MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY. Designed for maximum performance, this assembly mounts a single 60mm extrusion boom with precision and stability. With a 200mm bolt circle and 125mm pilot, along with 6 robot interface thru holes and 2 dowel holes, this mid mount tube size 60B can handle a maximum static product load of 675Nm or 500ft lb. Invest in the best with Destaco's high-quality aluminum construction and experience superior efficiency and precision in your automation processes.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM1-60-DE-R14 60MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R14
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts a single 60mm extrusion boom inline with the two mounts.
- Robot Interface Bolt Pattern R14: 200mm Bolt Circle, 125mm Pilot, 11 mm Deep
| Tube Diameter (mm) | 60 |
| Tube Diameter (in) | 2.36 |
| Length (mm) | 406.4 |
| Length (in) | 16.000 |
| Width (mm) | 177.8 |
| Width (in) | 7.000 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R14: 200mm Bolt Circle, 125mm Pilot, 11 mm Deep |
| Robot Interface Thru Holes (qty/size) (mm) | (6) 13 |
| Robot Interface Dowel Holes (qty/size) (mm) | (2) 12 |
| Maximum Static Product Load (Nm) | 675 |
| Maximum Static Product Load (ft lb) | 500 |
| Product Type | Mid Mount |
| Tube Size | 60B |
| Weight (kg) | 5.20 |
| Weight (lb) | 11.50 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
