Brand: DESTACO
DESTACO BM1-60-DE-R06 60MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R06
SKU: DE-STA-CO-BM1-60-DE-R06
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience superior performance and efficiency with the DESTACO BM1-60-DE-R06 60MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R06. This high-quality product is specifically designed to mount a single 60mm extrusion boom perfectly in line with the two mounts. It features a strong and durable aluminum construction and a robot interface bolt pattern R06 with a 160mm bolt circle. With a maximum static product load of 675Nm (500ft lb), this mid mount assembly offers reliable support and stability. Don't miss out on this essential addition to your automation, workholding, and containment solutions. Get yours today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description

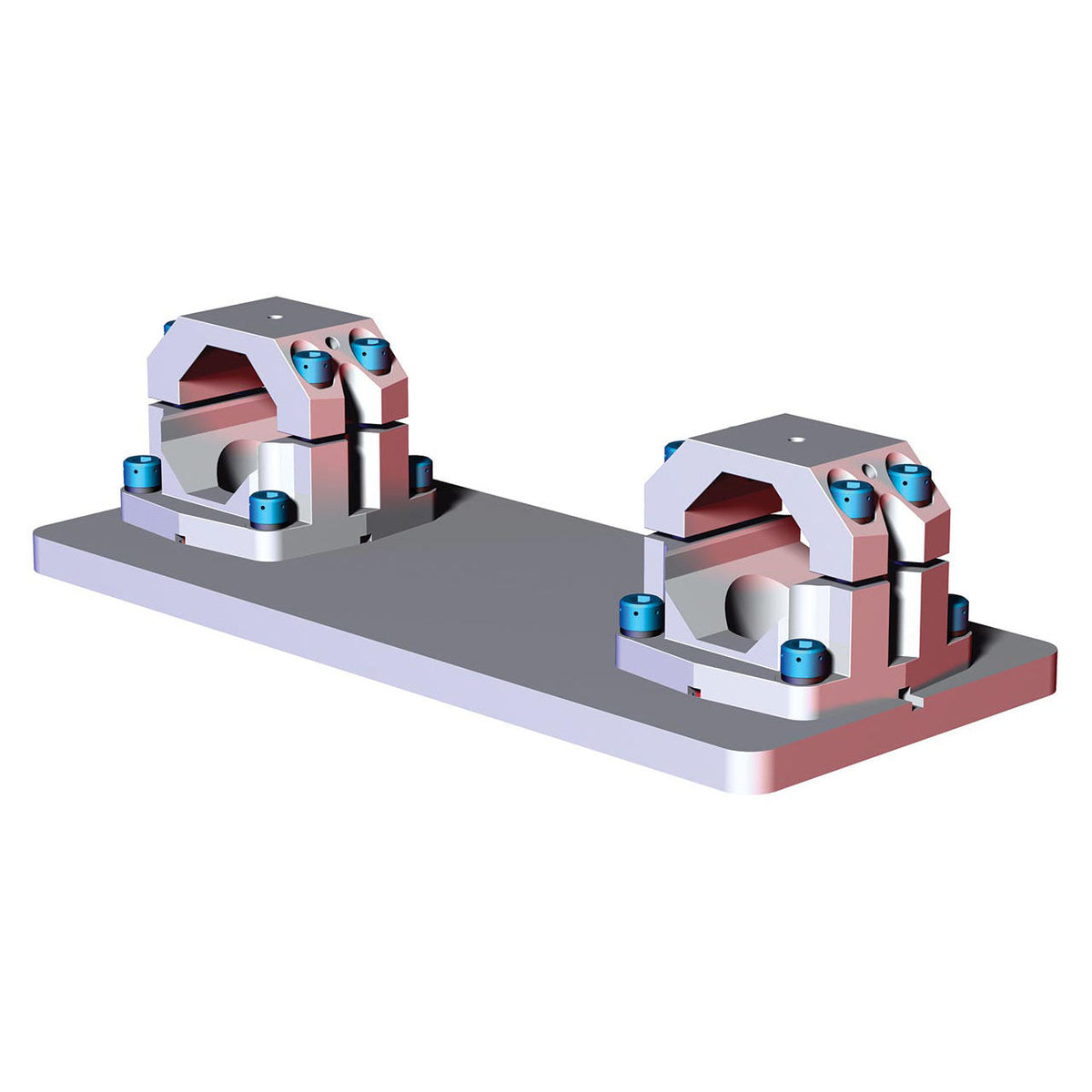

DESTACO BM1-60-DE-R06 60MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R06
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts a single 60mm extrusion boom inline with the two mounts.
- Robot Interface Bolt Pattern R06: 160mm Bolt Circle
Tube Diameter (mm) | 60 |
Tube Diameter (in) | 2.36 |
Length (mm) | 406.4 |
Length (in) | 16.000 |
Width (mm) | 177.8 |
Width (in) | 7.000 |
Material | Aluminum |
Robot Interface Bolt Pattern | R06: 160mm Bolt Circle |
Robot Interface Thru Holes (qty/size) (mm) | (8) 12.5 on 160mm BC |
Robot Interface Dowel Holes (qty/size) (mm) | (2) 10 on 125mm BC |
Maximum Static Product Load (Nm) | 675 |
Maximum Static Product Load (ft lb) | 500 |
Product Type | Mid Mount |
Tube Size | 60B |
Weight (kg) | 5.20 |
Weight (lb) | 11.50 |
Product Series Description | Automation Adapter |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | bodybuilder end effector |
