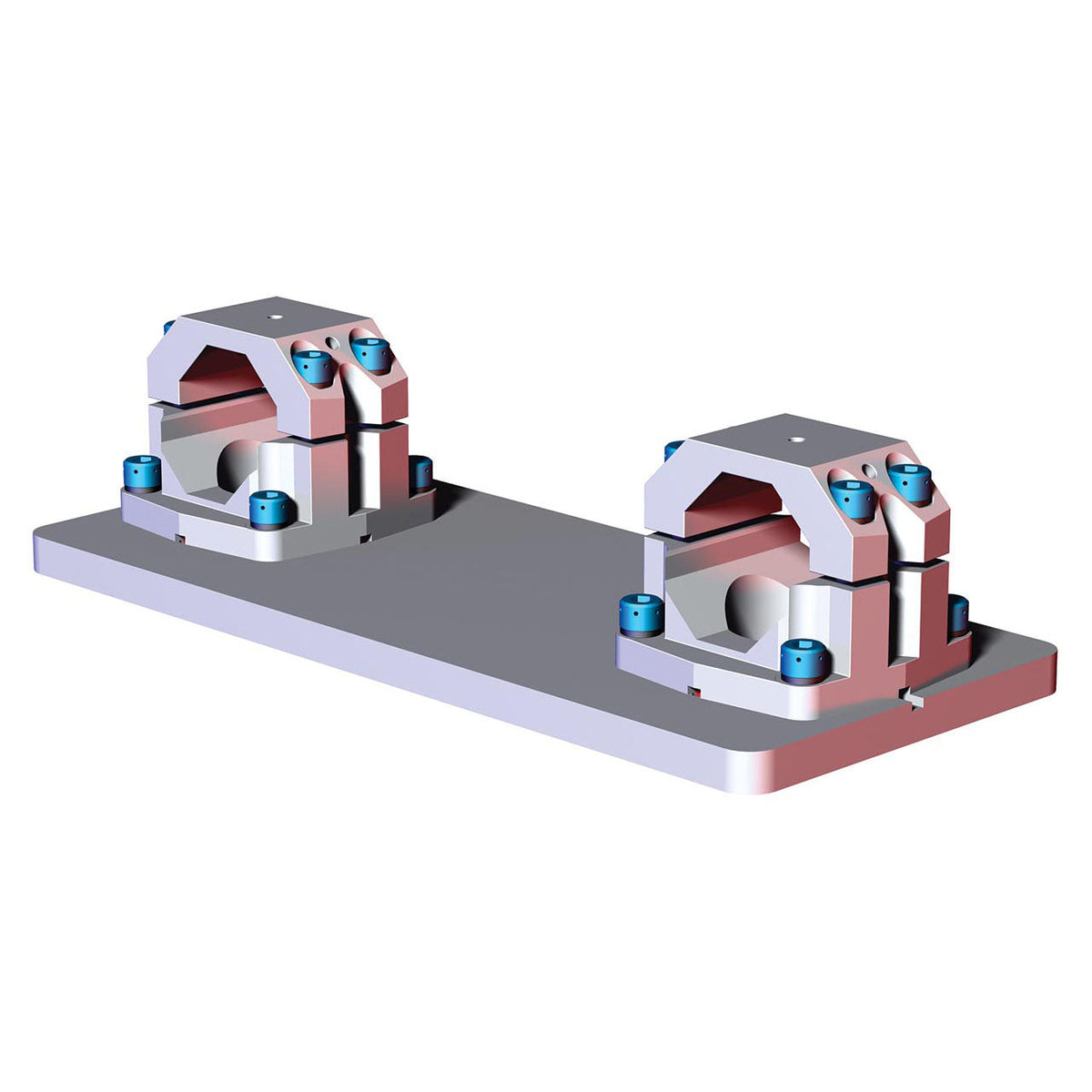

DESTACO BM1-60-DE-R03 60MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R03 - W/ INSULATION

Brand: DESTACO

DESTACO BM1-60-DE-R03 60MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R03 - W/ INSULATION

SKU: DE-STA-CO-BM1-60-DE-R03
MPN: BM1-60-DE-R03

  • $1,289.85
    Unit price per
  • Save $149.11
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Get ready to transform your robotic assembly line with the incredible DESTACO BM1-60-DE-R03 60MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R03 - W/ INSULATION. Designed specifically for handling single 60mm extrusion booms with ease, these BodyBuilder Mid-Mounts feature a unique hole pattern for efficient clamping. The R03 robot interface bolt pattern boasts a 160mm bolt circle and comes with insulation for added protection. With a sturdy aluminum construction and impressive load capacity of 675 Nm, this mid mount is a game-changer for any 60B tube size. Upgrade your production today and see the results for yourself!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO BM1-60-DE-R03 60MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R03 - W/ INSULATION

BodyBuilder Mid-Mounts with Hole Patterns for Extrusion Clamping - Robotic End Effectors

  • Mounts a single 60mm extrusion boom inline with the two mounts.
  • Robot Interface Bolt Pattern R03: 160mm Bolt Circle, Includes Insulation
Tube Diameter (mm) 60
Tube Diameter (in) 2.36
Length (mm) 406.4
Length (in) 16.000
Width (mm) 177.8
Width (in) 7.000
Material Aluminum
Robot Interface Bolt Pattern R03: 160mm Bolt Circle, Includes Insulation
Robot Interface Thru Holes (qty/size) (mm) (8) 14
Robot Interface Dowel Holes (qty/size) (mm) (4) 13
Maximum Static Product Load (Nm) 675
Maximum Static Product Load (ft lb) 500
Product Type Mid Mount
Tube Size 60B
Weight (kg) 5.20
Weight (lb) 11.50
Product Series Description Automation Adapter
Product Function Robotic Tooling
Product Family End Effectors
Product Group bodybuilder end effector
