Brand: DESTACO

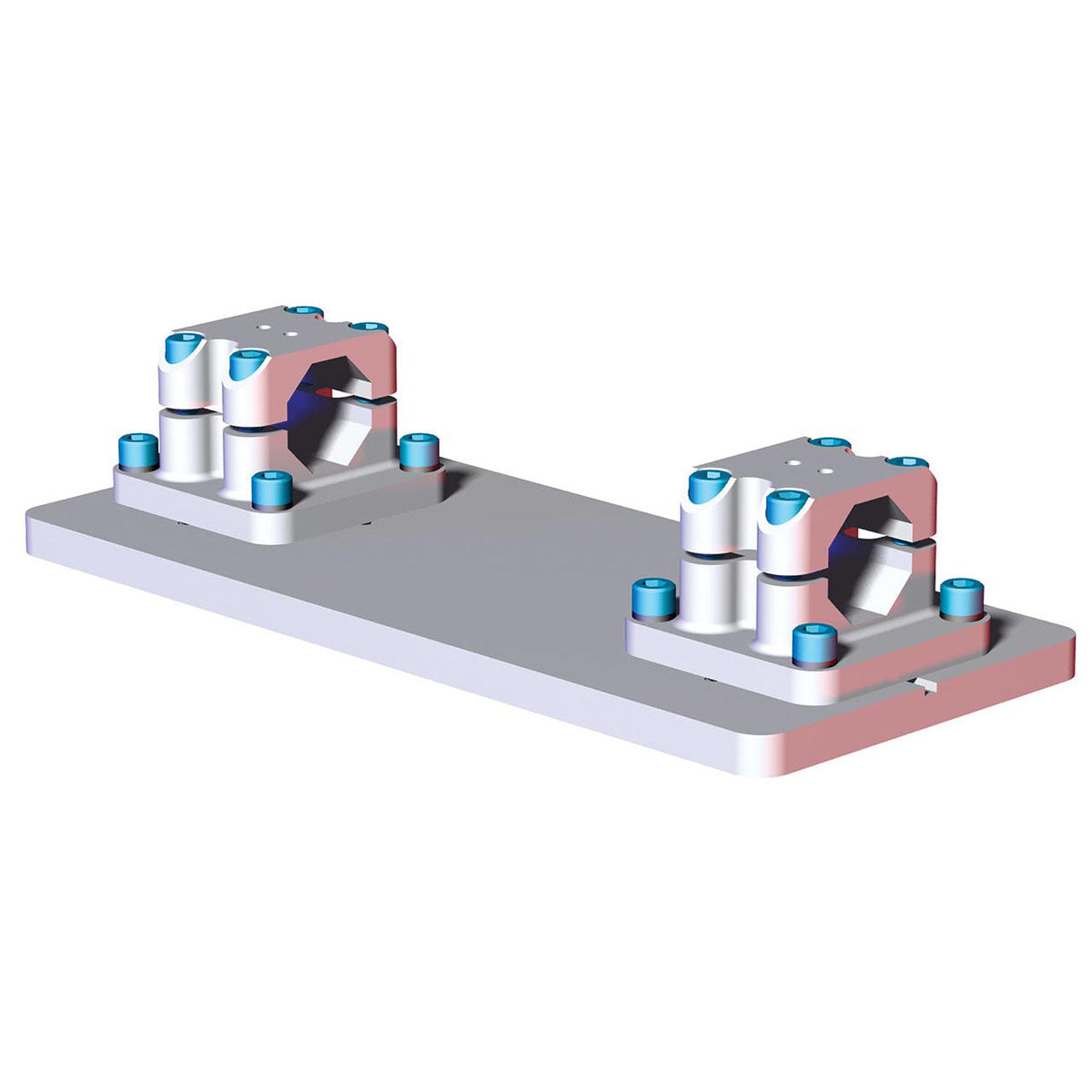

DESTACO BM1-45-SE-R16 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R16 - W/ INSULATION AND W/ ADAPTER PLATE
SKU: DE-STA-CO-BM1-45-SE-R16
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the ultimate in high-performance automation, workholding, and containment solutions with the DESTACO BM1-45-SE-R16 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R16 - W/ INSULATION AND W/ ADAPTER PLATE. This versatile product combines a single 45mm extrusion boom with a strong and durable aluminum material, ensuring maximum static load of 350 Nm (258 ft lb). Integrate it seamlessly into your robot's interface with a 200mm bolt circle and included insulation for effortless use and precision. Take your productivity to new heights with Destaco.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM1-45-SE-R16 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R16 - W/ INSULATION AND W/ ADAPTER PLATE
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts a single 45mm extrusion boom inline with the two mounts.
- Robot Interface Bolt Pattern R16: 200mm Bolt Circle, Includes Insulation
Tube Diameter (mm) | 45 |
Tube Diameter (in) | 1.77 |
Length (mm) | 406.4 |
Length (in) | 16.000 |
Width (mm) | 177.8 |
Width (in) | 7.000 |
Material | Aluminum |
Robot Interface Bolt Pattern | R16: 200mm Bolt Circle, Includes Insulation |
Robot Interface Thru Holes (qty/size) (mm) | (6) 16 |
Robot Interface Dowel Holes (qty/size) (mm) | (2)15 |
Maximum Static Product Load (Nm) | 350 |
Maximum Static Product Load (ft lb) | 258 |
Product Type | Mid Mount |
Tube Size | 45B |
Weight (kg) | 5.05 |
Weight (lb) | 11.10 |
Product Series Description | Automation Adapter |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | bodybuilder end effector |
