Brand: DESTACO

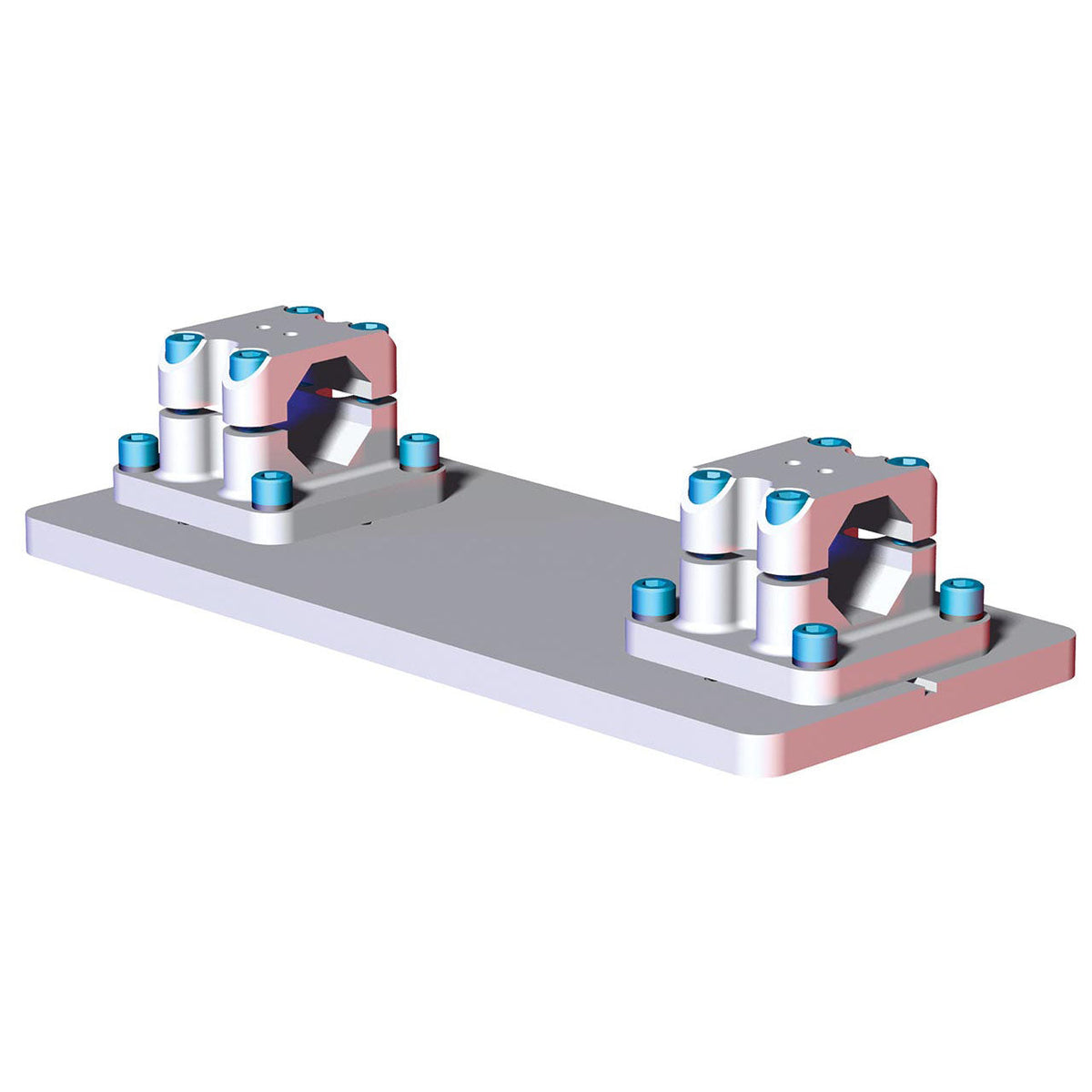

DESTACO BM1-45-SE-R13 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R13
SKU: DE-STA-CO-BM1-45-SE-R13
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the DESTACO BM1-45-SE-R13 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R13 Catalog, featuring unbeatable high-performance automation, workholding, and containment solutions. This sturdy assembly perfectly mounts a single 45mm extrusion boom for seamless inline functionality. With the Robot Interface Bolt Pattern R13, bold productivity is at your fingertips with a 125/160 bolt circle and 110mm pilot. With the robust 5.5mm deep Thru Holes and Dowel Holes, you can easily handle any task at hand. This exceptional Mid Mount Tube Size 45B is crafted with durable aluminum construction, giving you peace of mind in any production scenario. Boasting a maximum static product load of 350 Nm (258 ft lbs), this is the ultimate solution to maximize your efficiency. Don't miss out on the DESTACO BM1-45-SE-R13 - your perfect partner in productivity!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM1-45-SE-R13 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R13
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts a single 45mm extrusion boom inline with the two mounts.
- Robot Interface Bolt Pattern R13: 125/160 bolt Circle, 110 mm Pilot, 5.5mm deep
| Tube Diameter (mm) | 45 |
| Tube Diameter (in) | 1.77 |
| Length (mm) | 406.4 |
| Length (in) | 16.000 |
| Width (mm) | 177.8 |
| Width (in) | 7.000 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R13: 125/160 bolt Circle, 110 mm Pilot, 5.5mm deep |
| Robot Interface Thru Holes (qty/size) (mm) | (6) 11 on 160mm BC, (6) 11 on 125 BC |
| Robot Interface Dowel Holes (qty/size) (mm) | (2) 10 on 125mm BC, (2) 10 on 160mm BC |
| Maximum Static Product Load (Nm) | 350 |
| Maximum Static Product Load (ft lb) | 258 |
| Product Type | Mid Mount |
| Tube Size | 45B |
| Weight (kg) | 5.05 |
| Weight (lb) | 11.10 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
