Brand: DESTACO

DESTACO BM1-45-SE-R11 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R11 - W/ INSULATION AND W/ ADAPTER PLATE

SKU: DE-STA-CO-BM1-45-SE-R11
MPN: BM1-45-SE-R11

$1,289.85
Unit price per
Save $149.11

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Elevate your automation, workholding, and containment capabilities with the DESTACO BM1-45-SE-R11 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R11 - W/ INSULATION AND W/ ADAPTER PLATE. Designed for superior performance, this mid mount assembly boasts a single 45mm extrusion boom inline with two mounts to provide a solid and reliable structure. With a robot interface bolt pattern of R11 and insulation included, you can easily integrate this product into your system. The high-quality aluminum material and precise dimensions of 406.4mm length and 177.8mm width make this mid mount assembly a top choice for any industrial setting. Don't settle for less, choose DESTACO for your automation needs.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

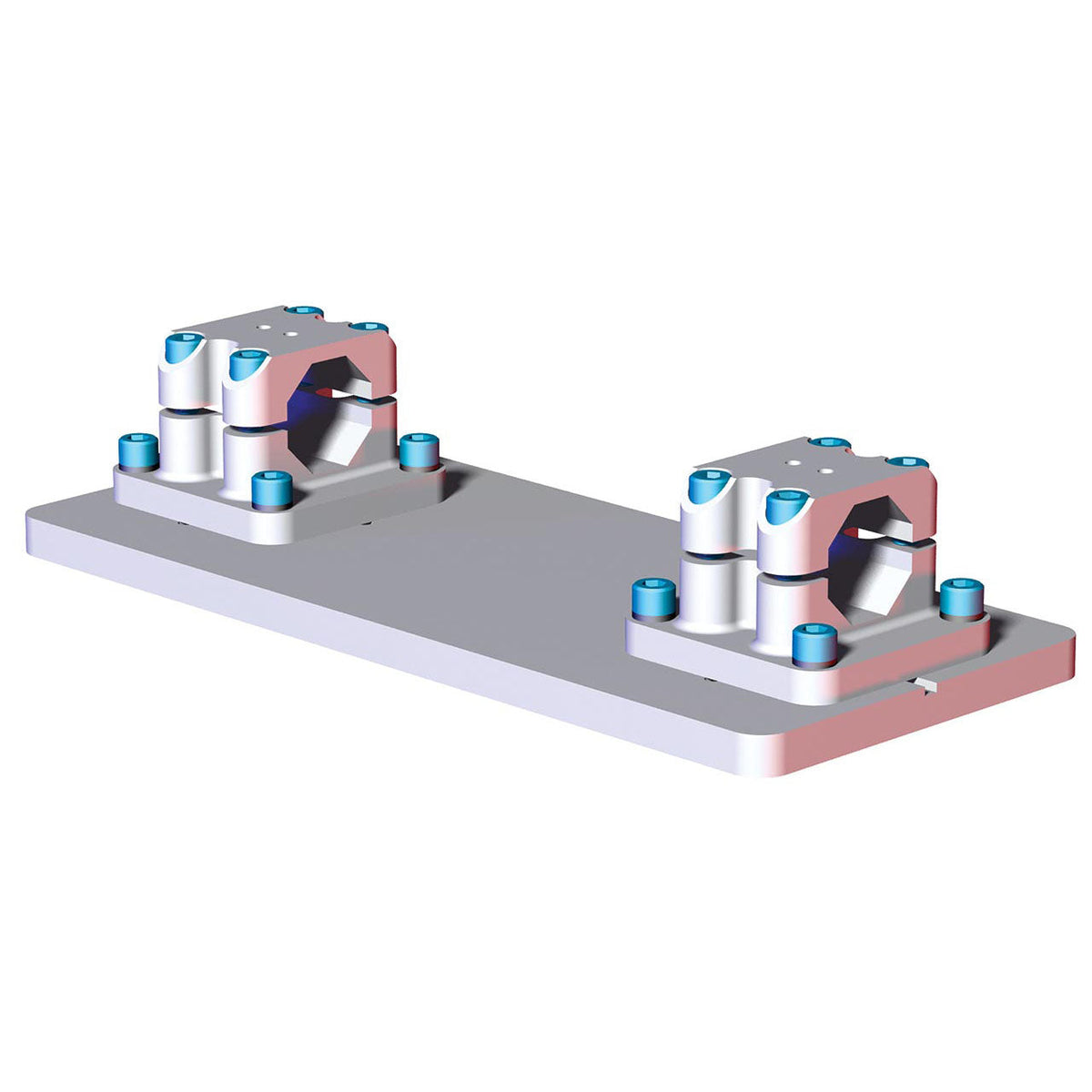

DESTACO BM1-45-SE-R11 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R11 - W/ INSULATION AND W/ ADAPTER PLATE

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Mounts a single 45mm extrusion boom inline with the two mounts.
Robot Interface Bolt Pattern R11: 200mm Bolt Circle, Includes Insulation

Tube Diameter (mm)	45
Tube Diameter (in)	1.77
Length (mm)	406.4
Length (in)	16.000
Width (mm)	177.8
Width (in)	7.000
Material	Aluminum
Robot Interface Bolt Pattern	R11: 200mm Bolt Circle, Includes Insulation
Robot Interface Thru Holes (qty/size) (mm)	(6) 16
Robot Interface Dowel Holes (qty/size) (mm)	(2) 15
Maximum Static Product Load (Nm)	350
Maximum Static Product Load (ft lb)	258
Product Type	Mid Mount
Tube Size	45B
Weight (kg)	5.05
Weight (lb)	11.10
Product Series Description	Automation Adapter
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	bodybuilder end effector
