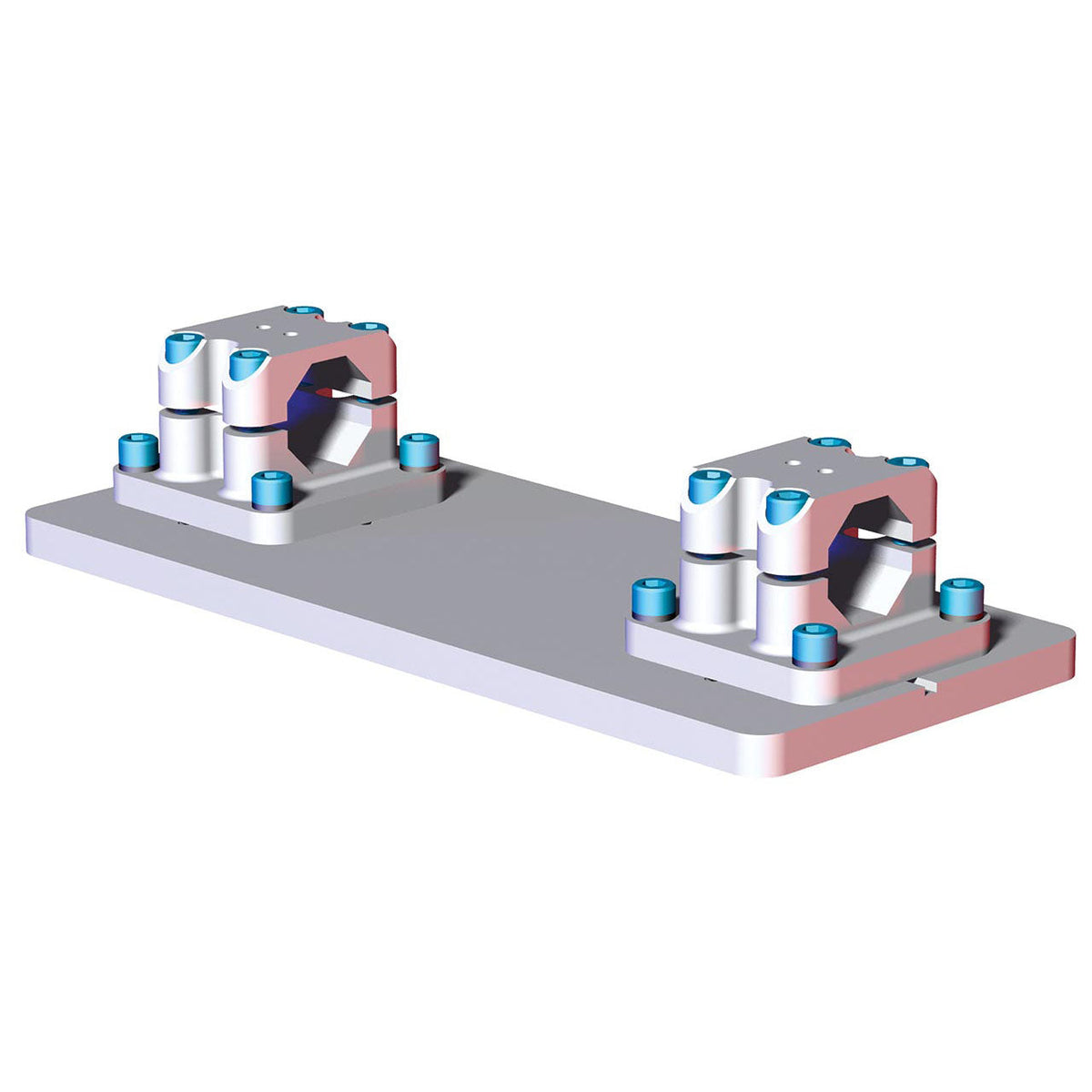

DESTACO BM1-45-SE-R10 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R10 - W/ ADAPTER PLATE
SKU: DE-STA-CO-BM1-45-SE-R10
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO BM1-45-SE-R10 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R10 - W/ ADAPTER PLATE is the perfect solution for securely mounting a single 45mm extrusion boom. With its precise hole patterns and sturdy aluminum construction, this mid-mount assembly will make a reliable addition to any robotic end effector. The R10 bolt pattern allows for a 200mm bolt circle and 6 robot interface thru holes, with an additional 2 dowel holes for maximum stability. With a maximum static load of 350 Nm or 258 ft lb, this mid-mount assembly can handle heavy-duty tasks with ease. Upgrade your system and experience the impressive capabilities of the DESTACO BM1-45-SE-R10 today.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM1-45-SE-R10 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R10 - W/ ADAPTER PLATE
BodyBuilder Mid-Mounts with Hole Patterns for Extrusion Clamping - Robotic End Effectors
- Mounts a single 45mm extrusion boom inline with the two mounts.
- Robot Interface Bolt Pattern R10: 200mm Bolt Circle
| Tube Diameter (mm) | 45 |
| Tube Diameter (in) | 1.77 |
| Length (mm) | 406.4 |
| Length (in) | 16.000 |
| Width (mm) | 177.8 |
| Width (in) | 7.000 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R10: 200mm Bolt Circle |
| Robot Interface Thru Holes (qty/size) (mm) | (6) 12.5 |
| Robot Interface Dowel Holes (qty/size) (mm) | (2) 12 |
| Maximum Static Product Load (Nm) | 350 |
| Maximum Static Product Load (ft lb) | 258 |
| Product Type | Mid Mount |
| Tube Size | 45B |
| Weight (kg) | 5.05 |
| Weight (lb) | 11.10 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
