Brand: DESTACO

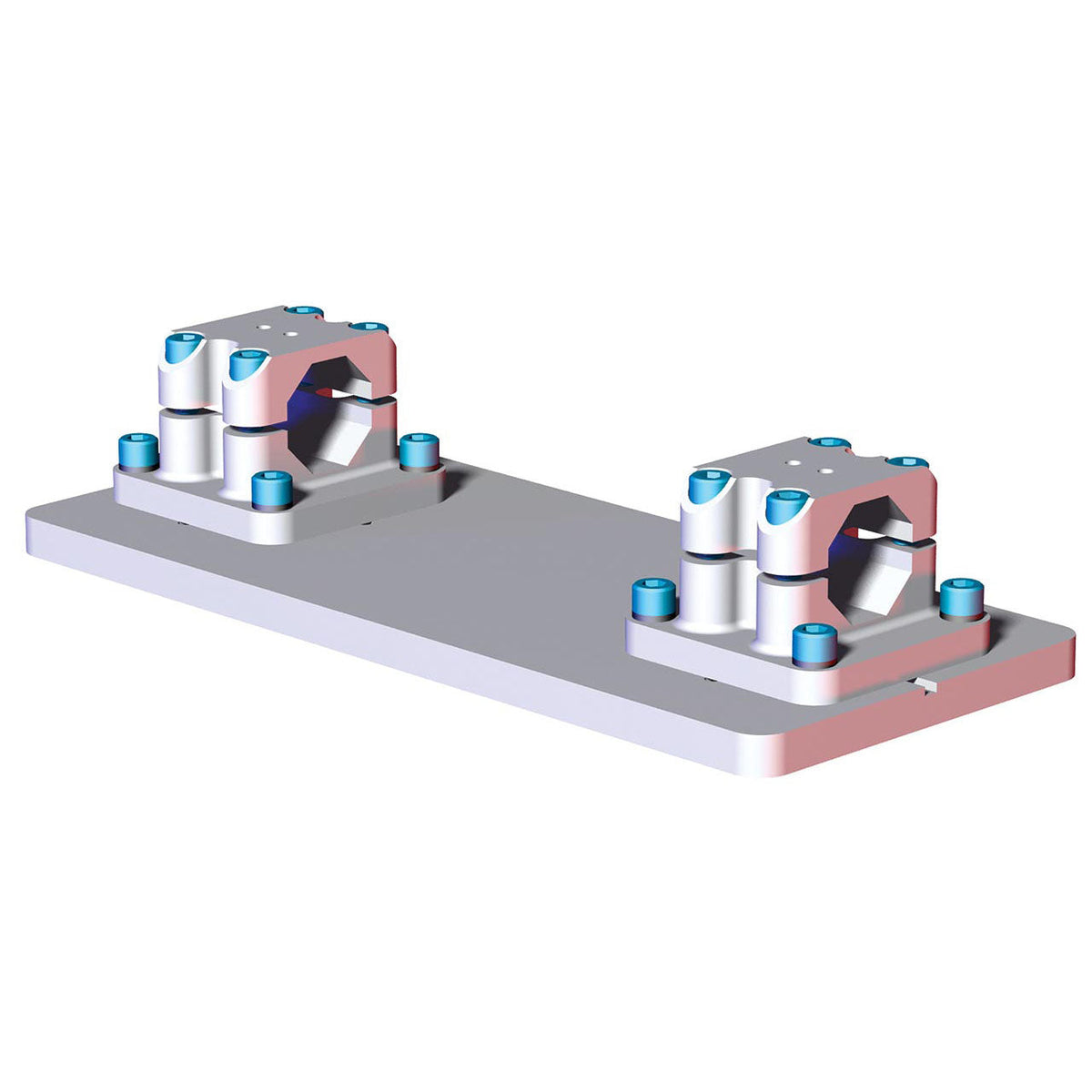

DESTACO BM1-45-SE-R09 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R09 - W/ INSULATION AND W/ ADAPTER PLATE

SKU: DE-STA-CO-BM1-45-SE-R09
MPN: BM1-45-SE-R09

$1,289.85
Unit price per
Save $149.11

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Enhance your automation, workholding, and containment solutions with the DESTACO BM1-45-SE-R09 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R09 - W/ INSULATION AND W/ ADAPTER PLATE. Experience the superior performance of this product, which mounts a single 45mm extrusion boom with precision and efficiency. The R09 robot interface bolt pattern features a 200mm bolt circle and includes insulation for added protection. With a tube diameter of 45mm and a length of 406.4mm, this product is built to withstand even the toughest industrial applications. Made from durable aluminum, it offers unmatched strength and reliability. Don't settle for less - choose the DESTACO BM1-45-SE-R09 for all your mid mount tube needs.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO BM1-45-SE-R09 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R09 - W/ INSULATION AND W/ ADAPTER PLATE

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Mounts a single 45mm extrusion boom inline with the two mounts.
Robot Interface Bolt Pattern R09: 200mm Bolt Circle, Includes Insulation

Tube Diameter (mm)	45
Tube Diameter (in)	1.77
Length (mm)	406.4
Length (in)	16.000
Width (mm)	177.8
Width (in)	7.000
Material	Aluminum
Robot Interface Bolt Pattern	R09: 200mm Bolt Circle, Includes Insulation
Robot Interface Thru Holes (qty/size) (mm)	(6) 20
Robot Interface Dowel Holes (qty/size) (mm)	(2) 15
Maximum Static Product Load (Nm)	350
Maximum Static Product Load (ft lb)	258
Product Type	Mid Mount
Tube Size	45B
Weight (kg)	5.05
Weight (lb)	11.10
Product Series Description	Automation Adapter
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	bodybuilder end effector
