Brand: DESTACO

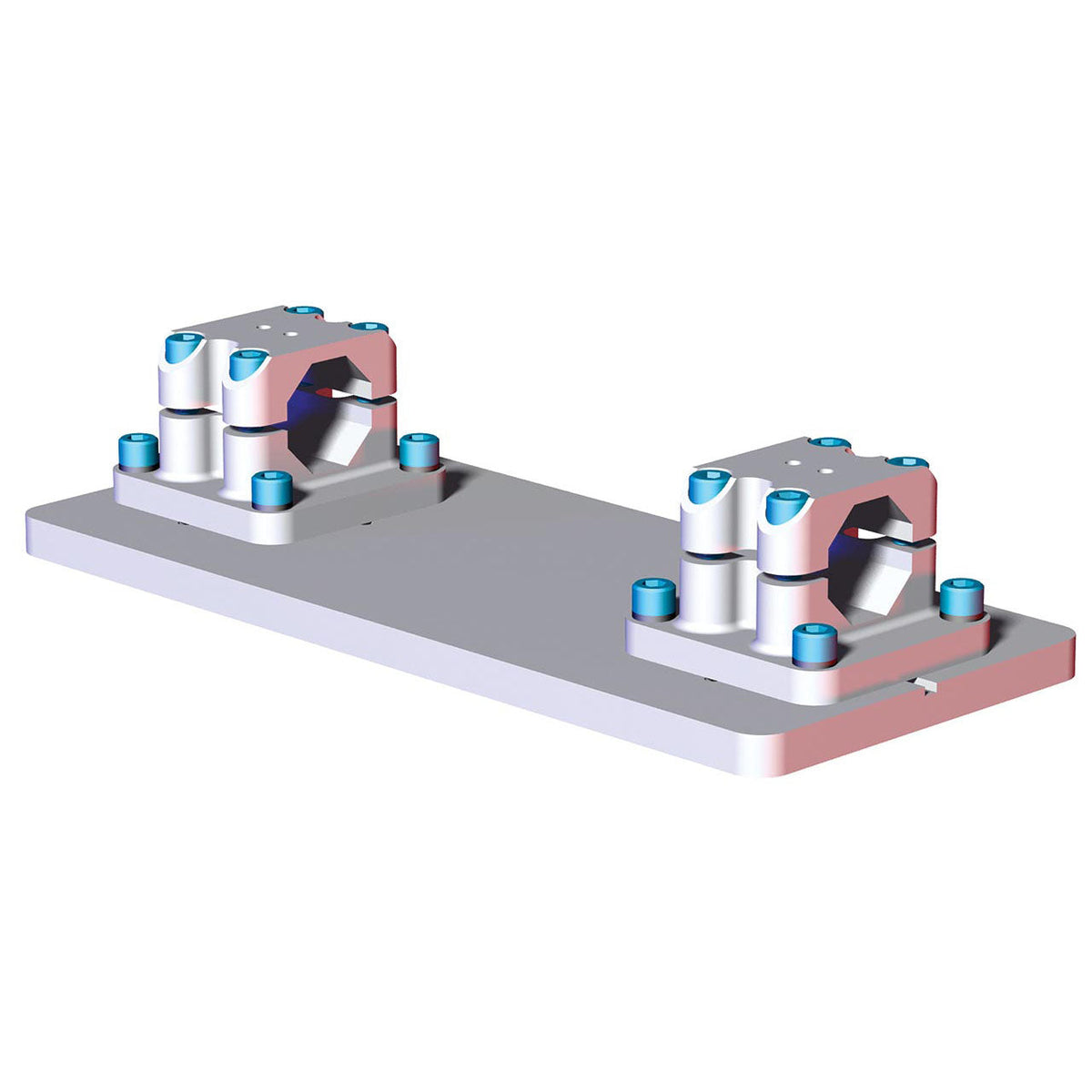

DESTACO BM1-45-SE-R08 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R08 - W/ INSULATION
SKU: DE-STA-CO-BM1-45-SE-R08
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience high-performance automation, workholding, and containment solutions with DESTACO's BM1-45-SE-R08 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R08 - W/ INSULATION. This innovative product allows for a single 45mm extrusion boom to be mounted inline with the two mounts, providing superior functionality and efficiency. With a 125/160mm bolt circle and insulation tube diameter of 45mm, this mid mount is perfect for any industrial setting. Don't miss out on this top-of-the-line aluminum product with a maximum static load of 350 Nm or 258 ft lb. Upgrade your operations with the DESTACO BM1-45-SE-R08!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM1-45-SE-R08 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R08 - W/ INSULATION
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts a single 45mm extrusion boom inline with the two mounts.
- Robot Interface Bolt Pattern R08: 125/160mm Bolt Circle, Includes Insulation
Tube Diameter (mm) | 45 |
Tube Diameter (in) | 1.77 |
Length (mm) | 406.4 |
Length (in) | 16.000 |
Width (mm) | 177.8 |
Width (in) | 7.000 |
Material | Aluminum |
Robot Interface Bolt Pattern | R08: 125/160mm Bolt Circle, Includes Insulation |
Robot Interface Thru Holes (qty/size) (mm) | (8) 16 on 160mm BC |
Robot Interface Dowel Holes (qty/size) (mm) | (2) 13 on 125mm BC |
Maximum Static Product Load (Nm) | 350 |
Maximum Static Product Load (ft lb) | 258 |
Product Type | Mid Mount |
Tube Size | 45B |
Weight (kg) | 5.05 |
Weight (lb) | 11.10 |
Product Series Description | Automation Adapter |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | bodybuilder end effector |
