Brand: DESTACO

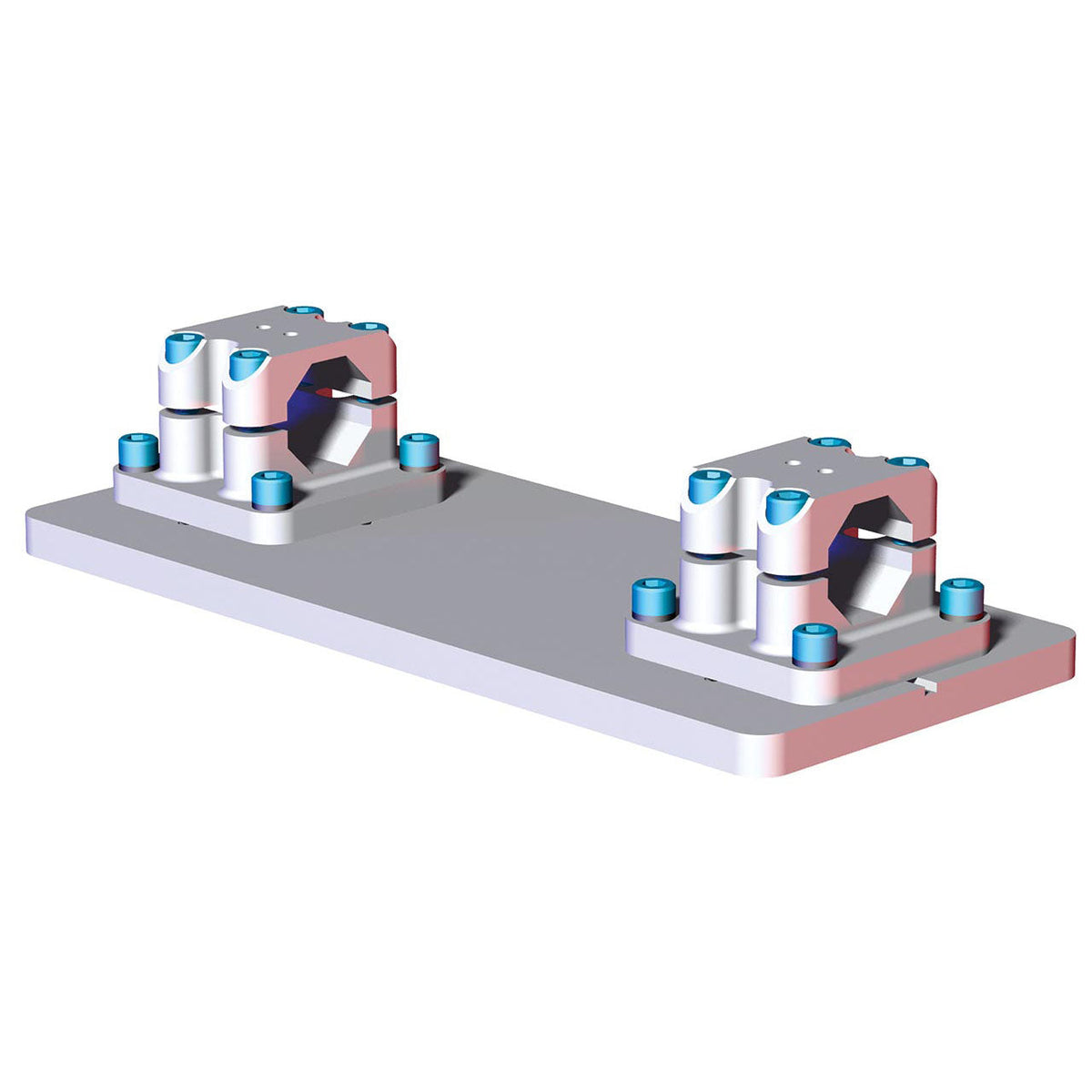

DESTACO BM1-45-SE-R02 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R02
SKU: DE-STA-CO-BM1-45-SE-R02
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Discover the incredible DESTACO BM1-45-SE-R02 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R02 for all your high-performance automation, workholding, and containment needs! This revolutionary product mounts a single 45mm extrusion boom in-line with two mounts, providing unbeatable efficiency and strength. With a robot interface bolt pattern of R02 and a maximum static product load of 350Nm/258ft lb, this mid mount tube size 45B is the ultimate solution for top-notch performance. See for yourself why DESTACO is the go-to for unparalleled automation and industrial solutions.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM1-45-SE-R02 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R02
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts a single 45mm extrusion boom inline with the two mounts.
- Robot Interface Bolt Pattern R02: 125mm Bolt Circle
| Tube Diameter (mm) | 45 |
| Tube Diameter (in) | 1.77 |
| Length (mm) | 406.4 |
| Length (in) | 16.000 |
| Width (mm) | 177.8 |
| Width (in) | 7.000 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R02: 125mm Bolt Circle |
| Robot Interface Thru Holes (qty/size) (mm) | (10) 11 |
| Robot Interface Dowel Holes (qty/size) (mm) | (2) 10 |
| Maximum Static Product Load (Nm) | 350 |
| Maximum Static Product Load (ft lb) | 258 |
| Product Type | Mid Mount |
| Tube Size | 45B |
| Weight (kg) | 5.05 |
| Weight (lb) | 11.10 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
