Brand: DESTACO

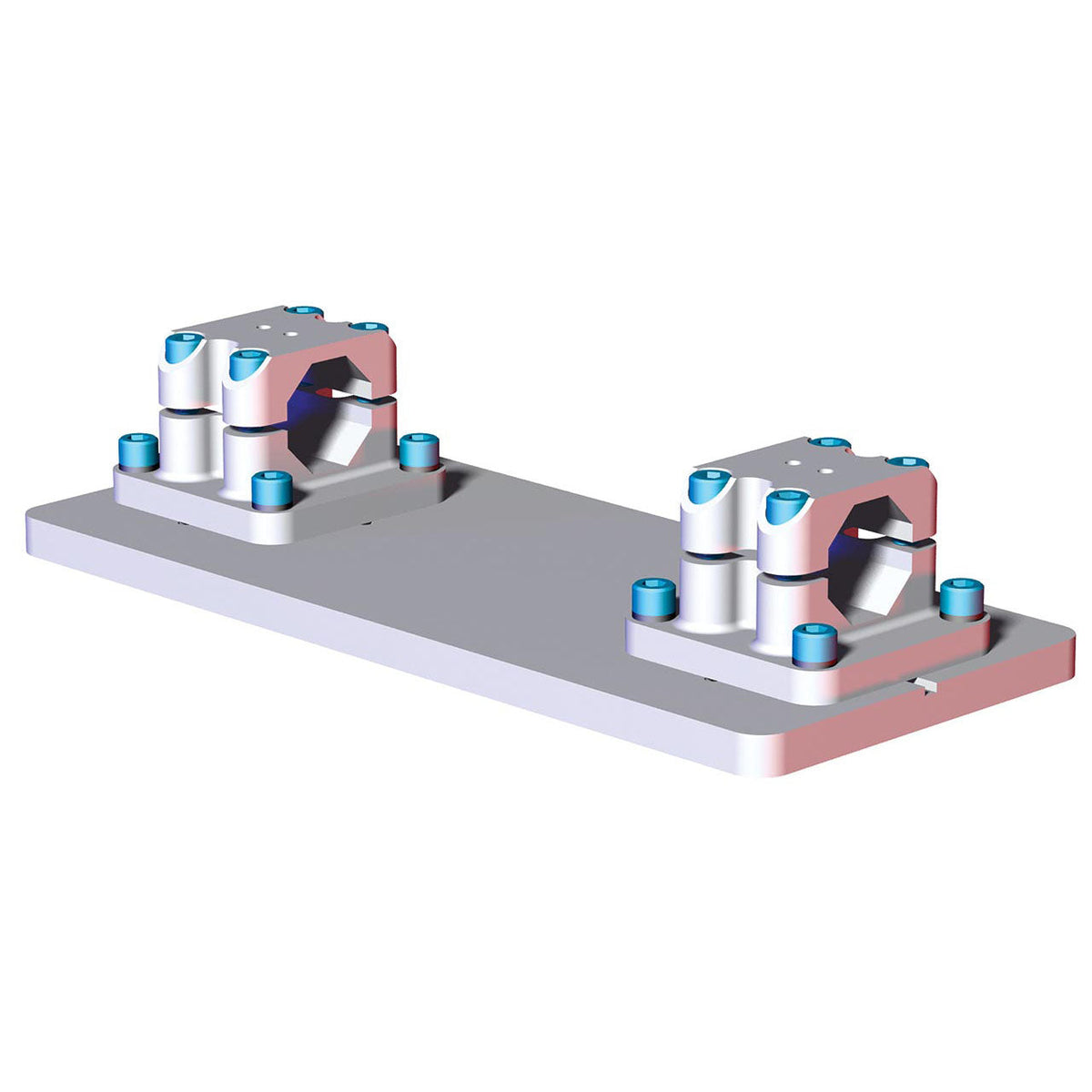

DESTACO BM1-45-SE-R01 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R01 - W/ ADAPTER PLATE
SKU: DE-STA-CO-BM1-45-SE-R01
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
This versatile mid mount assembly, the DESTACO BM1-45-SE-R01 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY, is an essential component for high-performance automation, workholding, and containment solutions. It's designed to securely mount a single 45mm extrusion boom inline with two mounts, with a robot interface bolt pattern of R01 and a maximum static product load of 350 Nm (or 258 ft lbs). The adapter plate ensures seamless integration and the sturdy aluminum construction guarantees long-lasting durability. With a tube size of 45B and dimensions measuring 406.4 mm in length and 177.8 mm in width, this mid mount assembly is the perfect addition to any automation setup.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM1-45-SE-R01 45MM SINGLE EXTRUSION MID MOUNT ASSEMBLY - R01 - W/ ADAPTER PLATE
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts a single 45mm extrusion boom inline with the two mounts.
- Robot Interface Bolt Pattern R01: 200mm Bolt Circle
| Tube Diameter (mm) | 45 |
| Tube Diameter (in) | 1.77 |
| Length (mm) | 406.4 |
| Length (in) | 16.000 |
| Width (mm) | 177.8 |
| Width (in) | 7.000 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R01: 200mm Bolt Circle |
| Robot Interface Thru Holes (qty/size) (mm) | (6) 12.5 |
| Robot Interface Dowel Holes (qty/size) (mm) | (2) 12 |
| Maximum Static Product Load (Nm) | 350 |
| Maximum Static Product Load (ft lb) | 258 |
| Product Type | Mid Mount |
| Tube Size | 45B |
| Weight (kg) | 5.05 |
| Weight (lb) | 11.10 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
