Brand: DESTACO

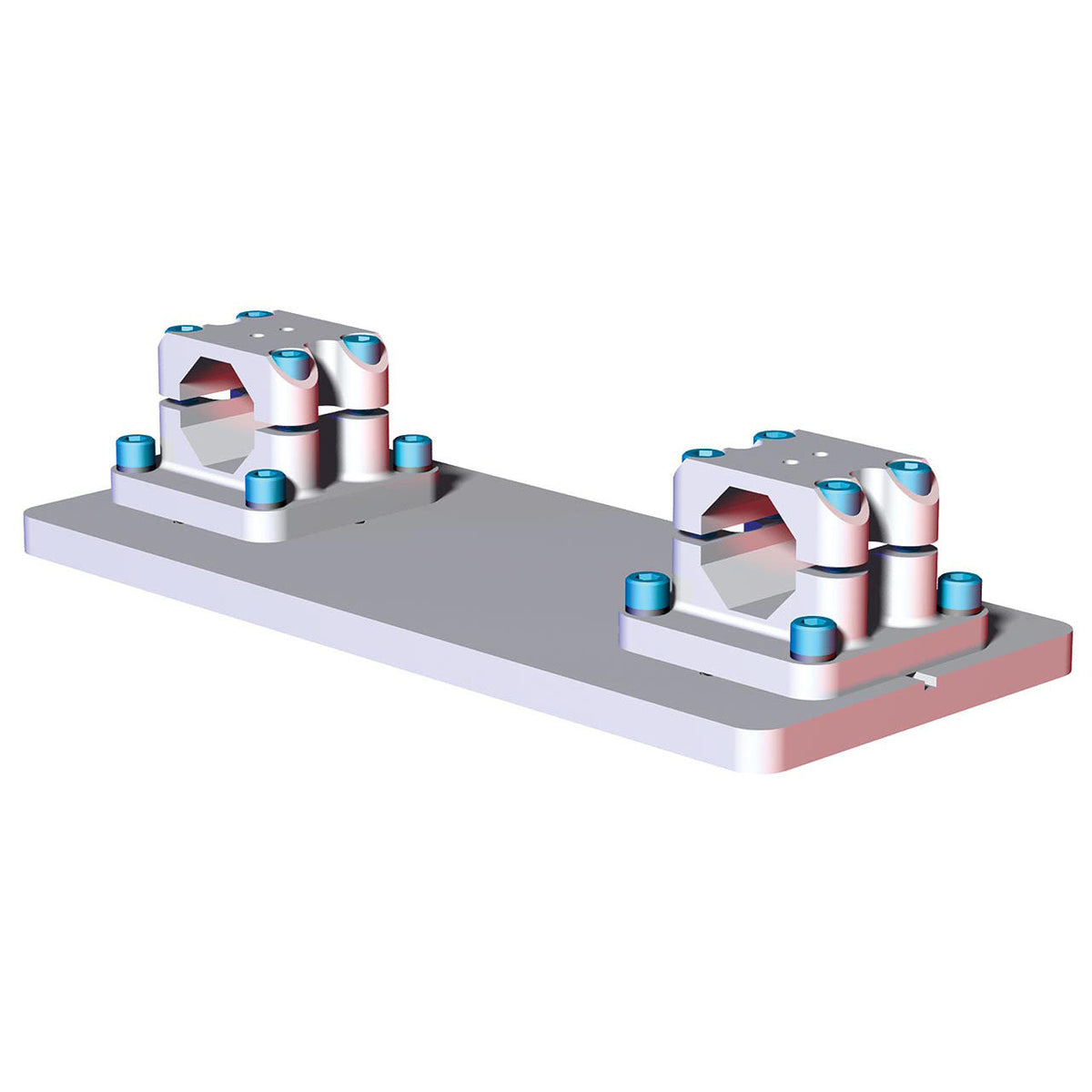

DESTACO BM1-45-DE-R14 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R14
SKU: DE-STA-CO-BM1-45-DE-R14
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO BM1-45-DE-R14 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R14, the ultimate catalog for high-performance automation, workholding, and containment solutions. This powerhouse mounts two 45mm extrusion booms in parallel, providing unbeatable precision and strength. Designed with the Robot Interface Bolt Pattern R14, this assembly boasts a 200mm Bolt Circle, 125mm Pilot, and 11mm Deep Tube Diameter, making it a perfect fit for your automation needs. Made with durable and lightweight aluminum, this mid mount ensures maximum stability and efficiency. With a maximum static product load of 350 Nm (or 258 ft lbs), you can trust in this product to deliver unmatched performance. Upgrade your operations with the DESTACO BM1-45-DE-R14 and experience the difference.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM1-45-DE-R14 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R14
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts two 45mm extrusion booms parallel with the two mounts.
- Robot Interface Bolt Pattern R14: 200mm Bolt Circle, 125mm Pilot, 11 mm Deep
Tube Diameter (mm) | 45 |
Tube Diameter (in) | 1.77 |
Length (mm) | 406.4 |
Length (in) | 16.000 |
Width (mm) | 177.8 |
Width (in) | 7.000 |
Material | Aluminum |
Robot Interface Bolt Pattern | R14: 200mm Bolt Circle, 125mm Pilot, 11 mm Deep |
Robot Interface Thru Holes (qty/size) (mm) | (6) 13 |
Robot Interface Dowel Holes (qty/size) (mm) | (2) 12 |
Maximum Static Product Load (Nm) | 350 |
Maximum Static Product Load (ft lb) | 258 |
Product Type | Mid Mount |
Tube Size | 45B |
Weight (kg) | 5.05 |
Weight (lb) | 11.10 |
Product Series Description | Automation Adapter |
Product Function | Robotic Tooling |
Product Family | End Effectors |
Product Group | bodybuilder end effector |
