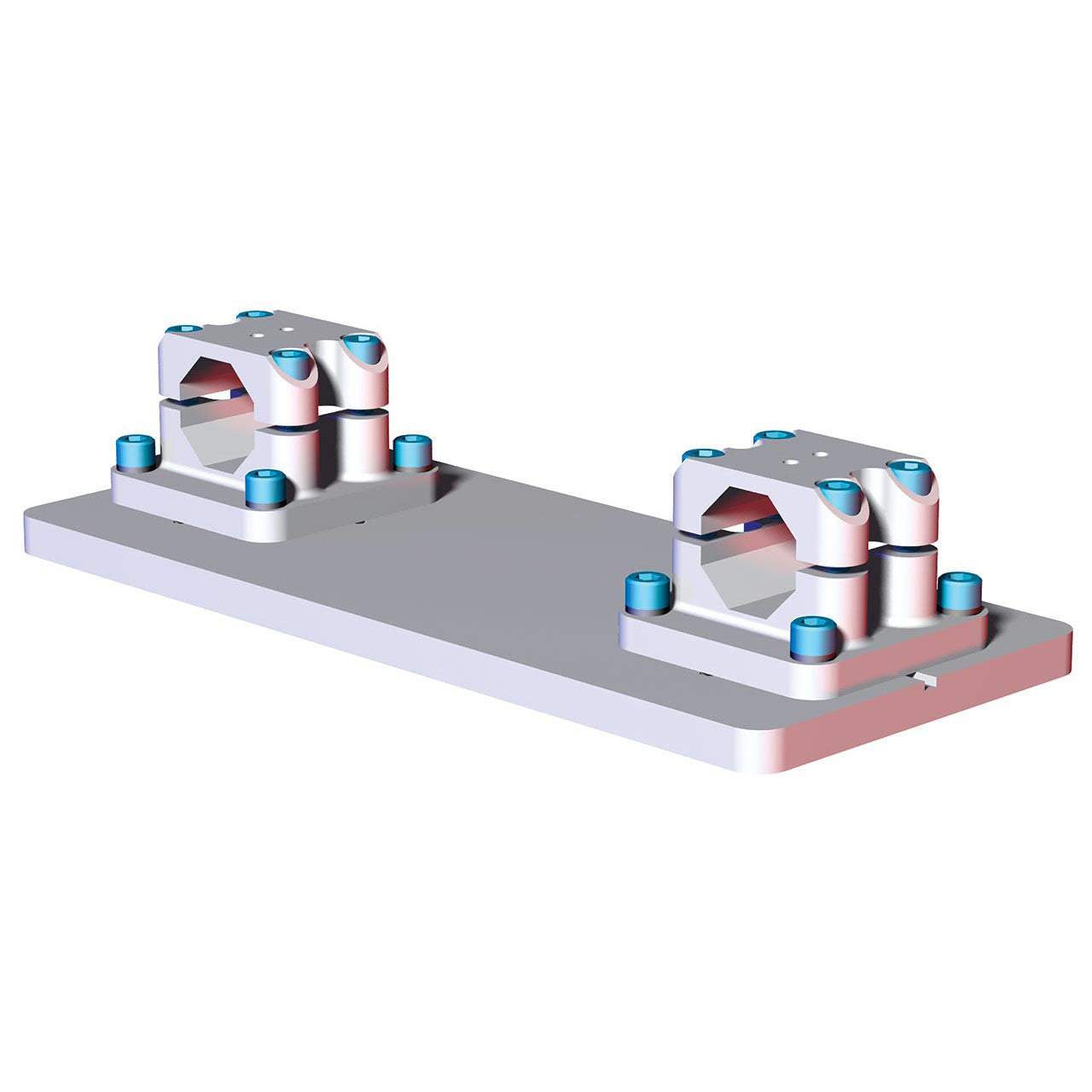

DESTACO BM1-45-DE-R13 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R13

Brand: DESTACO

DESTACO BM1-45-DE-R13 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R13

SKU: DE-STA-CO-BM1-45-DE-R13
MPN: BM1-45-DE-R13

  • $1,092.66
    Unit price per
  • Save $126.31
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Enhance the capabilities of your robotic end effectors with the DESTACO BM1-45-DE-R13 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R13. This mid-mount assembly perfectly aligns two 45mm extrusion booms, allowing for maximum efficiency and precision. With a sturdy and lightweight aluminum construction coupled with a maximum static product load of 350 Nm, this mid mount provides the ideal solution for your production needs. Experience enhanced performance and flexibility with the 45B tube size and various bolt patterns included in the design. Upgrade your automation setup with this powerful mid-mount assembly today!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO BM1-45-DE-R13 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R13

BodyBuilder Mid-Mounts with Hole Patterns for Extrusion Clamping - Robotic End Effectors

  • Mounts two 45mm extrusion booms parallel with the two mounts.
  • Robot Interface Bolt Pattern R13: 125/160 bolt Circle, 110 mm Pilot, 5.5mm deep
Tube Diameter (mm) 45
Tube Diameter (in) 1.77
Length (mm) 406.4
Length (in) 16.000
Width (mm) 177.8
Width (in) 7.000
Material Aluminum
Robot Interface Bolt Pattern R13: 125/160 bolt Circle, 110 mm Pilot, 5.5mm deep
Robot Interface Thru Holes (qty/size) (mm) (6) 11 on 160mm BC, (6) 11 on 125 BC
Robot Interface Dowel Holes (qty/size) (mm) (2) 10 on 125mm BC, (2) 10 on 160mm BC
Maximum Static Product Load (Nm) 350
Maximum Static Product Load (ft lb) 258
Product Type Mid Mount
Tube Size 45B
Weight (kg) 5.05
Weight (lb) 11.10
Product Series Description Automation Adapter
Product Function Robotic Tooling
Product Family End Effectors
Product Group bodybuilder end effector
