Brand: DESTACO

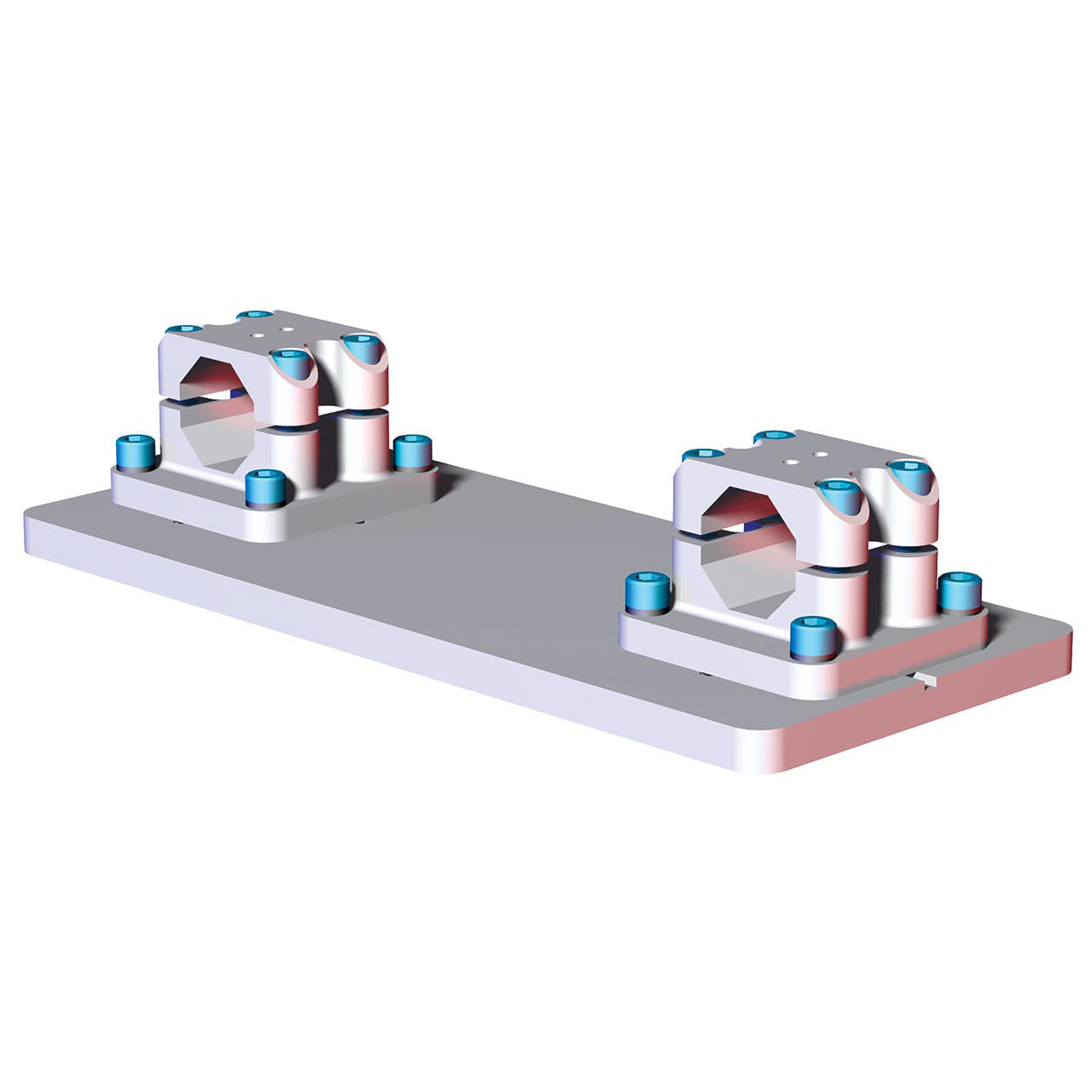

DESTACO BM1-45-DE-R12 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R12 - W/ INSULATION
SKU: DE-STA-CO-BM1-45-DE-R12
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience unmatched performance with the DESTACO BM1-45-DE-R12 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R12 - W/ INSULATION. Mount two 45mm extrusion booms parallel and enhance your automation, workholding, and containment solutions with this high-performance catalog. Featuring a 160mm bolt circle and insulation tube diameter of 45mm, this assembly is designed for maximum efficiency and reliability. With a maximum static product load of 350 Nm (258 ft lb), this mid mount tube is the perfect choice for your needs. Trust in the durable and lightweight aluminum material and easily connect to your robot with the Robot Interface Bolt Pattern R12. Elevate your projects with the DESTACO BM1-45-DE-R12 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R12 - W/ INSULATION.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM1-45-DE-R12 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R12 - W/ INSULATION
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts two 45mm extrusion booms parallel with the two mounts.
- Robot Interface Bolt Pattern R12: 160mm Bolt Circle, Includes Insulation
| Tube Diameter (mm) | 45 |
| Tube Diameter (in) | 1.77 |
| Length (mm) | 406.4 |
| Length (in) | 16.000 |
| Width (mm) | 177.8 |
| Width (in) | 7.000 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R12: 160mm Bolt Circle, Includes Insulation |
| Robot Interface Thru Holes (qty/size) (mm) | (12) 13 |
| Maximum Static Product Load (Nm) | 350 |
| Maximum Static Product Load (ft lb) | 258 |
| Product Type | Mid Mount |
| Tube Size | 45B |
| Weight (kg) | 5.05 |
| Weight (lb) | 11.10 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
