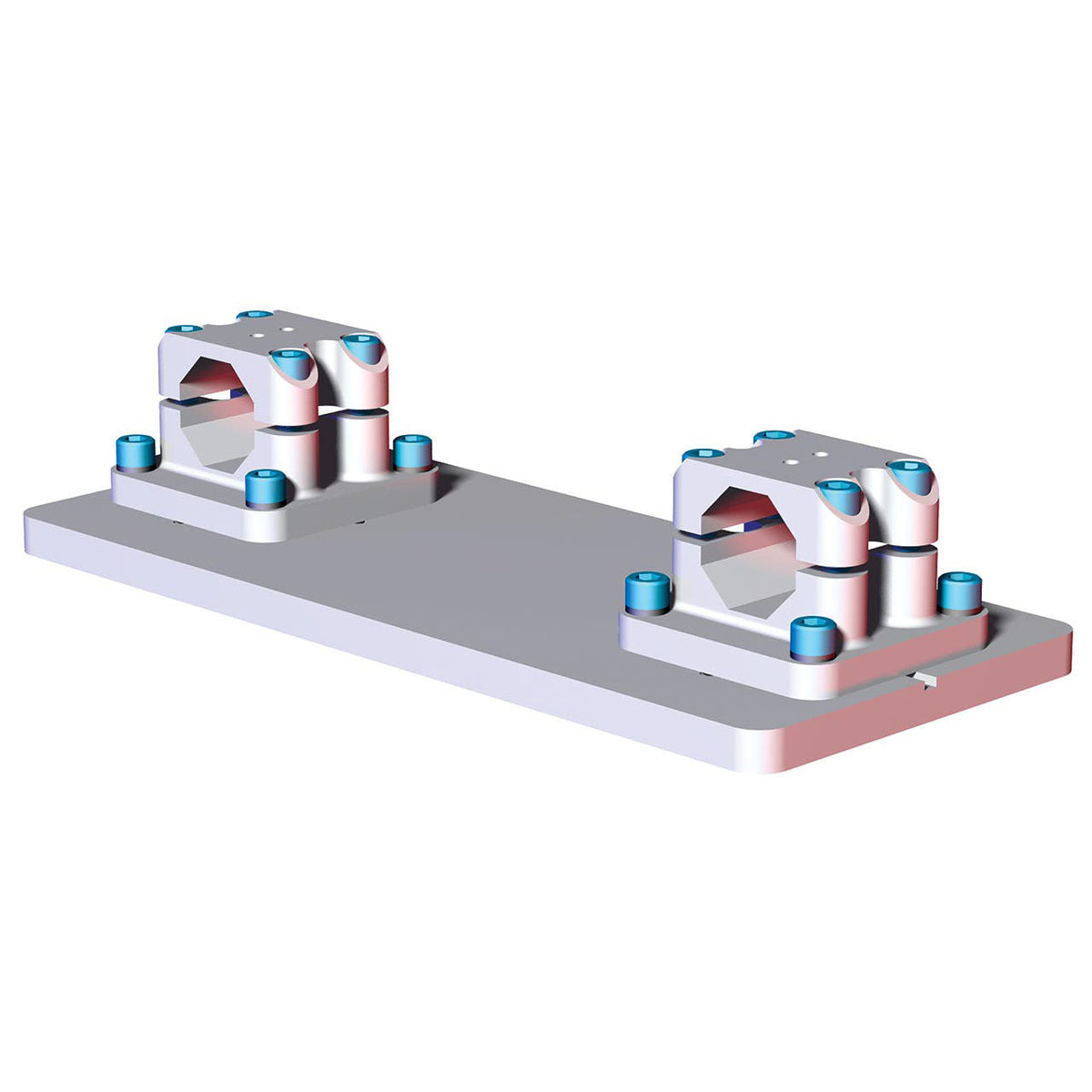

DESTACO BM1-45-DE-R10 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R10 - W/ ADAPTER PLATE

Brand: DESTACO

DESTACO BM1-45-DE-R10 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R10 - W/ ADAPTER PLATE

SKU: DE-STA-CO-BM1-45-DE-R10
MPN: BM1-45-DE-R10

  • $1,092.66
    Unit price per
  • Save $126.31
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Embodying the ethos of excellence and innovation, the DESTACO BM1-45-DE-R10 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY offers unparalleled performance and reliability for all your automation, workholding, and containment needs. Equipped with a 45B tube, this product effortlessly mounts two extrusion booms parallel to the two mounts, ensuring seamless operation and maximum productivity. With a sturdy aluminum construction and a maximum static product load of 350Nm (258ft lb), this mid mount assembly is built to withstand even the most rigorous of demands. Its Robot Interface Bolt Pattern R10 features a 200mm bolt circle, (6) 12.5mm thru holes, and (2) 12mm dowel holes, providing a secure and stable connection to your robot. Revolutionize your industrial processes with the DESTACO BM1-45-DE-R10 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO BM1-45-DE-R10 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R10 - W/ ADAPTER PLATE

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

  • Mounts two 45mm extrusion booms parallel with the two mounts.
  • Robot Interface Bolt Pattern R10: 200mm Bolt Circle

Tube Diameter (mm) 45
Tube Diameter (in) 1.77
Length (mm) 406.4
Length (in) 16.000
Width (mm) 177.8
Width (in) 7.000
Material Aluminum
Robot Interface Bolt Pattern R10: 200mm Bolt Circle
Robot Interface Thru Holes (qty/size) (mm) (6) 12.5
Robot Interface Dowel Holes (qty/size) (mm) (2) 12
Maximum Static Product Load (Nm) 350
Maximum Static Product Load (ft lb) 258
Product Type Mid Mount
Tube Size 45B
Weight (kg) 5.05
Weight (lb) 11.10
Product Series Description Automation Adapter
Product Function Robotic Tooling
Product Family End Effectors
Product Group bodybuilder end effector
