Brand: DESTACO

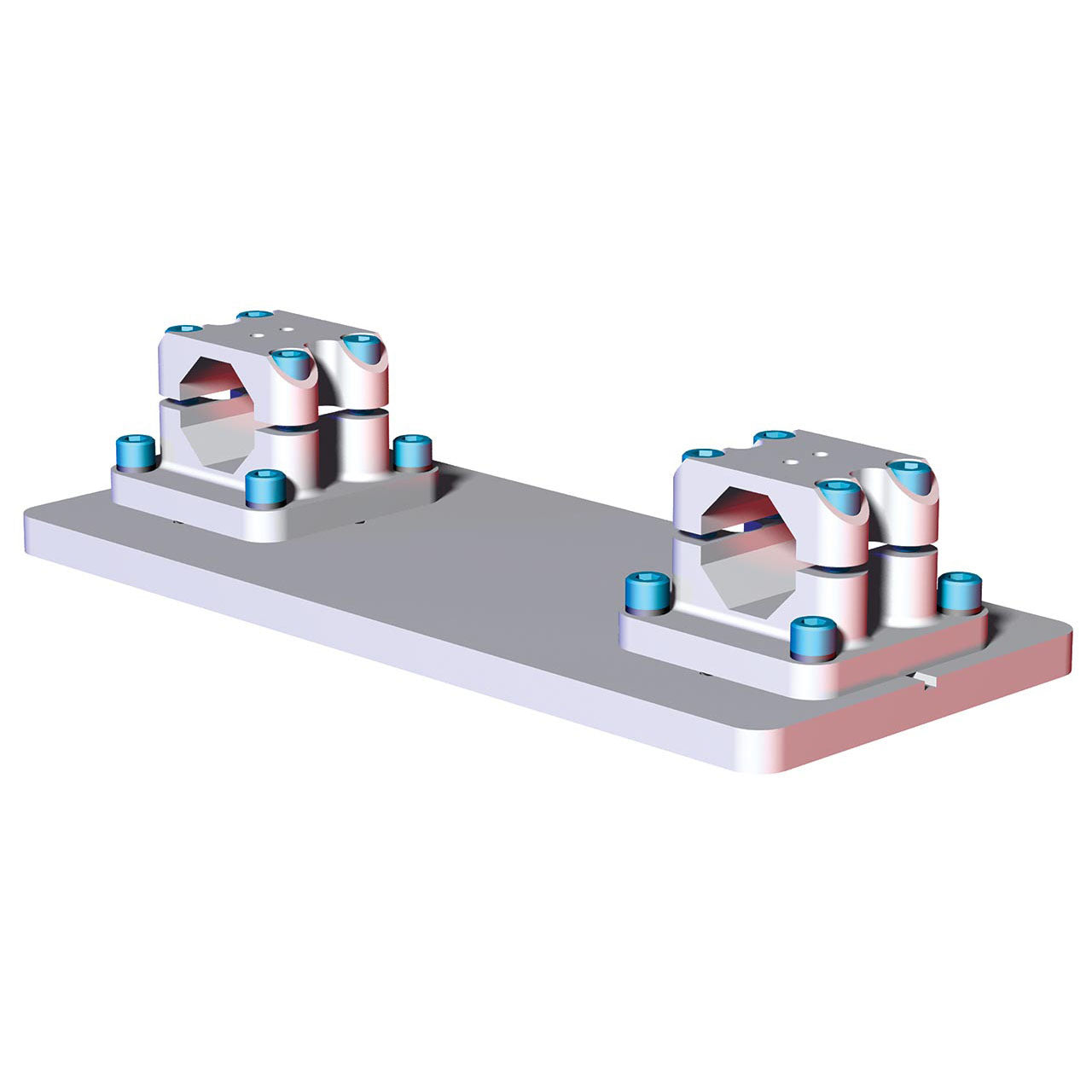

DESTACO BM1-45-DE-R09 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R09 - W/ INSULATION AND W/ ADAPTER PLATE
SKU: DE-STA-CO-BM1-45-DE-R09
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Strengthen your robotic end effectors with the awe-inspiring DESTACO BM1-45-DE-R09 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R09 - W/ INSULATION AND W/ ADAPTER PLATE. Constructed with high-quality aluminum, this mid-mount assembly boasts two parallel 45mm extrusion booms, held securely in place by the included insulation and adapter plate. The impressive 406.4mm length and 177.8mm width provide a sturdy base for your robot interface, featuring a convenient bolt pattern of 200mm and multiple holes for easy installation. With a maximum static product load of 350Nm, this mid-mount is a game changer for any 45mm tube size. Upgrade to the BM1-45-DE-R09 and revolutionize your productivity today!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM1-45-DE-R09 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R09 - W/ INSULATION AND W/ ADAPTER PLATE
BodyBuilder Mid-Mounts with Hole Patterns for Extrusion Clamping - Robotic End Effectors
- Mounts two 45mm extrusion booms parallel with the two mounts.
- Robot Interface Bolt Pattern R09: 200mm Bolt Circle, Includes Insulation
| Tube Diameter (mm) | 45 |
| Tube Diameter (in) | 1.77 |
| Length (mm) | 406.4 |
| Length (in) | 16.000 |
| Width (mm) | 177.8 |
| Width (in) | 7.000 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R09: 200mm Bolt Circle, Includes Insulation |
| Robot Interface Thru Holes (qty/size) (mm) | (6) 20 |
| Robot Interface Dowel Holes (qty/size) (mm) | (2) 15 |
| Maximum Static Product Load (Nm) | 350 |
| Maximum Static Product Load (ft lb) | 258 |
| Product Type | Mid Mount |
| Tube Size | 45B |
| Weight (kg) | 5.05 |
| Weight (lb) | 11.10 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
