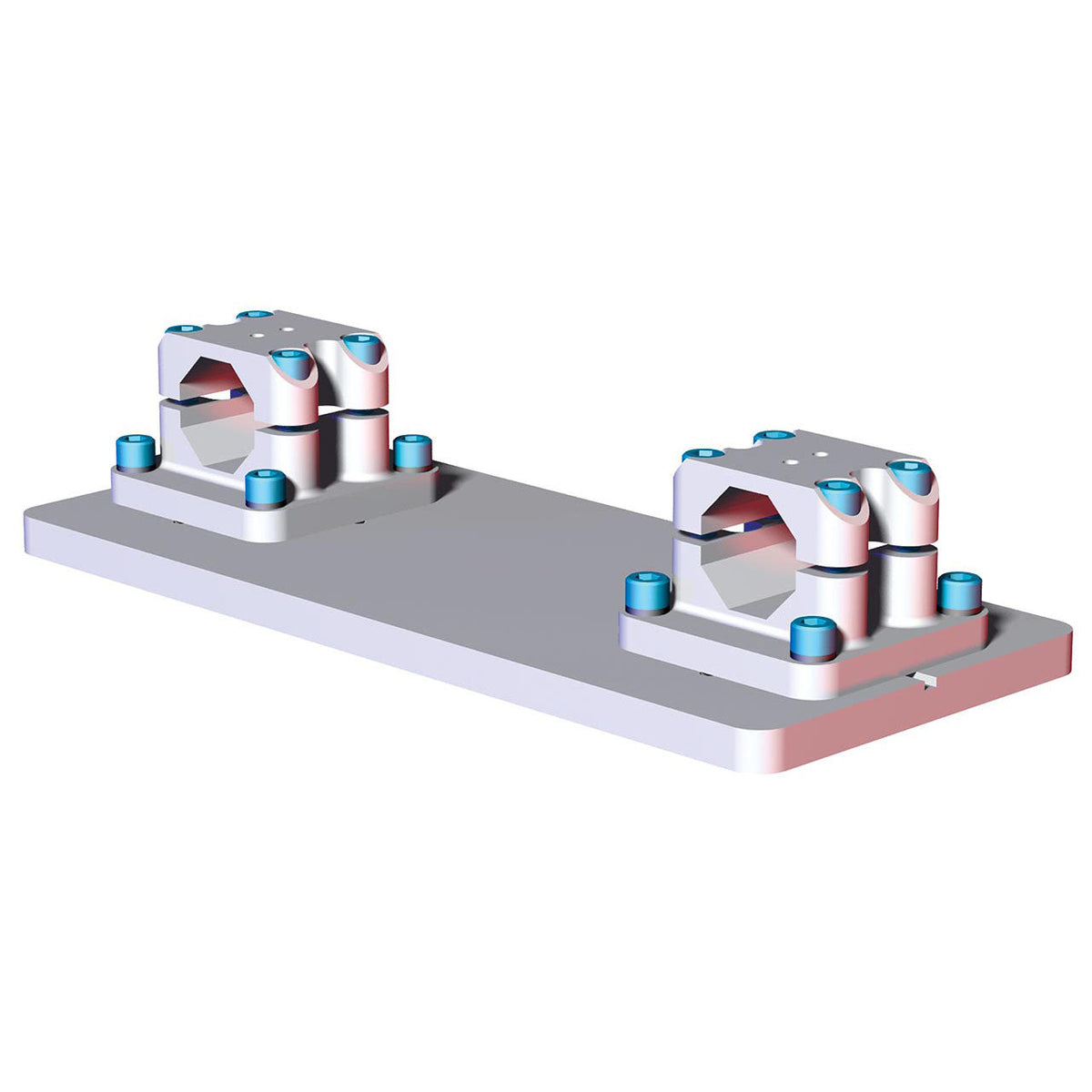

DESTACO BM1-45-DE-R06 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R06

Brand: DESTACO

DESTACO BM1-45-DE-R06 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R06

SKU: DE-STA-CO-BM1-45-DE-R06
MPN: BM1-45-DE-R06

  • Save $126.31
Shipping calculated at checkout.
Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Introducing the DESTACO BM1-45-DE-R06 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R06, a powerful and versatile solution for high-performance automation, workholding, and containment. This catalog showcases the innovative design that allows for two 45mm extrusion booms to be mounted parallel with the two mounts. With its R06: 160mm bolt circle robot interface, 160mm BC robot interface thru holes, and 125mm BC robot interface dowel holes, this assembly offers impressive stability and precision. Made of lightweight yet durable aluminum, it can handle a maximum static product load of 350 Nm (258 ft lb). Elevate your automation game with the DESTACO BM1-45-DE-R06.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO BM1-45-DE-R06 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R06

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

  • Mounts two 45mm extrusion booms parallel with the two mounts.
  • Robot Interface Bolt Pattern R06: 160mm Bolt Circle
Tube Diameter (mm) 45
Tube Diameter (in) 1.77
Length (mm) 406.4
Length (in) 16.000
Width (mm) 177.8
Width (in) 7.000
Material Aluminum
Robot Interface Bolt Pattern R06: 160mm Bolt Circle
Robot Interface Thru Holes (qty/size) (mm) (8) 12.5 on 160mm BC
Robot Interface Dowel Holes (qty/size) (mm) (2) 10 on 125mm BC
Maximum Static Product Load (Nm) 350
Maximum Static Product Load (ft lb) 258
Product Type Mid Mount
Tube Size 45B
Weight (kg) 5.05
Weight (lb) 11.10
Product Series Description Automation Adapter
Product Function Robotic Tooling
Product Family End Effectors
Product Group bodybuilder end effector
