Brand: DESTACO

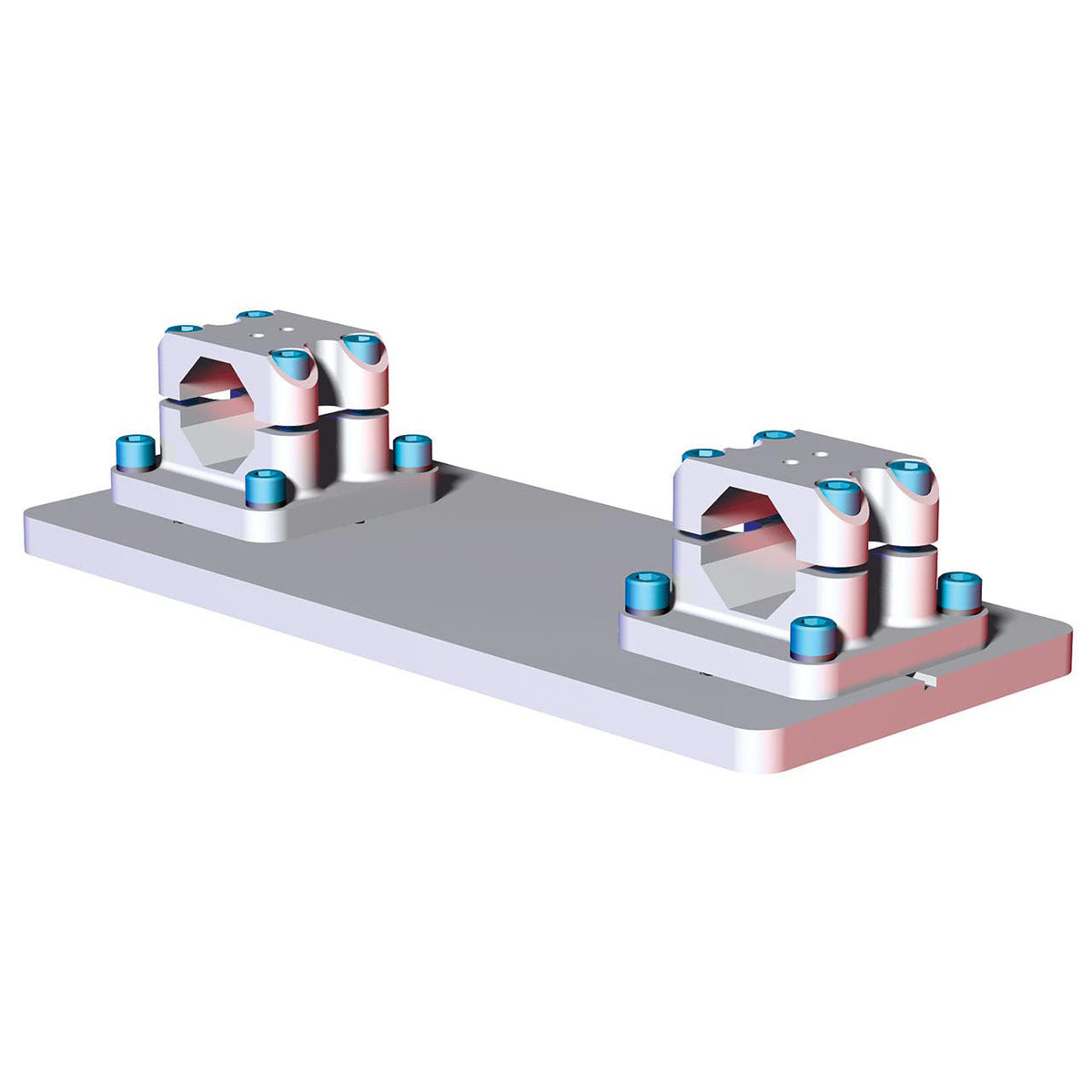

DESTACO BM1-45-DE-R05 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R05 - W/ INSULATION

SKU: DE-STA-CO-BM1-45-DE-R05
MPN: BM1-45-DE-R05

$1,289.85
Unit price per
Save $149.11

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Discover the powerful capabilities of the DESTACO BM1-45-DE-R05 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R05 - W/ INSULATION. This versatile product allows for the parallel mounting of two 45mm extrusion booms, with a sturdy construction and a 125mm bolt circle for easy installation. With a tube diameter of 45mm and a length of 16.000 inches, this mid mount assembly is perfect for high-performance automation, workholding, and containment solutions. Don't miss out on the opportunity to improve your productivity and efficiency with this top-of-the-line product from DESTACO.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO BM1-45-DE-R05 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R05 - W/ INSULATION

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Mounts two 45mm extrusion booms parallel with the two mounts.
Robot Interface Bolt Pattern R05: 125mm Bolt Circle, Includes Insulation

Tube Diameter (mm)	45
Tube Diameter (in)	1.77
Length (mm)	406.4
Length (in)	16.000
Width (mm)	177.8
Width (in)	7.000
Material	Aluminum
Robot Interface Bolt Pattern	R05: 125mm Bolt Circle, Includes Insulation
Robot Interface Thru Holes (qty/size) (mm)	(12) 13
Maximum Static Product Load (Nm)	350
Maximum Static Product Load (ft lb)	258
Product Type	Mid Mount
Tube Size	45B
Weight (kg)	5.05
Weight (lb)	11.10
Product Series Description	Automation Adapter
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	bodybuilder end effector
