Brand: DESTACO

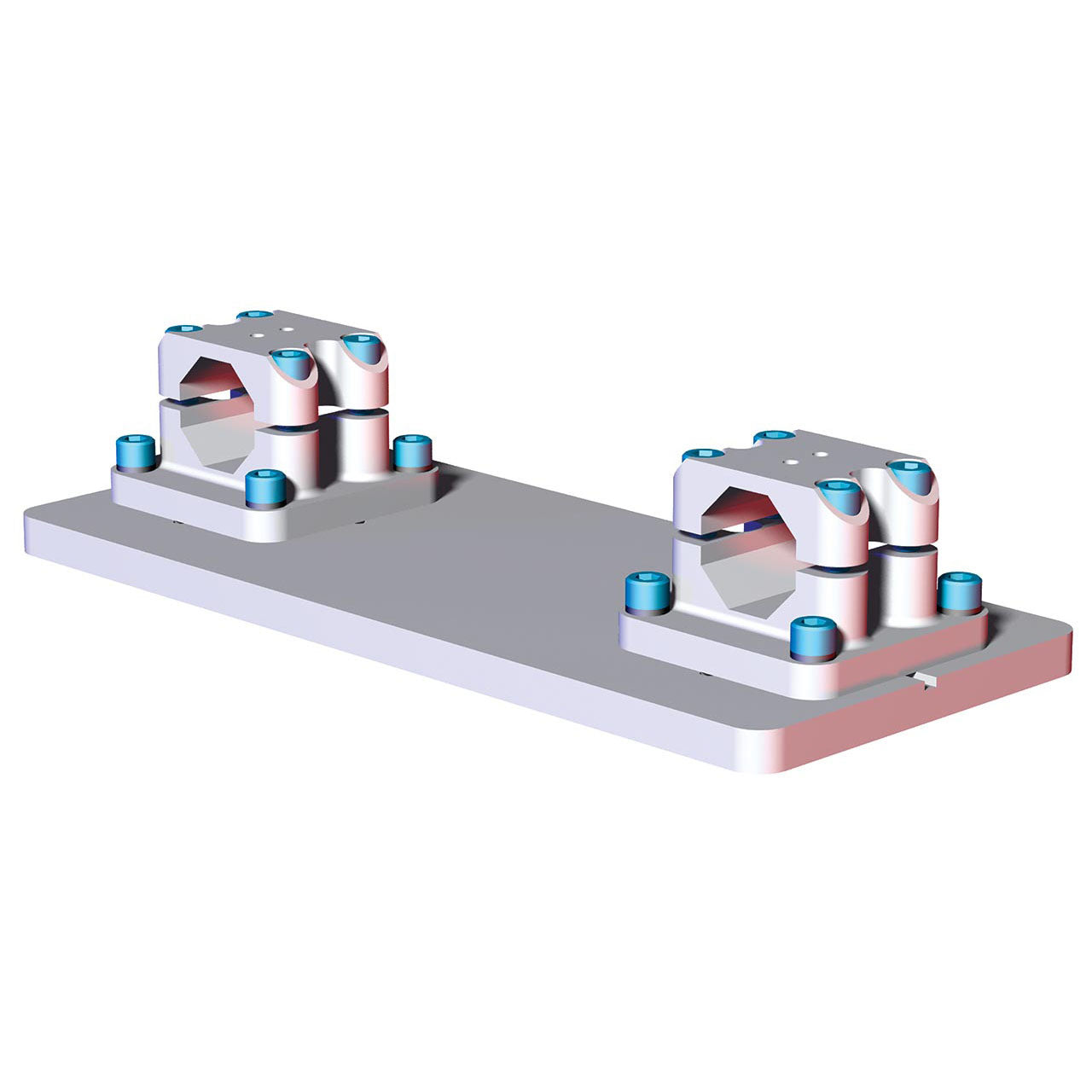

DESTACO BM1-45-DE-R03 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R03 - W/ INSULATION
SKU: DE-STA-CO-BM1-45-DE-R03
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Promote high-performance automation, workholding, and containment solutions with the DESTACO BM1-45-DE-R03 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R03 - W/ INSULATION. This impressive product catalog features a parallel mounting design for two 45mm extrusion booms, along with a 160mm bolt circle and insulation tube diameter of 45mm. With a durable aluminum material and a maximum static product load of 350Nm, this mid mount tube is sure to impress. Join the countless satisfied customers and revolutionize your automation processes with DESTACO!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO BM1-45-DE-R03 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R03 - W/ INSULATION
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
- Mounts two 45mm extrusion booms parallel with the two mounts.
- Robot Interface Bolt Pattern R03: 160mm Bolt Circle, Includes Insulation
| Tube Diameter (mm) | 45 |
| Tube Diameter (in) | 1.77 |
| Length (mm) | 406.4 |
| Length (in) | 16.000 |
| Width (mm) | 177.8 |
| Width (in) | 7.000 |
| Material | Aluminum |
| Robot Interface Bolt Pattern | R03: 160mm Bolt Circle, Includes Insulation |
| Robot Interface Thru Holes (qty/size) (mm) | (8) 14 |
| Robot Interface Dowel Holes (qty/size) (mm) | (4) 13 |
| Maximum Static Product Load (Nm) | 350 |
| Maximum Static Product Load (ft lb) | 258 |
| Product Type | Mid Mount |
| Tube Size | 45B |
| Weight (kg) | 5.05 |
| Weight (lb) | 11.10 |
| Product Series Description | Automation Adapter |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | bodybuilder end effector |
