Brand: DESTACO

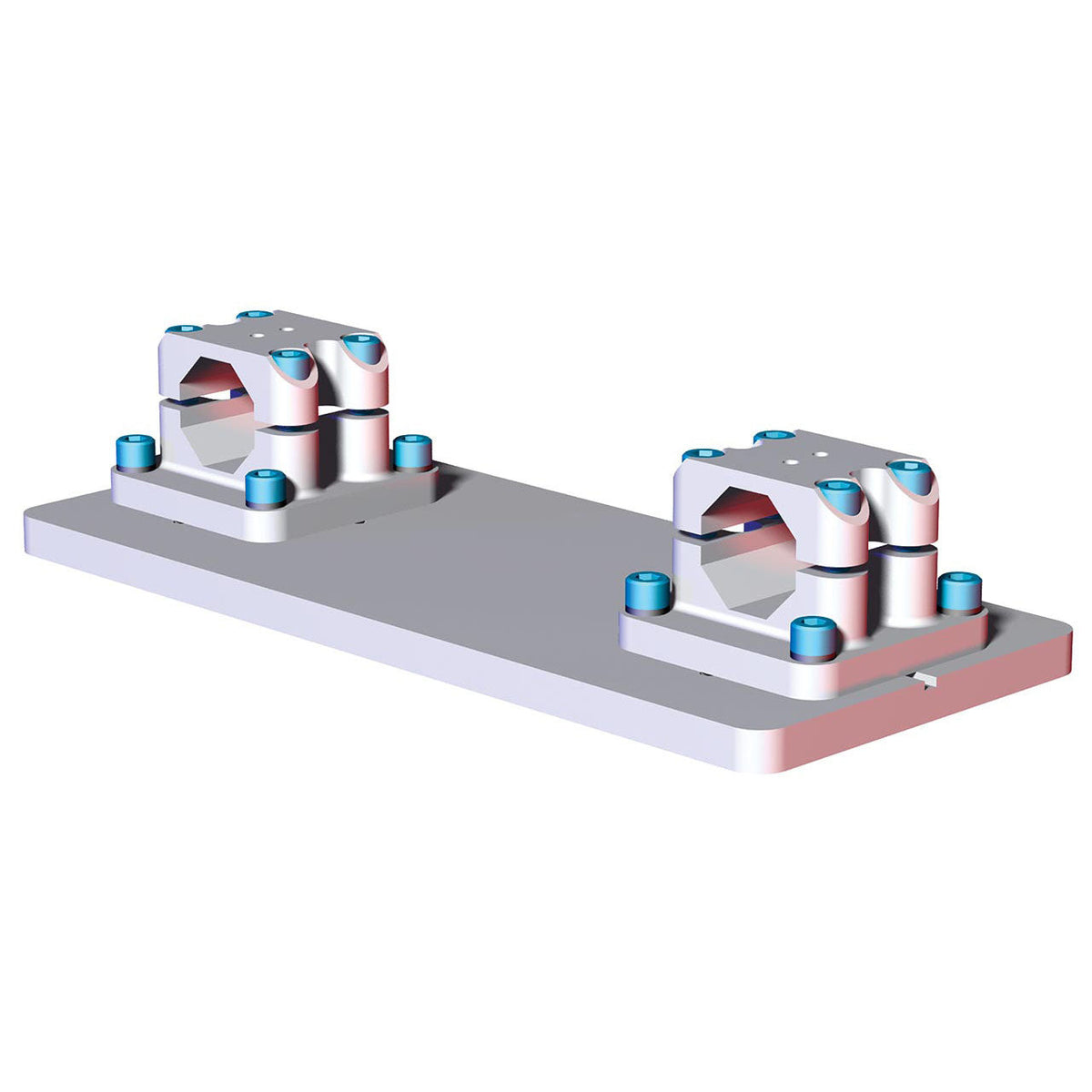

DESTACO BM1-45-DE-R02 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R02

SKU: DE-STA-CO-BM1-45-DE-R02
MPN: BM1-45-DE-R02

$1,071.23
Unit price per
Save $123.84

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

DESTACO BM1-45-DE-R02 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R02
Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO BM1-45-DE-R02 45MM DOUBLE EXTRUSION MID MOUNT ASSEMBLY - R02

Catalog for High-Performance Automation, Workholding, & Containment Solutions - Destaco

Mounts two 45mm extrusion booms parallel with the two mounts.
Robot Interface Bolt Pattern R02: 125mm Bolt Circle

Tube Diameter (mm)	45
Tube Diameter (in)	1.77
Length (mm)	406.4
Length (in)	16.000
Width (mm)	177.8
Width (in)	7.000
Material	Aluminum
Robot Interface Bolt Pattern	R02: 125mm Bolt Circle
Robot Interface Thru Holes (qty/size) (mm)	(10) 11
Robot Interface Dowel Holes (qty/size) (mm)	(2) 10
Maximum Static Product Load (Nm)	350
Maximum Static Product Load (ft lb)	258
Product Type	Mid Mount
Tube Size	45B
Weight (kg)	5.05
Weight (lb)	11.10
Product Series Description	Automation Adapter
Product Function	Robotic Tooling
Product Family	End Effectors
Product Group	bodybuilder end effector
