Brand: DESTACO

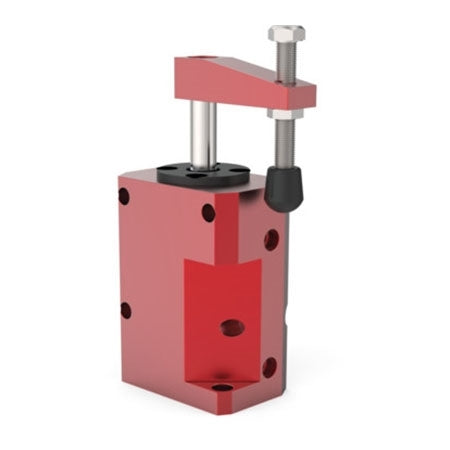

DESTACO 8315 R.H. PNEUMATIC SWING CYLINDER
SKU: DE-STA-CO-8315
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the power and versatility of the DESTACO 8315 R.H. PNEUMATIC SWING CYLINDER - the perfect solution for a wide range of applications, including welding and assembly. Its innovative block style body allows for flexible mounting options, while the magnetic ring piston ensures precise positioning. Whether you need a sensor-ready or clamping arm version, we have you covered. And with a powerful 1.250 inch stroke and 1.5 inch cylinder bore, you can count on a clamping force of 67 lbf. at 5Bar[72Psi]. Choose top or side mount and get ready to take your projects to the next level!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 8315 R.H. PNEUMATIC SWING CYLINDER
Product Details
These proven, reliable designs are useful in a wide variety of applications including welding and assembly. The block style bodies can be mounted from the top or side for maximum flexibility. All models feature a magnetic ring piston for position sens
- Sensor ready
- Clamping arm and spindle included. Available without clamping arm, specify -LA
- Right-hand swing
| Stroke (in) | 1.250 |
| Cylinder Bore (in) | 1.5 |
| Clamping Force @ 5Bar[72Psi] (lbf.) | 67 |
| Mount | Block style - side or top mount |
| Replacement Seal Kit | 821560 |
| Swing Direction | RH |
| Air Port size | 3/8-16 |
| Air Consumption (per double stroke at 7 psi) (in³) | 0.014 |
| Stroke during rotation (in) | 0.75 |
| Vertical clamp stroke (in) | 0.50 |
| Sensor Ready | Yes |
| Weight (lb) | 2.00 |
| Product Series Description | Swing Clamp |
| Product Function | Clamping |
| Product Family | Light-Duty Pneumatic Clamping |
| Product Group | pneumatic swing clamps |
