Brand: DESTACO

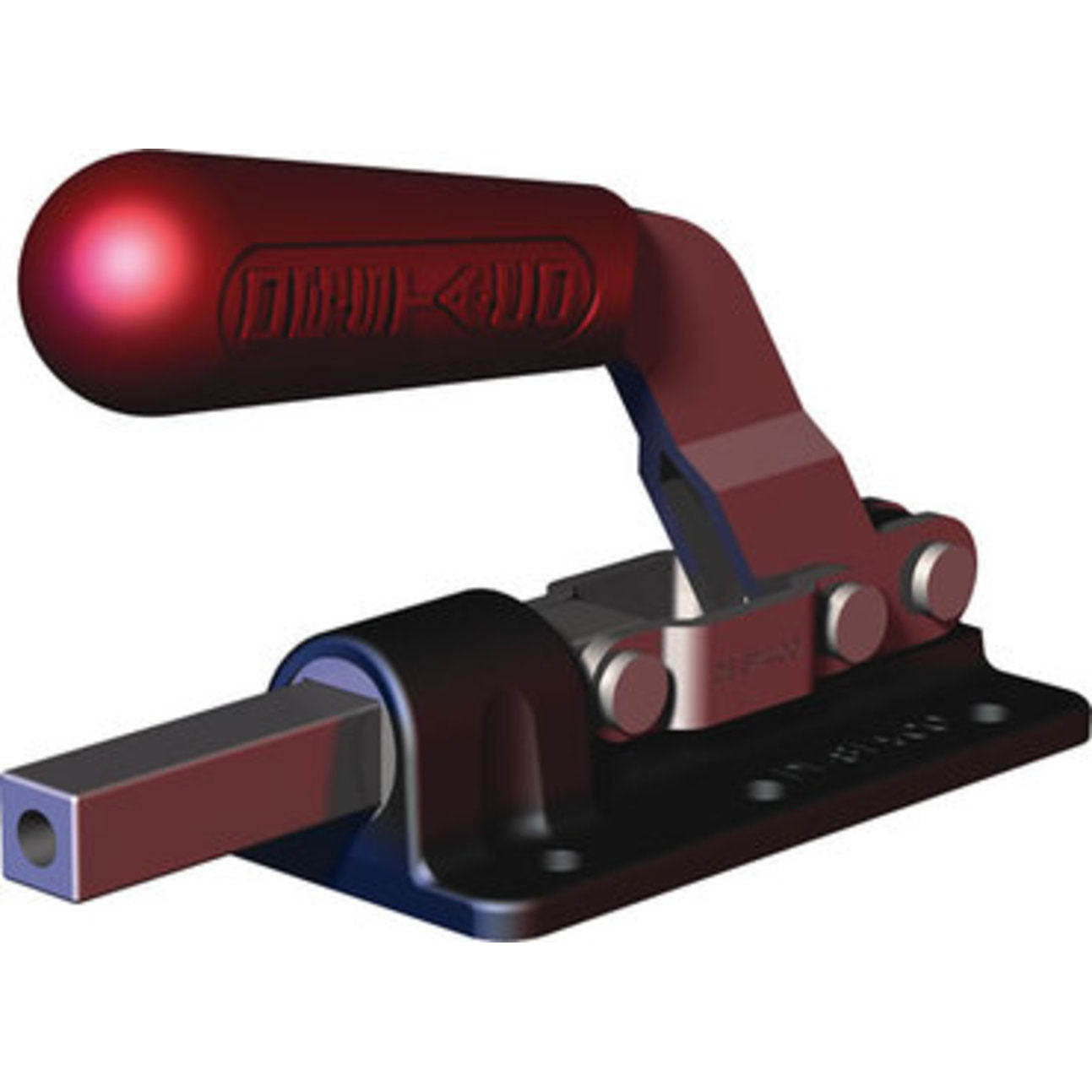

DESTACO 607-SQ CLAMP STRAIGHT-LINE ACTION
SKU: DE-STA-CO-607-SQ
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Featuring a compact size that boasts a high holding capacity, the DESTACO 607-SQ STRAIGHT-LINE ACTION IMPERIAL TOGGLE CLAMP is a must-have for any project. This low profile clamp features a square plunger that can be locked in both extended and retracted positions, making it extremely versatile. With a maximum holding capacity of 800 lbsf and a plunger travel of 1.63 inches, this steel clamp is designed to meet all your needs. Plus, with an exerting force ratio of 37:1/64:1 and a 5/16-18 standard plunger thread, achieving your desired results has never been easier.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 607-SQ CLAMP STRAIGHT-LINE ACTION
Compact size yields a large holding capacity
- Low profile
- Square plunger
- Locks in both extended and retracted position
Product | Imperial |
Maximum Holding Capacity (lbsf) | 800 |
Plunger Travel (in) | 1.63 |
Plunger Height (in) | 0.690 |
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 37:1/64:1 |
Plunger Thread | 5/16-18 |
Standard Material | Steel |
Toggle Lock Plus | No |
Base Mounting Style | Flange |
Plunger | Square |
Spindle (Recommended) | 207203 |
Spindle Included? | No |
Preferred Market | NA/SA |
Product Type | Standard |
Weight (lb) | 1.63 |
Product Series Description | Straight Line Action Clamp |
Product Function | Clamping |
Product Family | Manual Clamping |
Product Group | Straight-line Action Clamps |
