Brand: DESTACO

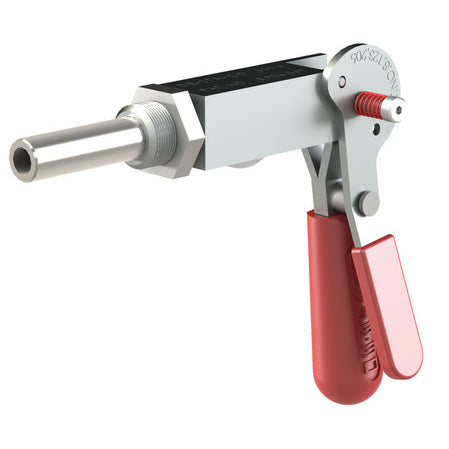

DESTACO 6024-RSS - 6024 STAINLESS STEEL CLAMPS STRAIGHT LINE ACTION WITH TOGGLE-LOCK PLUS
SKU: DE-STA-CO-6024-RSS
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
The Destaco 6024-RSS Straight Line Action Clamps from the 6000 Series offer robust clamping solutions with a toggle lock plus feature, specifically designed for applications requiring stainless steel construction. With a weight of 3.53 lb (1.6 kg) and a maximum holding capacity of 2100.0 lbf (9340.0 N), these clamps ensure reliable and secure clamping operations. They feature a plunger travel of 2.6 inches (66.0 mm), suitable for a variety of industrial applications. They come with a round plunger and a plunger thread of 3/8-16. The exerting force ratio is 21:1, enabling efficient clamping with minimal effort. Additionally, the toggle lock plus feature provides added security during clamping operations. These clamps are constructed from standard stainless steel material, ensuring durability and resistance to corrosion. They are suitable for manual, power, and hydraulic clamp applications. The base mounting style is flange, providing flexibility in installation. With their stainless steel construction and advanced features, the Destaco 6024-RSS Straight Line Action Clamps offer reliable and efficient clamping solutions for various industrial needs.
Weight (lb) | 3.53 |
Maximum Holding Capacity (lbf) | 2100.0 |
Plunger Travel (in) | 2.6 |
Weight (kg) | 1.6 |
Imperial or Metric Product | Imperial |
Maximum Holding Capacity (N) | 9340.0 |
Plunger Travel (mm) | 66.0 |
Spindle (Recommended) | 237943 |
Product Series | 6024 |
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 21:1 |
Standard Material | Stainless Steel |
Product Function | Clamping |
Plunger Thread | 3/8-16 |
Toggle Lock Plus | Yes |
Product Type | Threaded Body |
DistributorGroup | Workholding (Manual, Power and Hydraulic Clamps) |
Base Mounting Style | Flange |
product_status(Possible Values : Active, Legacy, No Series) | Active |
Plunger | Round |
Spindle Included? | No |
Mounting Nut (Supplied) | 624905 |
